Circuit Abbey Unify, USED

Not yet rated | Create your own review
$ 199.00 Total

Stereo Mixer/Final Stage Output

Available Immediately
Product number:
CV1579
Quantity:
Add to cart

This item is used, has been fully tested and is guaranteed to be working.

Stereo Mixer/Final Stage Output

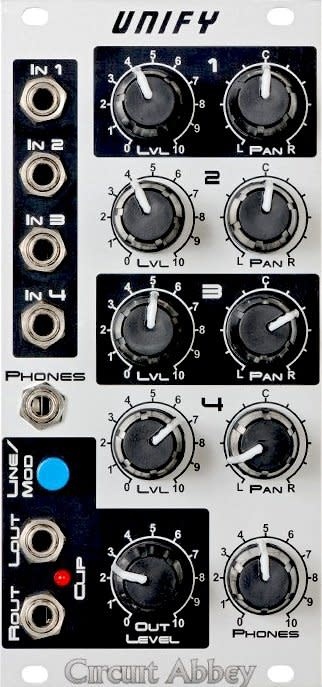

The Unify is a 4-channel stereo mixer with selectable line or module level output and separate headphone output. The 4 input channels are module level with audio-taper level pots and constant-power pan pots. The output can be either line or module level, so this module can be an output mixer or a utility mixer. The headphone output has a separate level pot. There a clip LED to indicate overloads. The Unify uses high performance LM4562 amplifiers which have excellent noise and distortion specs. One of the best amplifiers available today. The Unify also boasts sealed pots and enclosed jacks. No scratchy controls!

Inputs
• Audio In (x 4)

Outputs
• Stereo Headphones (3.5mm)
• Dual Mono (3.5mm)

Controls
• Channel Level (x 4)
• Channel Pan (x 4)
• Headphone Level
• Out Level

Physical Specifications
• Format: Eurorack
• Width: 12HP
• Depth: 1"

Electrical Specifications
• Power: -/+12V @ 50mA

In the Box
• The module itself
• Eurorack Power Cable
