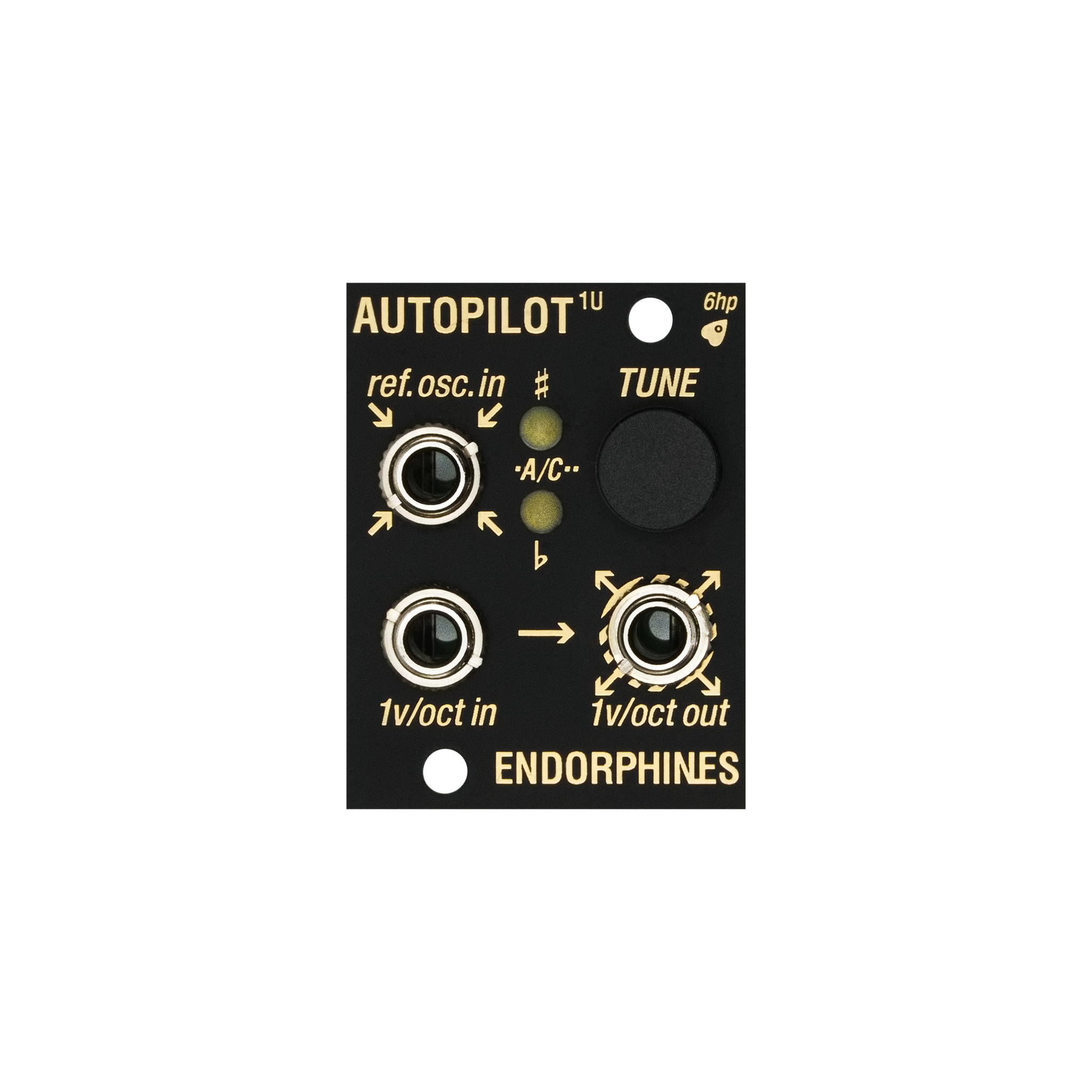

Autopilot 1U

Out of stock
Product number: CV5060

Smallest Autotuner of Analog Oscillators

  • +12V 20mA
    -12V 10mA
    +5V 0mA
    Width 6HP
    Depth 30mm


Smallest Autotuner of Analog Oscillators

AUTOPILOT is an innovative auto-tuner module for analog oscillators. Tune your oscillators fast, just apply the AUTOPILOT in between the pitch CV and apply the reference waveform. Is available as a dual autotuner in 3U version (4hp) and as a single autotuner 1U Intellijel format version (6hp).

The problem with all analog voltage controlled oscillators is that the applied 1v/oct pitch voltage might not match up exactly to what note’s frequency they should generate and it'll end up sounding out of tune. What's worse is that even if you adjust for this you'll need to re-adjust as the instrument gets warmer. With the AUTOPILOT we play a reference A or C note thru the pitch CV into an oscillator. Single button press enables the tune function to the nearest A or C note. Long hold press disables the tune. Super long hold changes the tune from A to C notes or vice versa.


  • 440 A-note or 261.62 Hz C-note scales: selected mode saved on next power up
  • Tune your oscillators instantly, just apply the Autopilot in between the pitch CV and apply the reference wave
  • Play the reference note from your sequencer or CV keyboard. Now a single tap on the button tunes your oscillator to the closest A/C note.
