Desktop Monosynth

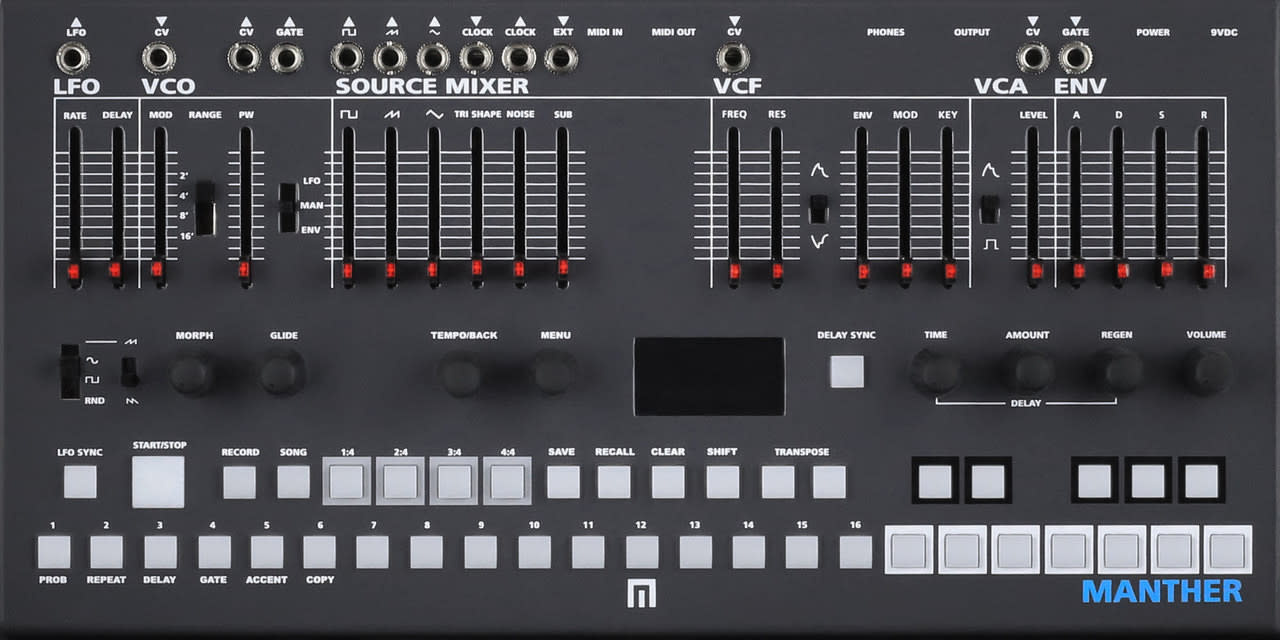

Manther is a desktop monosynth boasting an entirely analog signal path, a digital sequencer, and integrated delay effect. The beast derives much of its charm from its CEM3340 based IC and SSM2044 chips, which comprise the VCO and filter respectively. There's a source mixer that gives users optimal control over waveform, noise, and sub levels as well as individual outputs for each waveform.

The integrated 64-step sequencer enjoys automation across every primary feature. Users can program intricate movements and save all automation to any of the unit's 64 preset locations. These presets can be selected and deployed in any order for easy song creation.

When it comes to ease of use, Manther is the king of the jungle. Its impressive menu system provides deep control over essential features like envelope manipulation, sequence division and direction, sub semitones, LFO phase, clock parameters, and delay features. And if all that wasn't enough, Manther features inputs and outputs for CV, Clock, Gate, LFO, and MIDI—providing everything one would need to communicate with external modular synthesizers, especially those of the eurorack variety.

MANTHER FEATURES

• 64-step sequencer
• Keyboard with transpose controls
• Onboard Delay with Time, Mix, Regenerate and Sync controls
• Individual Outputs for Square, Saw and Triangle waveforms
• Mixer for Square, Triangle, Saw, Sub and Noise
• Audio Input
• 4 banks of 16 presets each
• Song Mode
• Record automation of features per step for: LFO, VCO, DELAY, VCF, ADSR Envelope, Morph and Glide
• Gate Probability, Gate Repeat, Gate Delay and Accent per step
• Morph control over automation
• Route LFO to modulate delay time
• LFO Sync
• Assign modulation of Pulsewidth to LFO, Manual or Envelope
• Glide control per step
• FWD, REV, PENDULUM and RANDOMIZE sequence directions
• Tempo control
• Switches for LFO shape and ramp
• Switches for Envelope direction and VCA control
• Range switch
• Gate inputs and outputs
• LFO output
• CV inputs for VCO, VCF and VCA
• MIDI in and out
• Headphone Output
• Rugged metal enclosure
• US and EU power supply provided
