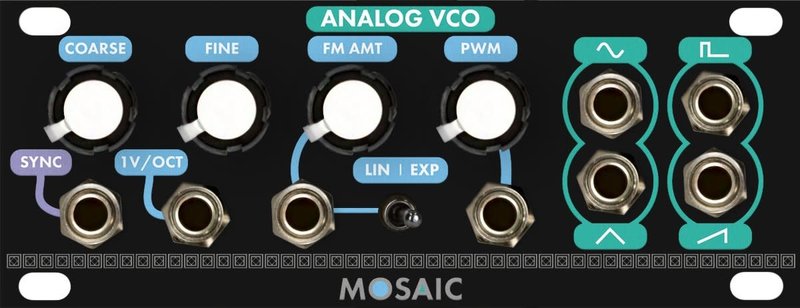

Mosaic Analog VCO

Not yet rated | Create your own review
$ 149.00 Total

Analog Voltage Controlled Oscillator

Available Immediately
Product number:
CV3969
Quantity:
Add to cart

Analog Voltage Controlled Oscillator

This all analog voltage controlled oscillator revolves around the reissue of the legendary Curtis CEM3340 IC, which is found in synthesizers such as the Prophet 5, Roland Jupiter Series, and more.

  • CEM3340 based VCO (triangle core)
  • Waveforms: Sine, Triangle, Sawtooth, Square
  • Linear and Exponential FM
  • PWM
  • Sync capability
  • 1V/Oct tracking over 10 octaves
  • Panel ships in Intellijel format

In the Box
• The module itself
• Eurorack Power Cable

+12V: 27mA
-12V: 24mA
+5V: 0mA
Width: 20HP
Depth: 38mm
