Roland

System-500 572 Phase Shifter/Delay/LFO

$419.99
Available Immediately
Product number: CV2070



Phase Shifter/Delay/LFO

  • +12V 110mA
    -12V 90mA
    +5V 0mA
    Width 16HP
    Depth 58mm

Description

Phase Shifter/Delay/LFO

Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analog recreation of one of the most revered electronic instruments of all time. Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original with the advantages of a modern instrument. The SYSTEM-500 is made to exacting standards with top-quality components and solid controls, with a collaborative production process between Portland, USA and Hamamatsu, Japan. And it's surprisingly affordable, turning the fantasy of finally owning this legendary instrument into reality.

The SYSTEM-500 consists of Eurorack format modules that you can mix and match in any combination to create the ultimate Roland modular synthesizer. Each module is completely analog and has been designed for maximum compatibility with the world of contemporary synthesizer and effects modules. The SYSTEM-500 is a compact, powerful system that opens up vast possibilities for sound design and musical exploration.

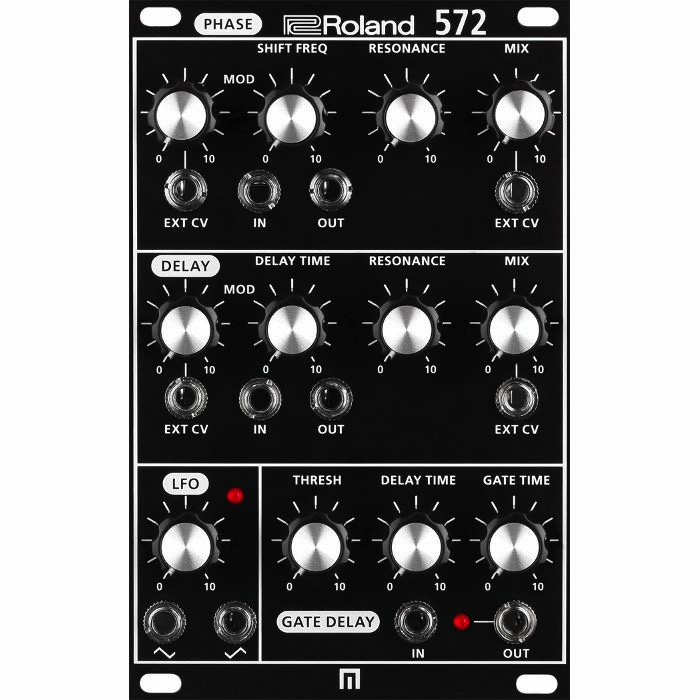

The 572 Phase Shifter, Delay and LFO is a time-based, multi-effects module. The 572 includes a five-stage phase shifter, analog audio delay, a control voltage gate delay, and an LFO. The phase shifter has panel controls for shift frequency and resonance amount that can vary from subtle to a deep, lush analog effect. Similarly, the audio delay has independent knob control of delay time and resonance (or feedback) for short chorus-like modulation delays. Both the phase shifter and delay can be modulated by the 572's internal LFO or external CV signals and feature wet/dry effects mix controllable via the front panel or with CV.

The LFO section has a knob for controlling frequency and features both normal and inverted output jacks. The gate delay has knobs to control threshold, delay time, and gate time for modifying incoming gate signals from other modules.

In the Box
• The module itself
• Eurorack Power Cable
