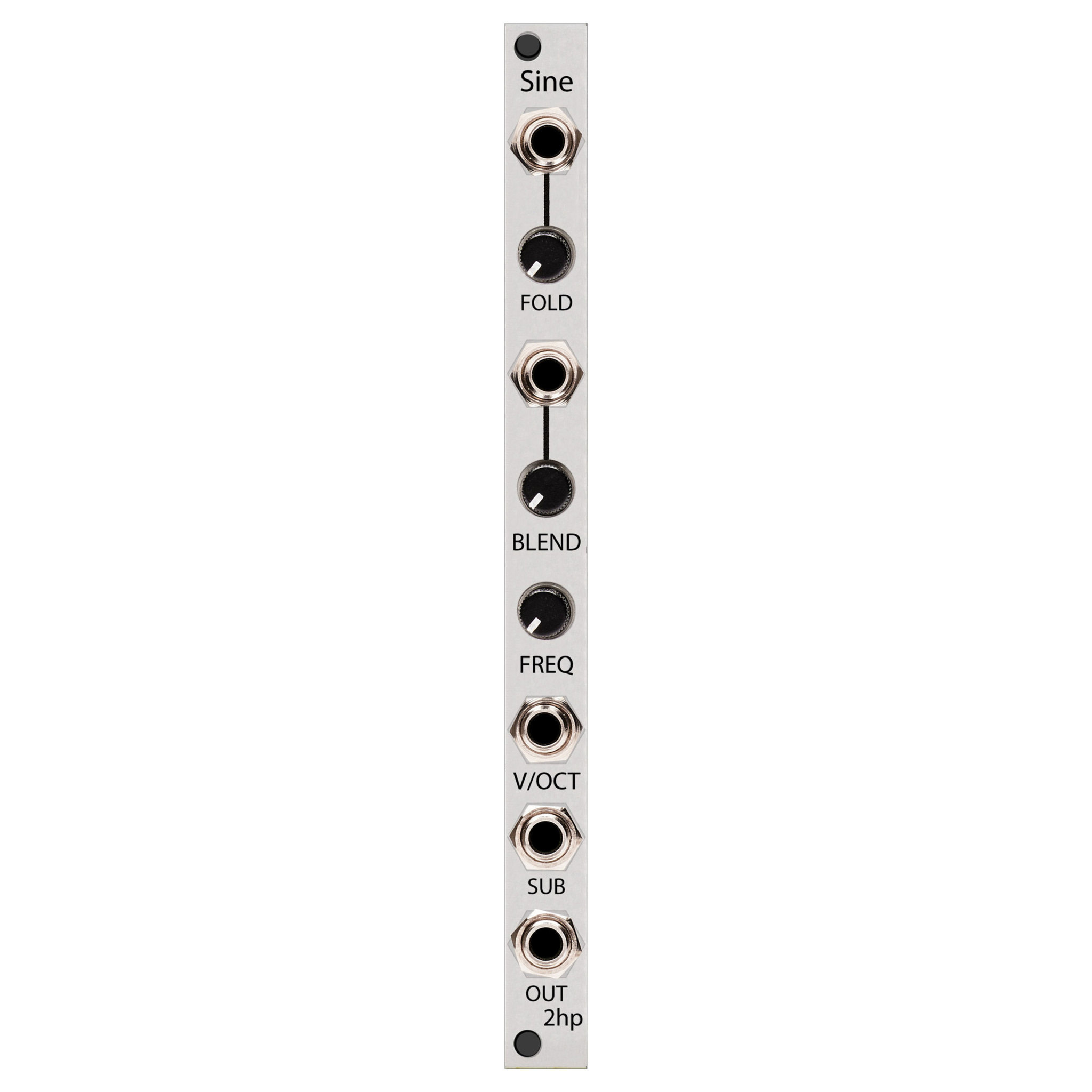

Sine Wave VCO w/sub out
+12V | 80mA |
---|---|
-12V | 4mA |
+5V | 0mA |
Width | 2HP |
Depth | 42mm |
Sine Wave VCO
Sine is a harmonically pure VCO with two distinct outputs. The primary output contains a perfect sine wave with a wide frequency range and pristine volt per octave tracking. The Sub output features two sine tones that can be blended together to achieve a mix of one octave below, or a fifth above the primary output's frequency. In addition, both outputs have an internal wavefolder that adds harmonic content to the signal allowing for spectrally complex tones within a single module. Keep your tones pure (or not!) with Sine.
Features
• Digital Architecture ensures harmonically perfect sine wave
• Internal Wavefolding
• Two distinct outputs
• Sub output can be octave below or fifth above
