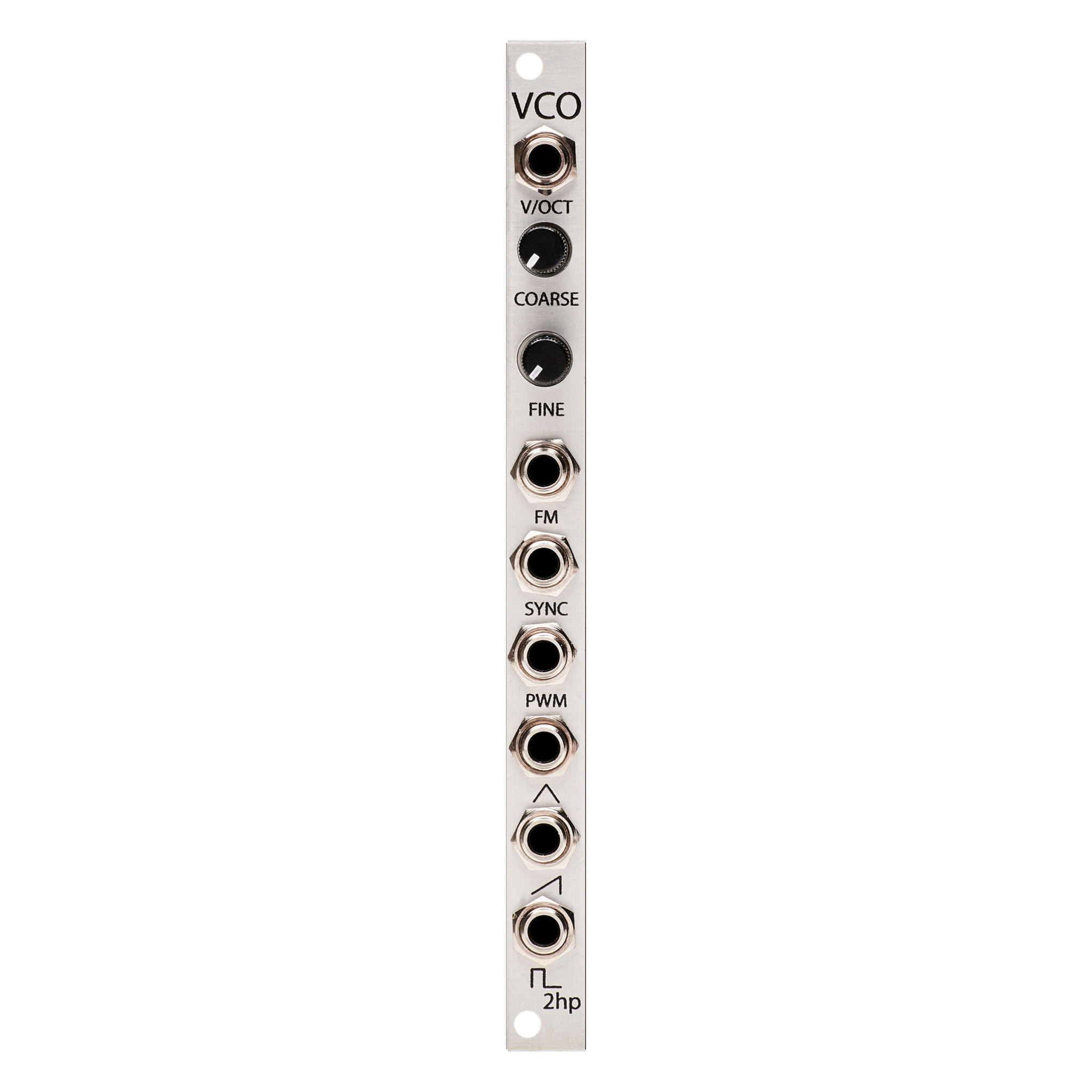

2hp

VCO, Silver

$134.00
Available Immediately
Product number: CV3016



Analog Voltage Controlled Oscillator

  • +12V 27mA
    -12V 24mA
    +5V 0mA
    Width 2HP
    Depth 47mm

Description

Analog Voltage Controlled Oscillator

VCO is an analog voltage controlled oscillator based on the reissue of the legendary Curtis CEM3340 IC.

Many believe this chip to be the greatest sounding analog oscillator of all time. VCO features simultaneous triangle, sawtooth, and square wave outputs with linear FM, hard sync, and PWM capabilities. Accurate 1V/Oct tracking across 10+ octaves provides a huge frequency range for melodies or dramatic sweeps.

Features
• CEM3340 based architecture
• Analog VCO
• 10+ octave range with accurate 1V/Oct tracking
• PWM control

In the Box
• The module itself
• Eurorack Power Cable
