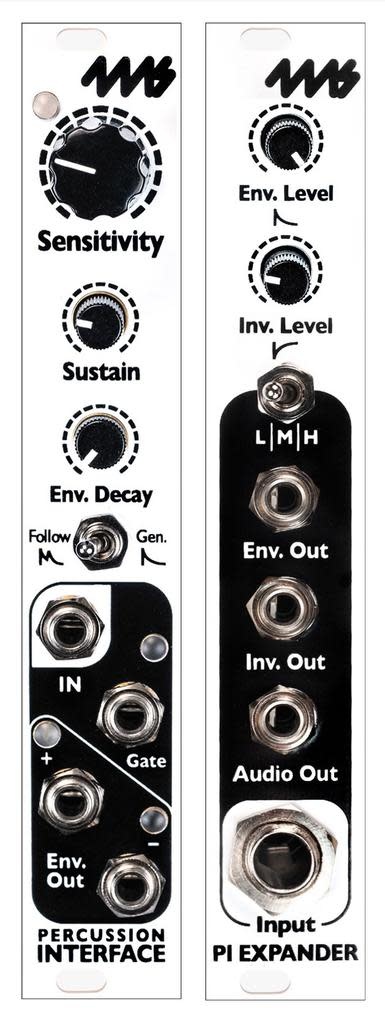

4ms Percussion Interface + Expander

Not yet rated | Create your own review
$ 165.00 Total

Generate Gates & Envelopes from Acoustic Drums, and more!

Available Immediately
Product number:
CV3800
Quantity:
Add to cart

Generate Gates & Envelopes from Acoustic Drums, and more!

Percussion Interface (PI) and PI Expander are a pair of Eurorack modules that generate gates and envelopes from acoustic drums, samplers, drum machines, and virtually any audio source.

Converting microphone, instrument, line and modular signals into CV and clock/gate signals, the PI and PI Expander are suited for synchronizing sequencers or other modules to the rhythm of an audio track or live percussion. The modules can simultaneously be used as a pre-amp for microphones or line-level signals, while generating inverted envelopes useful for side-chaining. The PI module contains all the core functionality and can be used without the Expander to conserve space. The Expander requires the main PI modules and adds three gain stage options, a modular-level audio output jack, a 1/4" (6.35mm) input jack, and envelope attenuation capabilities. The two modules are only sold together, they are not available separately.

Specs
• Sensitivity knob, Low/Medium/High gain switch, and clipping LED
• Sustain control to prevent misfires, increase gate length, and control the envelope
• Envelope decay control
• Non-inverted and inverted envelope outputs, useful for side chaining
• Four envelope outputs: two attenuated with independent attenuators, and two non-attenuated
• Envelope following or generation modes
• Gate output for clocking sequencers or any unit with a clock or trigger input
• Compatibility with drums, pads, samplers, microphones, piezos, drum machines, etc.
• 1/8" or 1/4" input jack (6.35mm)

In the Box
• The module itself
• Eurorack Power Cable

+12v: 104mA with PI Expander/69mA without PI Expander
-12v: 65mA with PI Expander/56mA without PI Expander
+5v: 0mA
Width: 4HP / PI Expander 4hp
Depth: 25mm
