ALM Busy Circuits Dinky’s Taiko, USED

Not yet rated | Create your own review
$ 270.00 Total

12-bit Digital Drum Voice

Available Immediately
Product number:
CV1865
Quantity:
Add to cart

This item is used, has been fully tested and is guaranteed to be working.

12-bit Digital Drum Voice

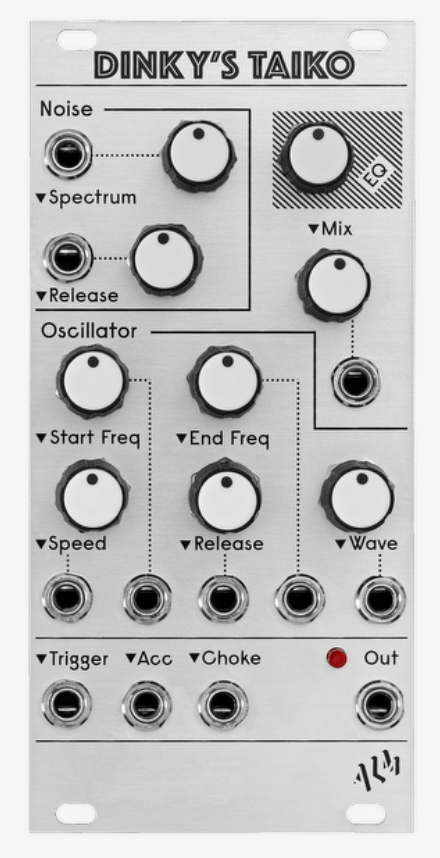

Dinky's Taiko' is a 12 bit digital drum voice with full voltage control and an analog EQ output path. The drum voice consists of 3 parts; a digital noise source with controllable frequency and release time, a wavetable oscillator with start and end frequency settings together with a variable rate (and release time, and finally a mix and tone control for the audio output. All settings, bar the tone control, are both direct and voltage controllable. The drum voice includes a trigger input as well as accent and choke trigger inputs to add further expressive and rhythmic control.

Features
• Wide varied 12 Bit digital drum sound source through fully analog EQ
• Extremely wide pallet of sounds with lots of modulation possibilities.
• Digital noise generator combined with variable wavetable (24 waveforms) oscillator through an EQ and mix output
• Trigger, accent and choke trigger inputs.
• Reverse polarity protection.
• Skiff friendly.

In the Box
• The module itself
• Eurorack Power Cable

+12v: 80mA
-12v: 0mA
+5v: 0mA
Width: 12HP
Depth: 32mm
