Bastl Instruments

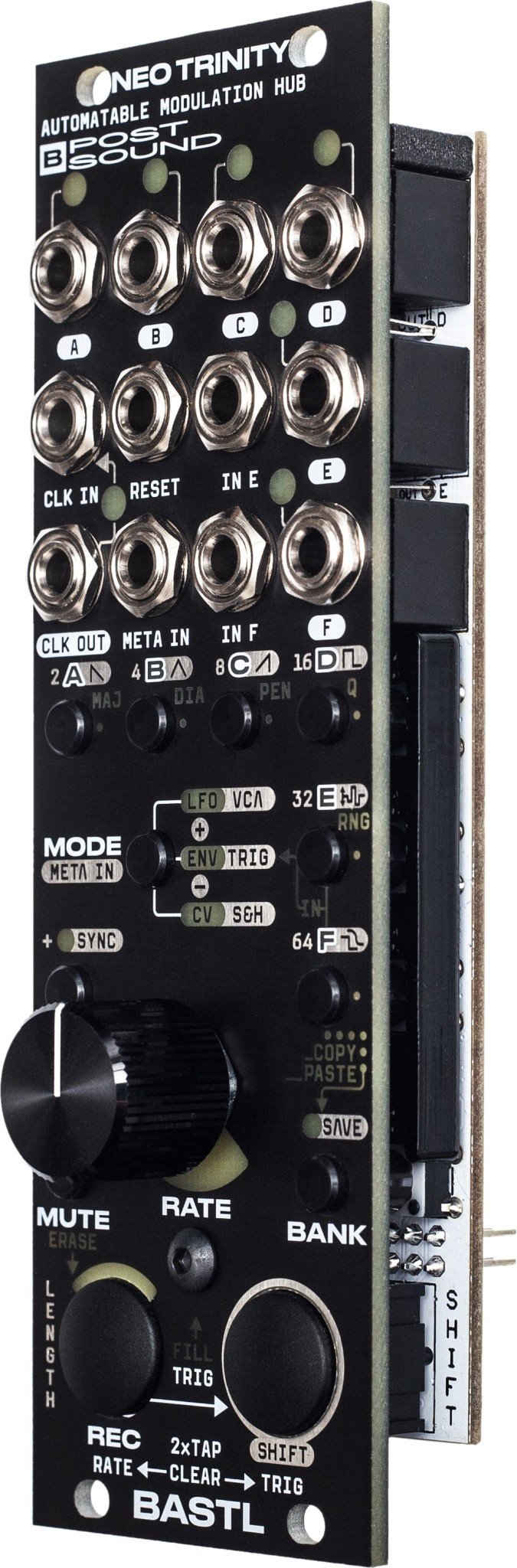

Neo Trinity

$320.00
Out of stock
Product number: CV4754



6 Channels of Gestural Music-Making

  • +12V 100mA
    -12V 35mA
    +5V 0mA
    Width 8HP
    Depth 24mm

Description

6 Channels of Gestural Music-Making

Neo Trinity is a 6-channel compact modulation hub with great musical complexity achievable with simple gestures. Each of the 6 channels can be either LFO, envelope generator, or a CV knob recorder, while their main parameter can be automated with the REC button.

Ultimate automatable modulation hub

Each channel also features a recordable trigger generator with an algorithmic fill feature to get the inspiration started or to make things polymetric and keep your patches ever-changing. Use the SHIFT button to change modulation shapes and sync selected or all channels to an internal or external clock.

Neo Trinity has been designed with performance in mind, so it includes channel mutes and allows storing whole presets as banks.

Easy to control with complex possibilities

While the core mechanics of the module are very straightforward, the inclusion of assignable CV inputs exponentially increases the complexity of the module’s behavior. Control some or all channels in different ways with the META IN and utilize channels’ E and F dedicated inputs. The inputs can control the main parameter in a positive or inverted way, control the output amplitude, and act as an external trigger or a trigger for the internal Sample & Hold function. The CV knob recorder mode also acts as a quantizer, and when combined with the CV inputs, it turns into a handy voltage processor.

Features

  • 6 independent channels of either LFO, ENV or CV
  • Indication per channel
  • Unipolar (0–5V) or bipolar (-5V to +5V) mode per channel
  • LFO shapes (with smoothing): saw, triangle (sine), ramp, pulse, random (smooth)
  • LFO range: 260s–180Hz
  • LFO sync (RATE knob sets divider)
  • ENV shapes: decay, attack, variable, pulse
  • ENV range: 1ms–8s
  • ENV retrigable or non-retrigable
  • ENV slew limiter mode (or AHR envelope with gates)
  • CV mode with quantization (ON/OFF, 8 scales, 2V or 5V range, smoothing)
  • All modes have automatable RATE knob and trigger sequences
  • Independent length of automation per channel (2–64 steps)
  • Clock-quantized or non-quantized trigger recording
  • Algorithmic trigger fill generator (6 algorithms with a knob parameter)
  • Mute per channel
  • Memory for 6 banks (all settings and automations)
  • Clock Reset input for automation (can be turned OFF – per channel)
  • CLK channel for setting tempo or for dividing/multiplying external clock
  • Internal CLK generator range: 35 BPM–420 BPM
  • CLK IN and CLK OUT connectors
  • META IN CV input – assignable independently to some or all channels
  • Channels E and F feature dedicated CV inputs
  • All CV inputs have adjustable function: positive/negative and attenuated RATE modulation, bipolar VCA at channel output, TRIG input (slew input), Sample & Hold (for triggered stepped waveforms)
  • Firmware updates via USB-C
  • User calibration of outputs and inputs (for quantizer precision)
