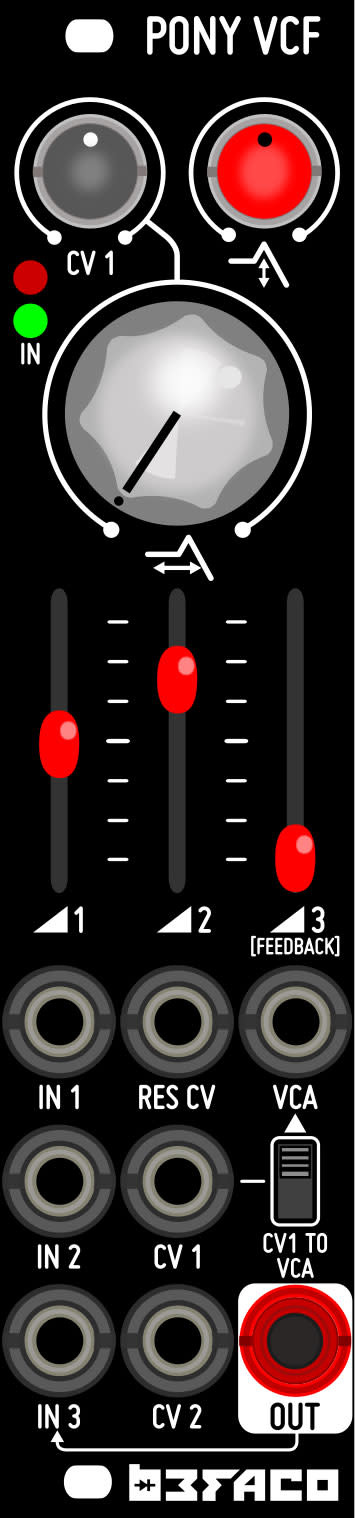

Lowpass Filter & Volume Processor

Space-conscious lowpass filter and volume processor. A combination of VCF + VCA + Mixer that lets you mix three different sound sources, and shape their tone, and levels in a breeze. The Pony Filter is built around the SSI2144 FATKEYS™ Chip. Has the elegant sound of the classic transistor filter without the associated distortions, due to Dave Rossum’s “improved ladder” topology.

Features

•  3 Channel Mixer (Out normalized to channel three for feedback)
• Temperature-compensated Q and frequency.
• Compensated Volume VS Resonance
• 2 Cuttof CV INs.
• CV 1 Selectable routing Cut-Off or Cut-Off+VCA
• Voltage controlled Q
• Two Segment Peak Meter
