Erica Synths

Graphic VCO

Available Immediately
Product number: CV3022

Advanced Wavetable VCO with Wave & FX

  • +12V 152mA
    -12V 20mA
    +5V 0mA
    Width 16HP
    Depth 30mm

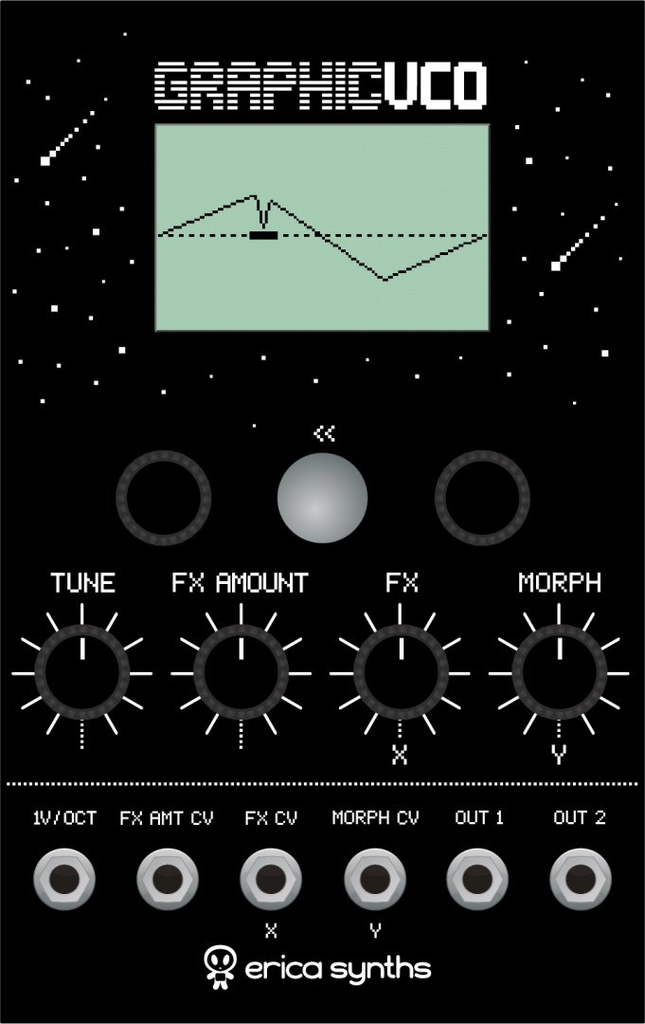

Advanced Wavetable VCO with Wave and FX

The Graphic VCO allows you to draw your own waveforms, arrange them in wavetables and wavetable banks, morph between two selected waves and alter the resulting wave in advanced ways (FXes) - apply FM, phase distortion, ring modulation, wavefold/wavewrap, bitcrush.

Waves, wavetables, FXes and other settings can be saved and recalled from the memory instantly. The module has two outputs - the main output and the output with configurable suboscillator.

• Versatile waveform designer
• Morphing between two selected waves
• Wavetable design
• Wavetable matrix design
• Versatile waveform alteration - FM, phase distortion, ring modulation, wavefoldwavewrap, bitcrush
• 32 classic wavetables included
• Module state saving (Snapshots)
• Configurable suboscillator output
• Suboscillator tuning from -1 to -24 semitones
• Suboscilator detuning (+/- 50 cents)
• User waveform/wavetable upload via USB
• Firmware upgrade via USB

In the Box
• The module itself
• Eurorack Power Cable
