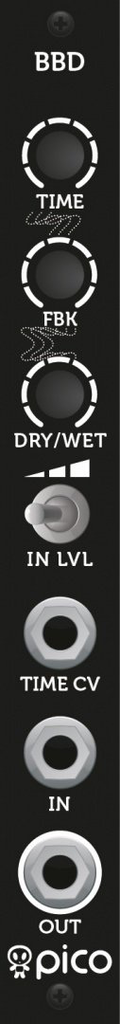

Erica Synths Pico BBD

Not yet rated | Create your own review
$ 140.00 Total

Analog Bucket Brigade Delay

Available Immediately
Product number:
CV3534
Quantity:
Add to cart

Bucket Brigade Delay

Pico BBD is great sounding, full analogue 4092 stage bucket brigade delay module; the smallest BBD in eurorack. Besides nice flanger and delay effects, at full CW settings of TIME and feedback knobs it can produce extreme sonic artifacts. Take note that this BBD unit doesn't have any kind of post delay filter therefore the higher the delay time setting the higher the produced noise in the output!

Features
• Full analogue circuit
• 4092 stage BBD chip
• Up to 300ms delay time
• CV control over delay time
• Input and output protection against overvoltage
• Protection against reverse PSU connection

In the Box
• The module itself
• Eurorack power cable

+12v: 20mA
-12v: 9mA
+5v: 0mA
Width: 3HP
Depth: 35mm
