Instruo 1[f]

Not yet rated | Create your own review
$ 119.00 Total

DC Coupled Audio/CV Utility

Not Available
Product number:
CV4045

DC Coupled Audio/CV Utility

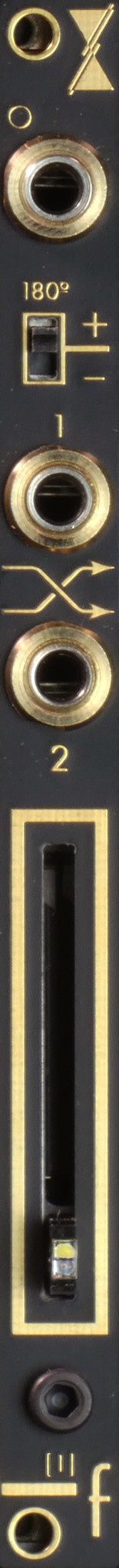

The Instruō [1]f is a crossfader, attenuator, attenuverter and manual DC offset. Whether you want to crossfade between two audio signals, attenuate an envelope, invert a sawtooth LFO for ramped modulation, or use a DC offset to access the Mod parameters of your arbhar, [1]f is the perfect multi-utility for all of your CV processing tasks.

Features

  • Crossfader
  • Attenuator & Attenuverter
  • Unipolar positive or unipolar negative DC offset
  • DC coupled for both audio and control voltage processing
  • Bicolour LED indication of output voltage

In the Box
• The module itself
• Eurorack Power Cable



+12V: 8mA
-12V: 8mA
+5V: 0mA
Width: 2HP
Depth: 27mm
