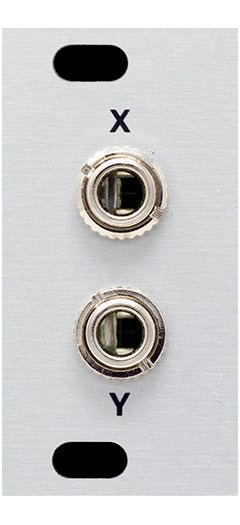

Intellijel X Y IO_1U

Not yet rated | Create your own review
$ 19.00 Total

Versatile Link Connector Access Jacks in 1U

Not Available
Product number:
CV3806

Versatile Link Connector Access Jacks

Use this module to tap into the 3-pin LINK connector used in several Intellijel products, including Mixup, Pedal I/O and the Palette and 2nd Generation Audio Jacks Board in a 7U case. The XY I/O uses two 3.5mm TRS jacks, which accept insert cables to provide send/return capability to a pair of Pedal I/O’s, or additional stereo inputs (or outputs) to a pair of Mixups, or one of each. A third 3-pin Link connector on the back panel allows the X and Y jacks to access the L/R (or Send/Return) jacks on a single connected module or case without needing a stereo cable.

Features & Other Uses
• Make a Midi TRS Type-A to Type-B converter by cross patching the pins on the back with a jumper cable
• Make an 1⁄8" Floating Ring converter by linking the two together with only 2 of the pins
• Simple 1⁄4" to 1⁄8" converter with the Case Jacks
• 1⁄8" jacks for the Stereo Line In 1U for smaller synths like the Volca's or Roland Boutique series

In the Box
• The module itself

+12V: 0mA
-12V: 0mA
+5V: 0mA
Width: 4HP
Depth: 24mm
