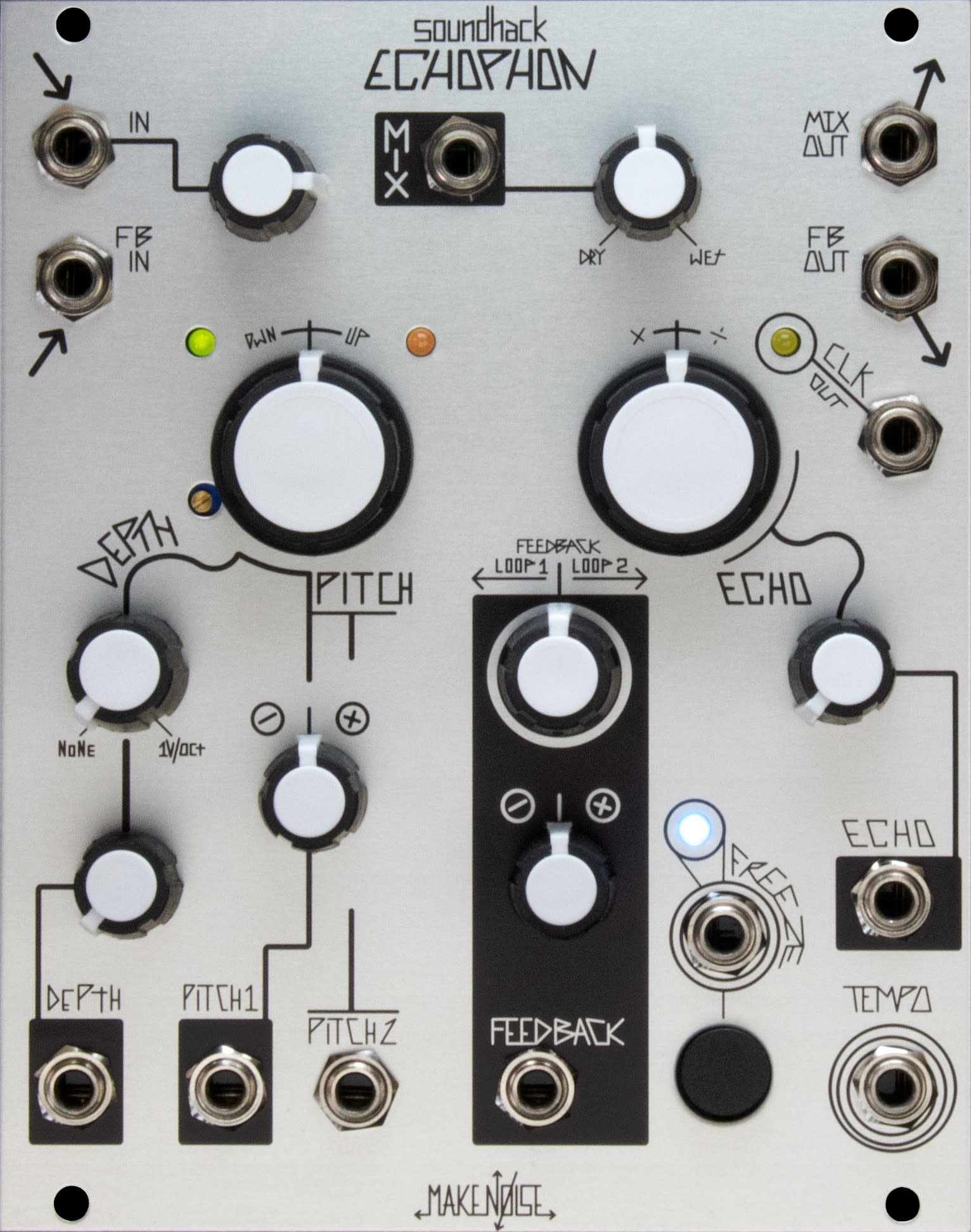

Make Noise Echophon

$399.00
Available Immediately
Product number: CV0164

Beautifully Smooth Time Mod/Pitch-Shifting Delay

  • +12V 70mA
    -12V 40mA
    +5V 0mA
    Width 20HP
    Depth 30mm

Description

Beautifully Smooth Time Mod/Pitch-Shifting Delay

Winner of Electronic Musician's Editors' Choice Award for 2013!!!
Pitch Shifting Echo with smooth Time Modulation, Tempo Sync, saturating Feedback and a unique Pitch Shifting algorithm inspired by the Springer Tempophon and lovingly engineered by DSP Guru Tom Erbe of SoundHack . "...the most inspiring module of the year." -Electronic Musician.

Features
• Shift Pitch of signal +/- 2 Octaves
• Exponential control of delay time -Maximum Time 1.7 Seconds, Minimum Time 7 ms
• Tempo input allows synchronization of Echoes to multiple or division of an external Clock
• Two independent internal digital Feedback paths (Loop 1 and Loop 2)
• External Analog Feedback Path for filtered or processed echoes
• FREEZE button/ gate input allows for hold, stutter and sampling techniques
• 24 bit ADC/DAC, 32bit processing, 16bit delay storage operating at 40khz
• Vactrol based Mix circuit for smooth blending of dry and wet signals
• All Analog Dry Signal Path
• Voltage Control over ALL parameters

Inputs
• Signal
• Feedback In
• Mix CV
• Depth CV
• Pitch (1 & 2) CV
• Feedback CV
• Freeze In
• Echo CV
• Tempo (Clock) In

Outputs
• Mix
• Feedback
• Clock
• End of Cycle

Controls
• Level
• Pitch
• Depth
• Feedback
• Echo
• Mix

In the Box
• The module itself
• Eurorack Power Cable
