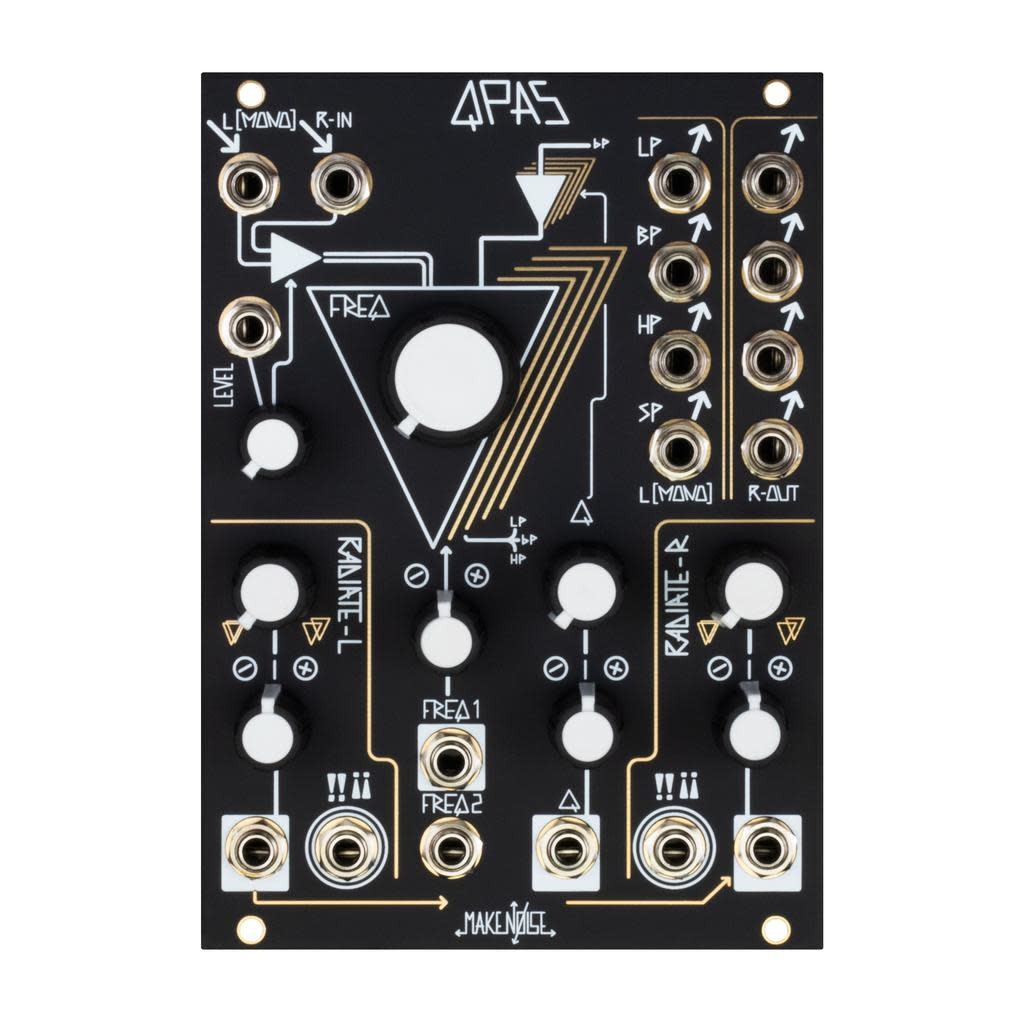

Make Noise QPAS

Not yet rated | Create your own review
$ 379.00 Total

Quad Peak Animation System

Not Available
Product number:

Quad Peak Animation System

The Quad Peak Animation System combines the auditory enveloping of stereo spaced peaks with the animation of two or more peaks in a single channel dancing around each other or engaging in primitive vocalizations. QPAS is Quad Core, containing four identical state variable filter cores with a control system powerful enough to guide them in stereo multi-peak operation, but simple enough to encourage system integration rather than domination.

• Quad Core Stereo Analog
• Multi-Peak with clean resonance
• Fast response encourages deep FM
• Radiate spaces stereo image and animates associated channel
• High Q settings are under damped, excitable and ring by gate or trigger
• 2 !! modulation inputs aid patch exploration
• Stereo VCA, pre-filter with gain
• Mono to Stereo, Stereo to Mono, Mono to Mono and Stereo to Stereo operations
• Smile Pass filter response unique to QPAS
• Low Pass, Band Pass, High Pass and Smile Pass outputs simultaneously available

In the Box
• The module itself
• Eurorack Power Cable

+12V: 166mA
-12V: 190mA
+5V: 0mA
Width: 18HP
Depth: 30mm
