Make Noise

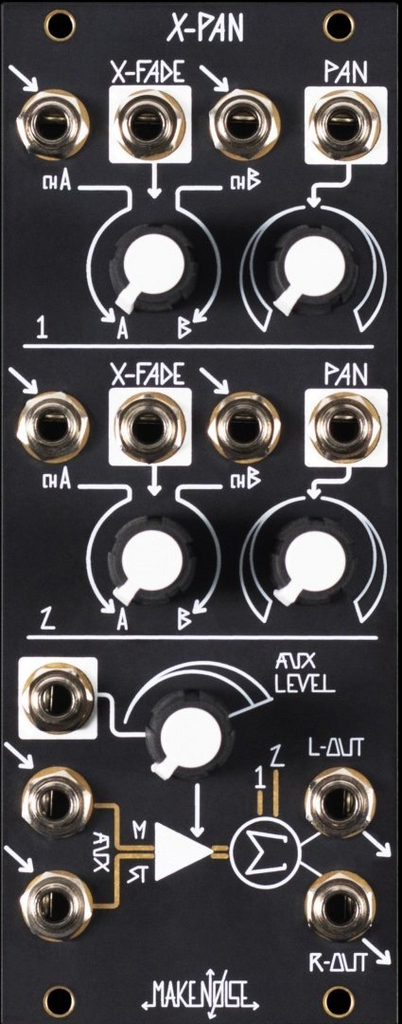

X-PAN

$259.00
Available Immediately
Product number: CV3367



5 channel Voltage Controlled Stereo Mixer

  • +12V 145mA
    -12V 110mA
    +5V 0mA
    Width 10HP
    Depth 30mm

Description

5 channel Voltage Controlled Stereo Mixer

The X-PAN music synthesizer module is a compact and powerful 5 channel Voltage Controlled Stereo Mixer with Low Noise and High Headroom allowing for creation of complex panoramic audio imagery in just 10hp.
It is highly responsive to control signals allowing for exploration of the fluctuating stereo sidebands possible with audio rate crossfading and panning & is direct coupled for use as a CV processing and routing toolbox.

X-PAN consists of two full featured Channels and one simpler Channel. The top two Channels each have voltage controlled cross-fading and panning while the third Channel is a stereo aux input with stereo VCA. All three Channels are combined together at the stereo SUM outputs.

Features
• 5 signal inputs all routed to a dynamic stereo output
• Contains 10 High Quality VCA circuits in just 10hp
• Fully Voltage Controlled Panning, Cross-fading and Mixing
• Easy to maintain signal integrity with high headroom, low noise circuitry
• Audio Rate crossfading and panning, fluctuating stereo sidebands
• Aux Stereo Inputs controlled by Stereo VCA with Combo Pot
• Part of a decentralized mix console integrated throughout the system along with Optomix, modDemix, Dynamix, and RxMx
• Direct Coupled for use as Complex CV router

In the Box
• The module itself
• Eurorack Power Cable
