Parallel Generative Analog Synthesizer

How deep does the rabbit hole go? Meet Labyrinth, an idea machine that aims to answer that very question. Two generative sequencers bring to life sounds that bloom over time, letting you control their evolution and scale, then play them off of each other for striking polymetric melodies. With parallel analog signal paths, this unique instrument shines when adding color to the steady backdrop of a drum pattern or bassline. Fully capable of standing on its own, or adding flavor to your existing rack, Labyrinth is the lightning in a bottle that drives your compositions into undiscovered creative caverns.

ANALOG SYNTHESIS ENGINE

SOURCES: VCO, MOD VCO, RING MOD, NOISE Generator
SIGNAL PROCESSORS: 1x Voltage-Controlled Wavefolder, 1x Voltage-Controlled State-Variable Filter, 2x Voltage-Controlled Amplifiers MODULATORS: 2x Decay-only envelope generators

DUAL GENERATIVE SEQUENCER

2x 8-step Generative Digital Sequencers

PATCH BAY

JACKS: 32 x 3.5mm INPUTS: 20 Input Jacks OUTPUTS: 12 Output Jacks

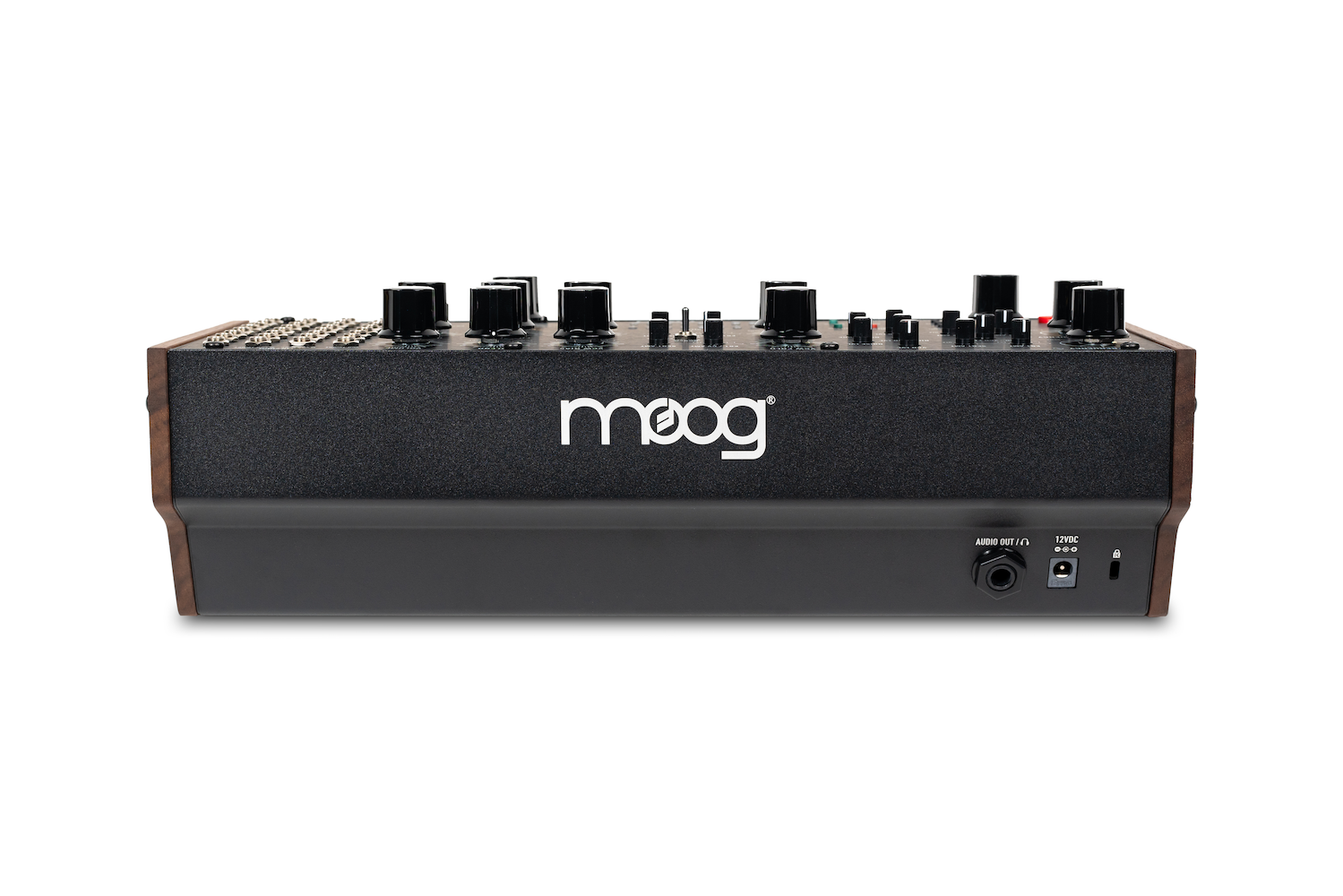

REAR PANEL

AUDIO: 1⁄4” TRS Headphone or 1⁄4” TS Instrument POWER: Power Supply connection
SECURITY: Kensington Lock slot

POWER SUPPLY (INCLUDED)

STYLE: Wall adapter; barrel connection; center-pin positive INPUT: 100 – 240VAC; 50 Hz – 60 Hz
OUTPUT: +12VDC; 1200mA

POWER CONSUMPTION

TYPICAL: 4.0 W

EURORACK SPECS

CURRENT DRAW: 290 mA (maximum) from +12VDC (10-pin header) MOUNTING DIMS: 60HP (18mm Module Depth)
