Buff Mult

Available Immediately
Product number: CV1028

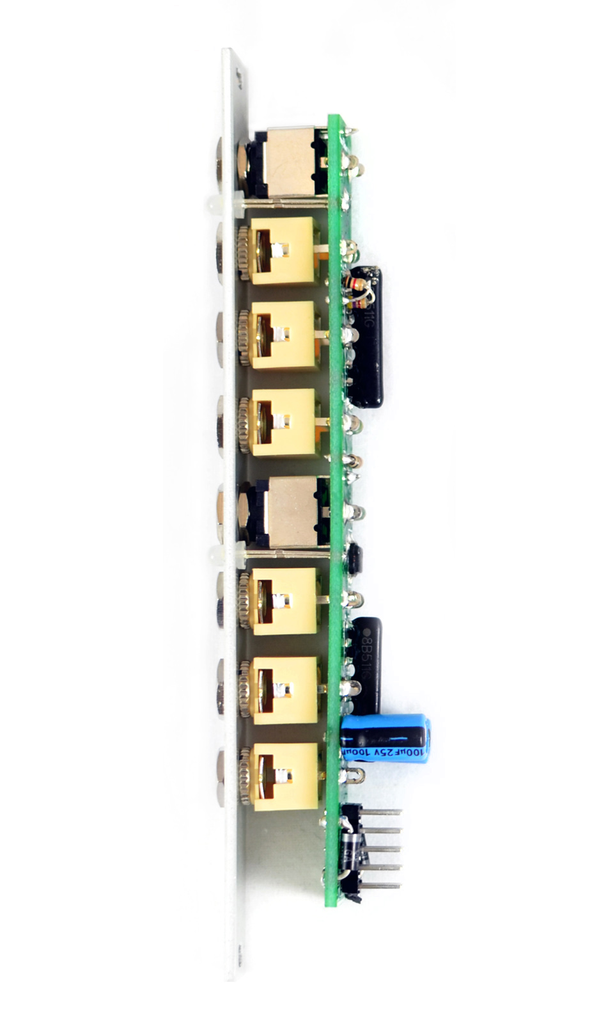

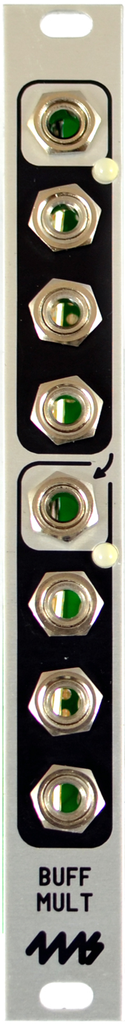

Buffered Mult w/ LED Indication

  • +12V 13mA
    -12V 13mA
    +5V 0mA
    Width 3HP
    Depth 18mm


Buffered Mult w/ LED Indication

Buffered cascading multiple capable of CV, audio rate or video rate duplication. LED indicator shows positive or negative signal. 3HP. Dual 1-to-3 or single 1-to-6.

• Two independent buffered multiples, normalled together
• Each channel has one input and three outputs that are high-grade copies of the original
• Each channel has a bi-color LED to indicate positive (white) or negative (red) signal
• Video-rate OP amps, for greatest bandwidth of any buffered mult. Fully compatible with LZX and video signals
• Bottom channel is normalized to top channel, for a 1-to-6 multiple
• Useful for detecting signals, troubleshooting patches, isolating modules, preventing "thump" or glitches during live patching, and protecting outputs

Please note:The 4ms Buff Mult is not a precision multiple and should not be used where exact gain and offset are required (e.g. precisely tuned 1V/oct signals)

• x2

• x6

In the Box
• The module itself
• Eurorack Power Cable
