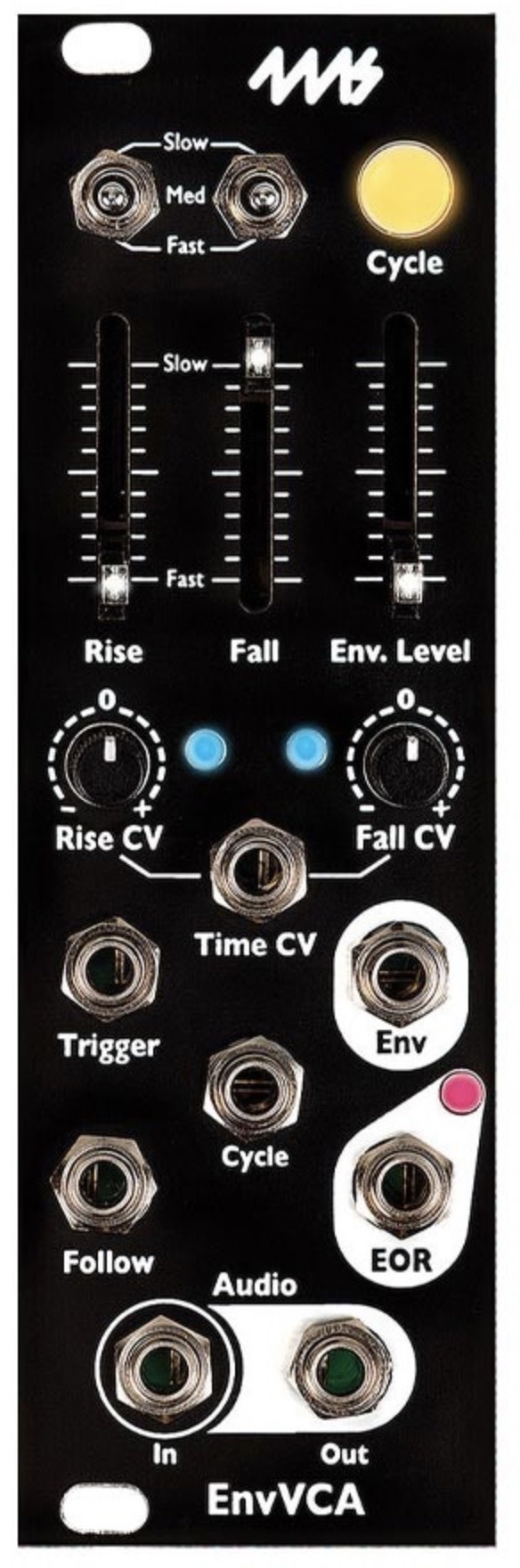

4ms EnvVCA

$159.00
Available Immediately
Product number: CV4223

Analog Envelope / LFO with built-in VCA

  • +12V mA
    -12V mA
    +5V mA
    Width 8HP
    Depth mm

Description

Analog Envelope / LFO with built-in VCA

The EnvVCA is compact analog envelope generator with a built-in low-noise exponential VCA. It's a perfect companion to any VCO, whether you trigger it or self-cycle, and/or use the envelope output to modulate something else. With a wide time range from 30 minutes to 10kHz, it can be used as an LFO, slew limiter, audio or CV VCA, ASR/ADSR envelope generator, audio-rate oscillator, and more.

100% analog



Features:

  • Versatile linear envelope generator/LFO
  • Low-noise, low-distortion, DC-coupled exponential VCA
  • 100% analog
  • Sliders, switches and Time CV jack controls Rise and Fall times from 100µs (10kHz) to over 30 minutes
  • With sliders and switches only: ~1.25ms to over 2 minutes
  • Independent attenuverters for Rise and Fall time
  • Blue/red LEDs indicate strength and polarity
  • Cycle button for looping envelopes (LFO)
  • Trigger input jack fires a one-shot envelope
  • Cycle gate input jack toggles cycling
  • EOR (End of Rise) gate output can be used to chain and sequence events
  • Env Level slider controls output level of the Env jack without changing the VCA volume
  • Audio In and Out jacks for passing audio or CV through the VCA
  • VCA gain internally connected to envelope output
  • Follow input jack allows for slew limiting, sustain (ASR), and exotic filtering effects
  • Re-trig jumper allows for re-triggering during rise phase
