4ms ROW POWER 45 (Black)

Not yet rated | Create your own review
$ 165.00 Total

Clean, Regulated & Protected Power Solution

Available Immediately
Product number:
CV3733
Quantity:
Add to cart

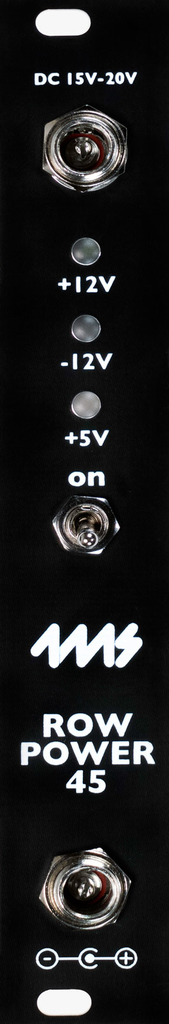

Clean, Regulated & Protected Power Solution in 4hp

Row Power is a clean, regulated, and protected power solution for Eurorack systems. Row Power 45 provides enough power for two to three typical Eurorack rows (typically up to about 312HP).

Simply plug a universal power supply (laptop style) into either of the barrel plugs on the 4HP panel. Connect your modules via flying-bus cables or the Bus Stick. For custom power systems, the Row Power 45 has a set of easily soldered holes for using large gauge wire or MTA156 connectors to connect to distribution bus boards. Multiple Row Power modules can be powered from a single power brick by daisy-chaining with an inexpensive barrel cable. The Row Power 45 can also be daisy-chained to 4ms Company's Pod enclosures. Each power supply is independently regulated and protected for ultra-low cross-talk between rows/pods.

*4ms 90w Power Brick Sold Separately, See Related Products Below

Power Output
• Maximum average load under normal conditions: +12V @ 2.0A, -12V @ 1.4A, +5V @ 1.5A

In the Box
• The module itself
• 2 M3 Knurlie screws
