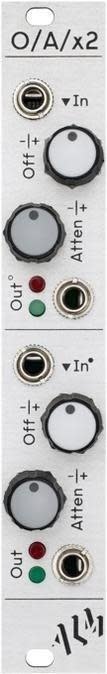

ALM Busy Circuits O/A/x2

Not yet rated | Create your own review
$ 100.00 Total

Dual Attenuverter & Offset

Available Immediately
Product number:
Add to cart

Dual Attenuverter & Offset

O/A/x2 is a dual channel attenuverter with each channel also including a bipolar voltage offset and LED monitoring. The module is primarily intended for fine grain flexible ‘editing' of control signals (i.e changing the phase, level and DC offset of an LFO signal) but also has uses with audio signals such as attenuation, inversion and mixing.

• Dual channel.
• Attenuate and invert input signals.
• Additional +/- 8v DC Offset controls .
• LED indication of outgoing signal polarity and level
• A jumper setting allows for the module to also be used as a simple mixer.

In the Box
• The module itself
• Eurorack Power Cable

+12V: 50mA
-12V: 50mA
+5V: 0mA
Width: 4HP
Depth: 32mm
