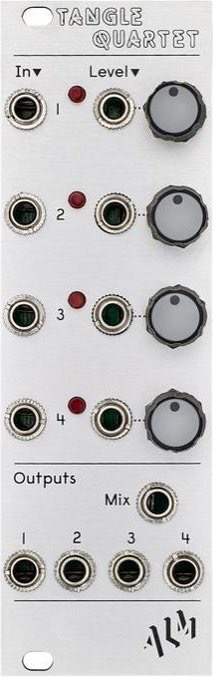

ALM Busy Circuits Tangle Quartet

Not yet rated | Create your own review
$ 199.00 Total

Quad Linear VCA

Available Immediately
Product number:
CV2806
Quantity:
Add to cart

Quad Linear VCA

‘Tangle Quartet' is a high quality quad linear voltage controlled amplifier (VCA) providing individual level control of 4 signal inputs with both individual outputs and a combined ‘mix' output (for non patched outputs) . Control signal inputs and associated attenuation controls allow for voltage control of signal levels. Control inputs are normalized to 5v thus providing manual mix control in the absence of control signals.

Features
• 4 high quality clean bleed free linear VCA's in a compact 8hp
• Utilizes 2164 VCA IC's for high performance with low noise and low signal distortion.
• DC coupled inputs and non inverting outputs to support both audio and non audio signals.
• Normalized attenuation controls allow for manual mixer like operation with no control signal patched.
• Combined mix and individual outputs.

In the Box
• The module itself
• Eurorack Power Cable

+12v: 80mA
-12v: 80mA
+5v: 0mA
Width: 8HP
Depth: 22mm
