Befaco

7U 104HP Eurorack Case

$749.00
Out of stock
Product number: CV4504



Full-Featured 7U High-Spec Eurorack Case

  • Rows 2-row (3U), 1-row (1U)
    Width 104HP
    Total Usable HP 208HP (3U), 104HP (1U)
    Power 5,000mA @+12V, 2,500mA @-12V, 4,000mA @+5V; 36 connectors
    Lid Yes (PET-G Clear cover, velcro included), patchable while closed
    Internal Depth 53mm (PSU side), 70mm (rest of case)
    External Dimensions 21.06" x 12.2" x 3.15"
    Screws M3
    Screw Fixation Threaded strip
    Scalable No

Description

Full-Featured 7U High-Spec Eurorack Case

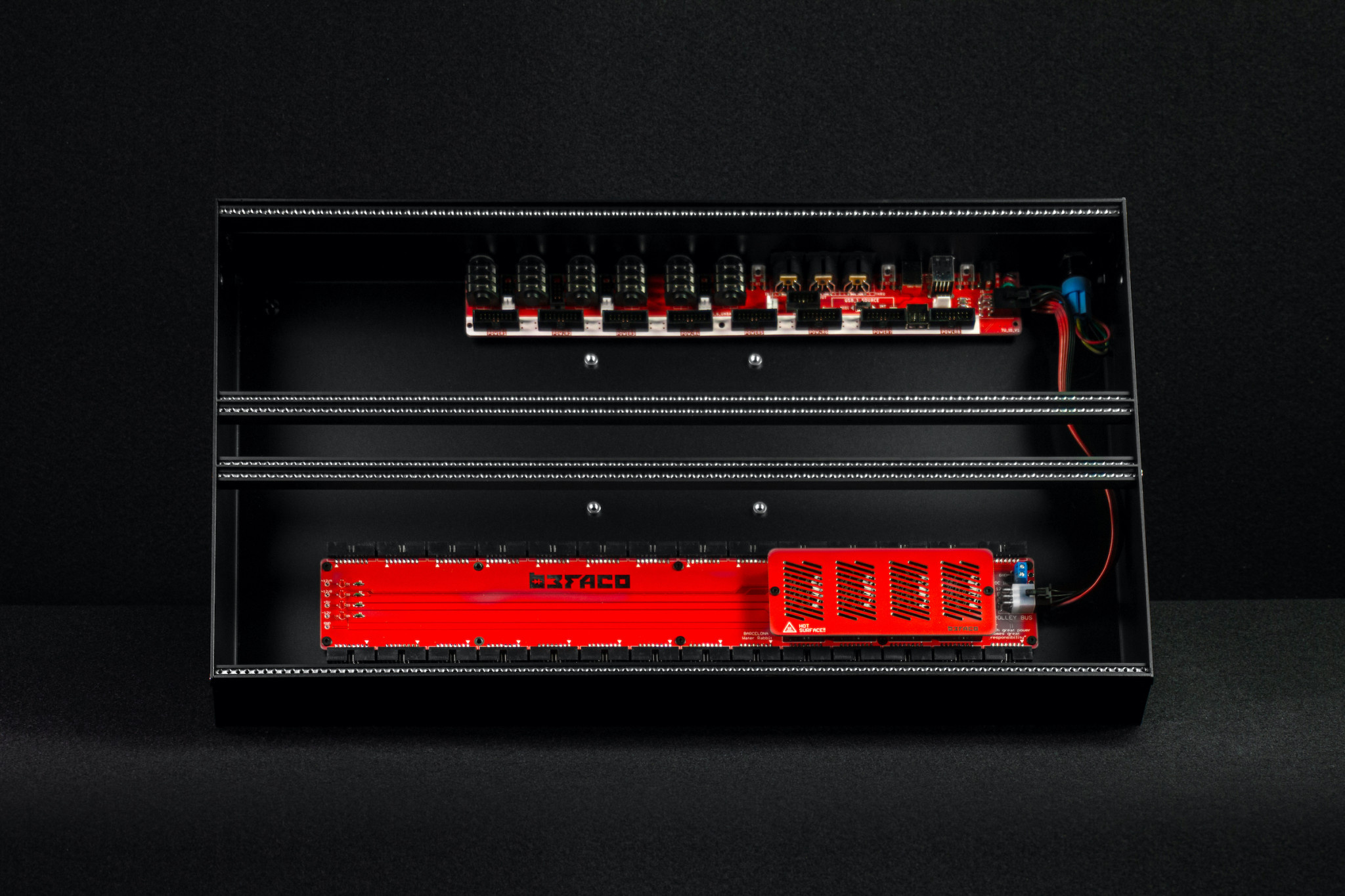

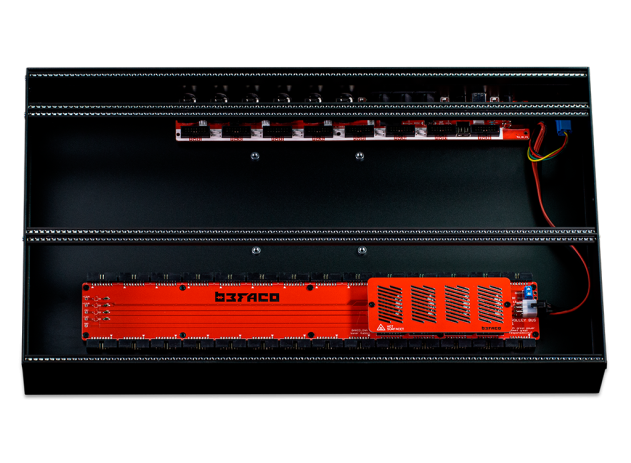

Designed to fit any situation, the Befaco 7U Case metal frame is a lightweight and strong device by itself. With a maximum depth of 53mm (power supply side) and 70mm (rest of the case), it can house the vast majority of modules out there. Equipped with a high-quality anti-vandalic power button and a Kensington lock connector, the Befaco 7U Case is also a safe device to travel with.

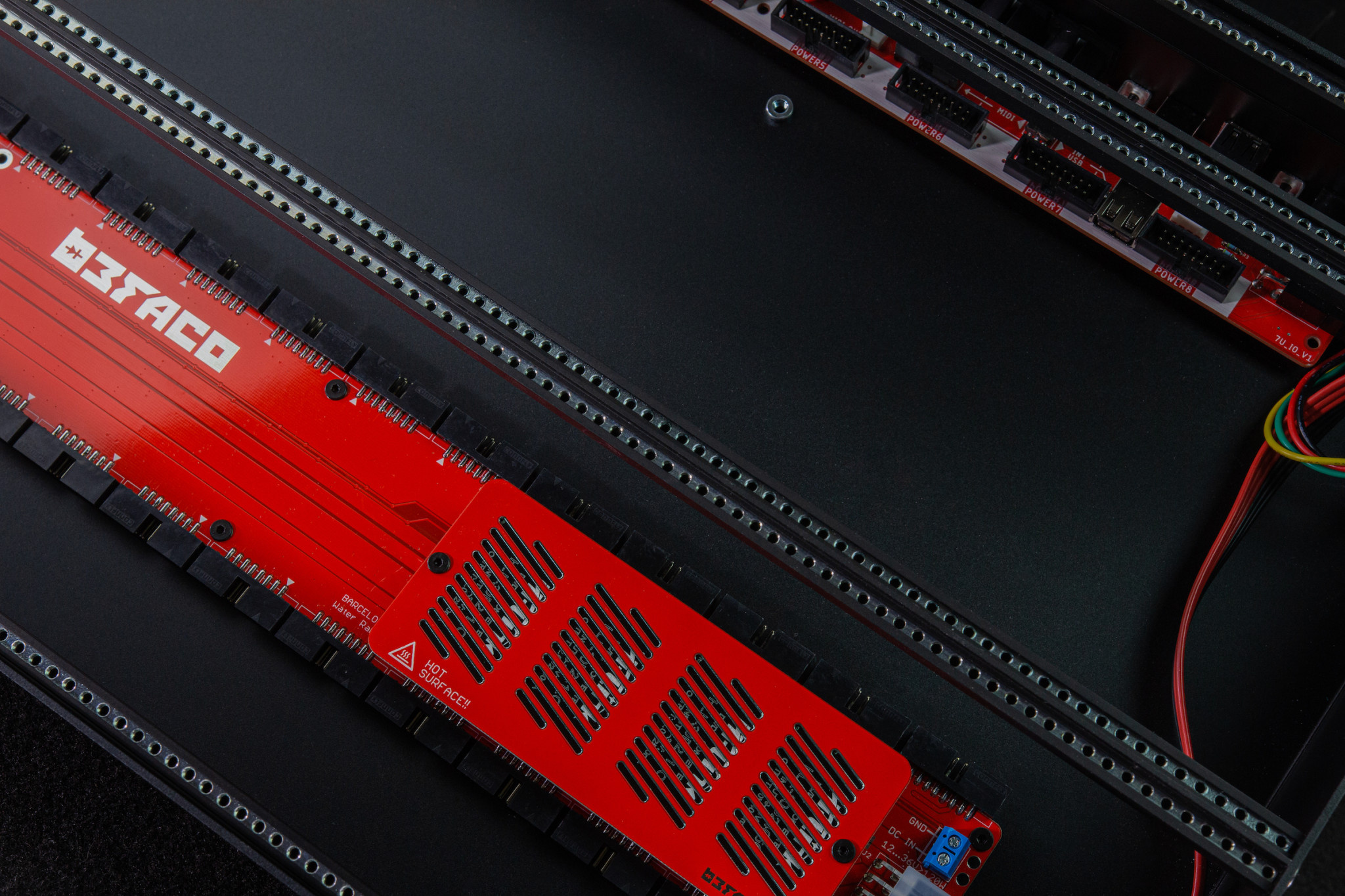

Because power is important, the new Trolley Bus systems drop up to 5,000mA on the +12V rail, 2,500mA on -12V, and 4,000mA on +5V with high voltage stability under load and low noise. The case drives up to 36 modules over its 208HP (3U) and 104HP (1U) rows (Intellijel format).

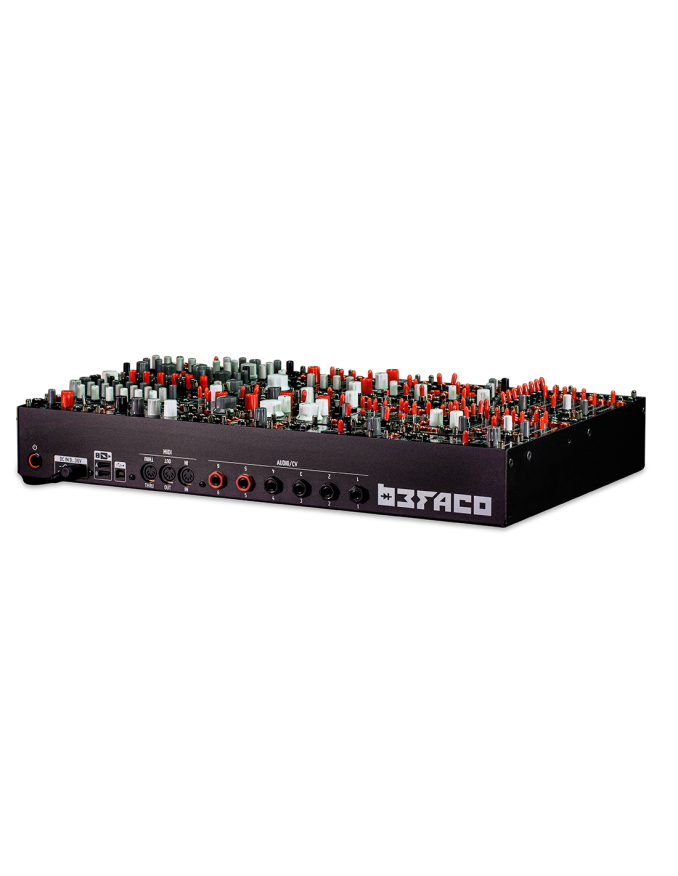

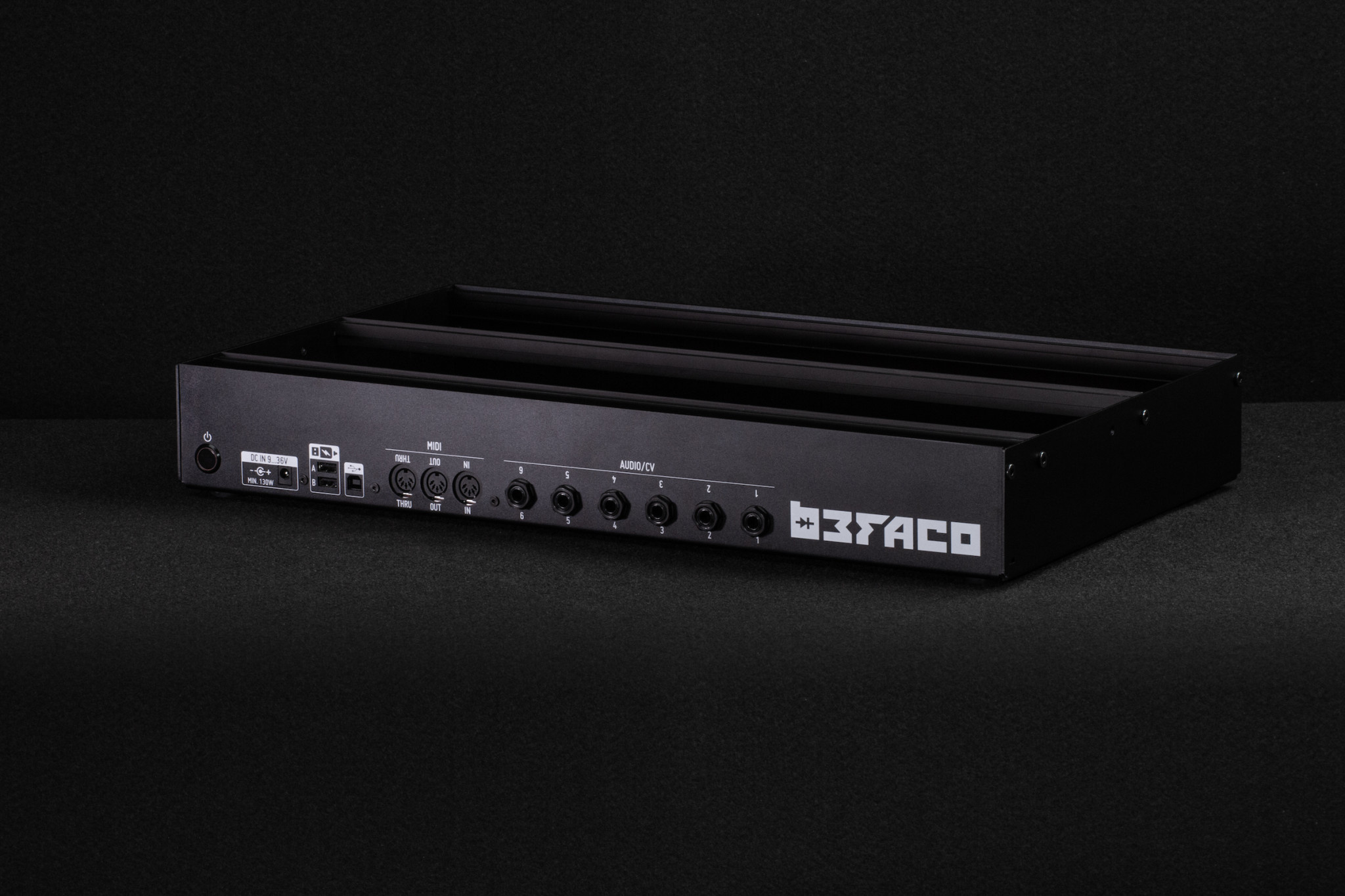

6x 1/4″ Jacks I/Os with Balanced and Unbalanced configuration, MIDI In/Out/Thru ports, USB Device Type B, and Apple compatible USB-A charging ports. The Befaco 7U Case offers a huge amount of connections fully accessible from its internal I/O Board.

Created with compatibility in mind, the rear panel ports are fully compatible with Intellijel 1U modules. The 1U row can be easily customized to be at the center of the case with just two screws.

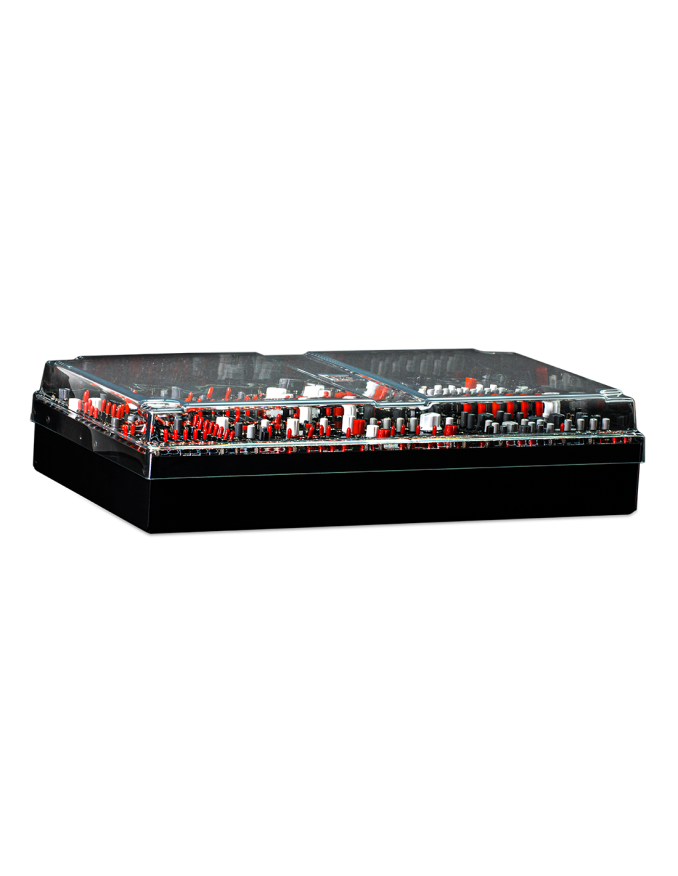

To keep your modules safe and dust free, a custom PET-G clear cover is included with the case. The cover has been designed to close patched, and a custom velcro belt is included to keep it safely closed.

To save space in your studio desk, the Befaco 7U Case is also Vesa mount fully compatible. It counts with Vesa threads at the bottom to easily attach it to desktop or wall Vesa stands.

Technical Specifications

  • Weight (without cover): 2.6kg
  • Weight (with cover): 3.4kg
  • Rear connectors: 6x 1/4″ Jack I/O (Balanced or Unbalanced), MIDI DIN In/Out/Thru, USB Device Type B, Apple compatible USB-A charging ports.

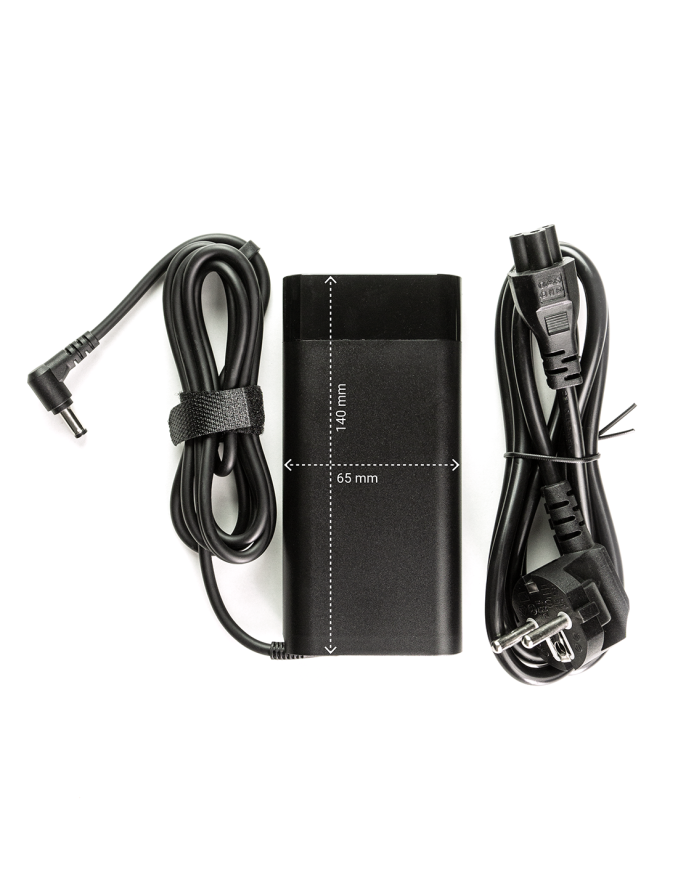

  • Power brick: 120W 2.5mm Barrel connector center positive (included)
  • Cover: PET-G Clear cover (included)
  • Finish: Black Anodised Aluminum
  • Vesa 100 format threads. Recommended Vesa stand: >12kg
  • Kensington Lock



PLEASE NOTE: NO modules are included with this case
