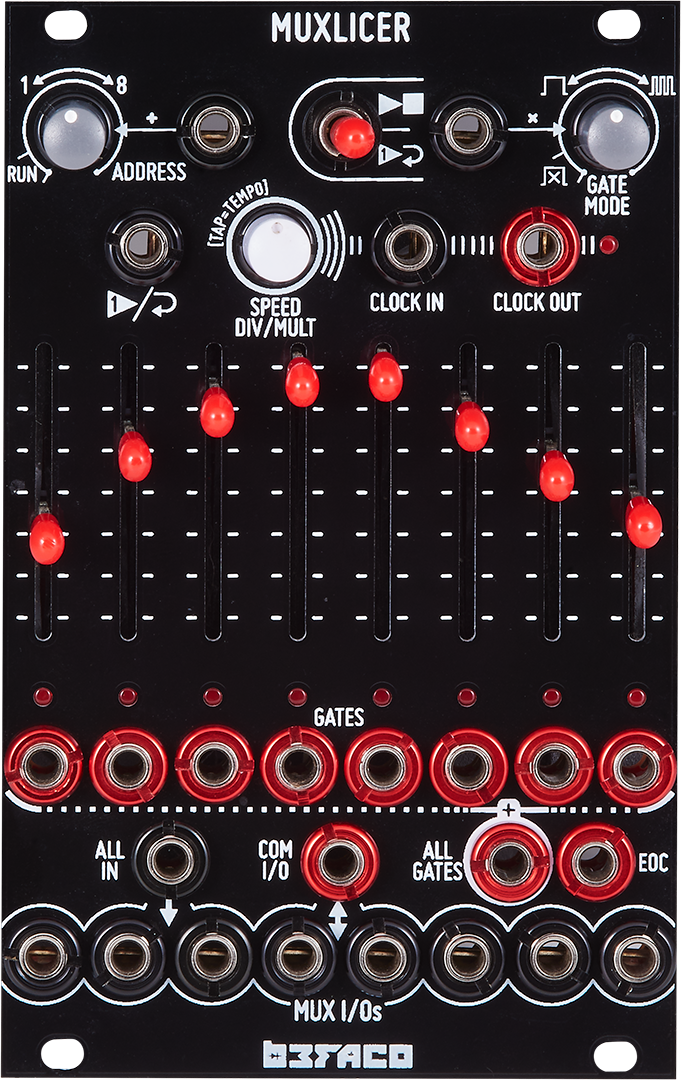

Befaco Muxlicer

$229.00
Available Immediately
Product number: CV4187

Sequential Signal Processor

  • +12V 45mA
    -12V 5mA
    +5V mA
    Width 16HP
    Depth 20mm

Description

Muxlicer is a sequential signal processor designed to add a huge range of special functions to your modular setup in the minimum space. It is divided in three main blocks: a Digital Step Controller, a Gate Generator and an Analog Switch (a.k.a. Mux/DeMux). The module is designed with high “function to HP ratio” philosophy, to have maximum flexibility in minimum space.

Through Common I/O you can either send a signal to the Mux I/Os or receive a signal from them. (Depending on how the module is connected). It is also used as CV Out when nothing is connected to “All In” or “Mux I/Os”. The eight Mux I/Os are normalled to “All In” jack, so any signal present at this input will go to all of them. Imagine you want to send a signal to steps 1,2,4,5,6 and 8 and two more signals to 3 and 7 respectively. You just need three wires for this: plug the first one to All In and the other two to 3 and 7 Mux I/Os and you are done!
  • Route any modular signal from one IN up to eight different Outs or vice versa.
  • Generate CV and Gate signals, been able to work as sequential voltage source a.k.a. sequencer.
  • Cut audio signals in rhythmical slices with independent volume.
  • Generate complex and dynamic patterns from any audio or modulation signal.
  • Create powerful Gate sequences with control voltage retriggering for each step.
  • Select easily when your signals act on your patch with the Address function.
