8-in/8-out ADAT Interface
+12V | 132mA |
---|---|
-12V | 90mA |
+5V | 0mA |
Width | 12HP |
Depth | 35mm |

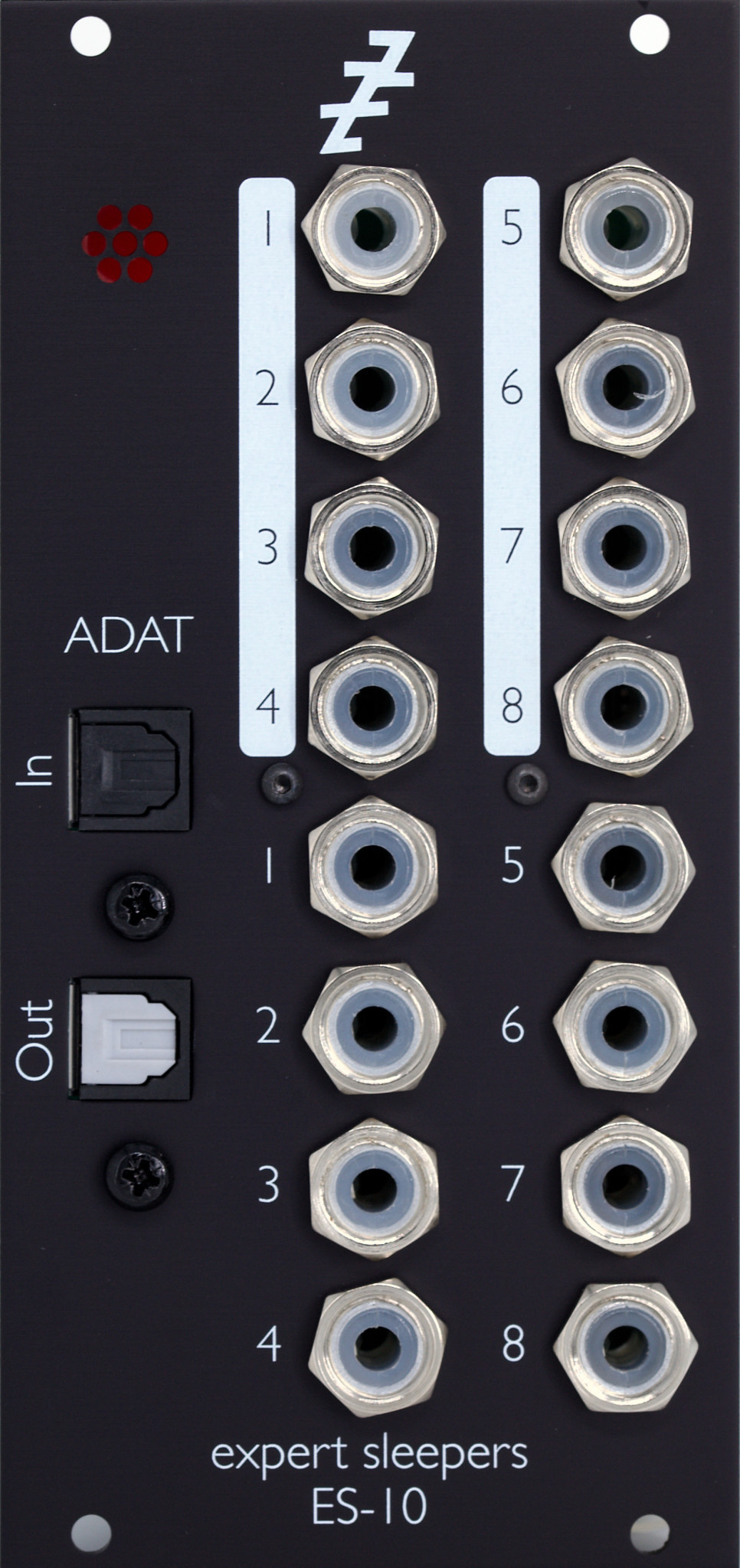

The ES-10 is a Eurorack 8-in/8-out ADAT interface, with DC-coupled inputs and outputs that can be used for both audio and CVs.
Each input can be individually selected for modular or line level operation.
The outputs can be expanded via the ES-5 module.
The ES-10 uses AKM 'VELVET SOUND' DACs and ADCs and low noise audio op-amps for the best possible sound quality.
Please note: the ES-10 cannot be used without an ADAT input connection (from the ADAT output port of your audio interface).
