Expert Sleepers

NTX-8CV, PRE-ORDER

$219.00
Pre-Orders Accepted
Product number: CV5842
Control Voltage


The ETA from Expert Sleepers is "mid-June" as of May 5th

  • +12V 74mA
    -12V 17mA
    +5V 0mA
    Width 4HP
    Depth 36mm

Description

USB MIDI to CV & Audio/CV Interface

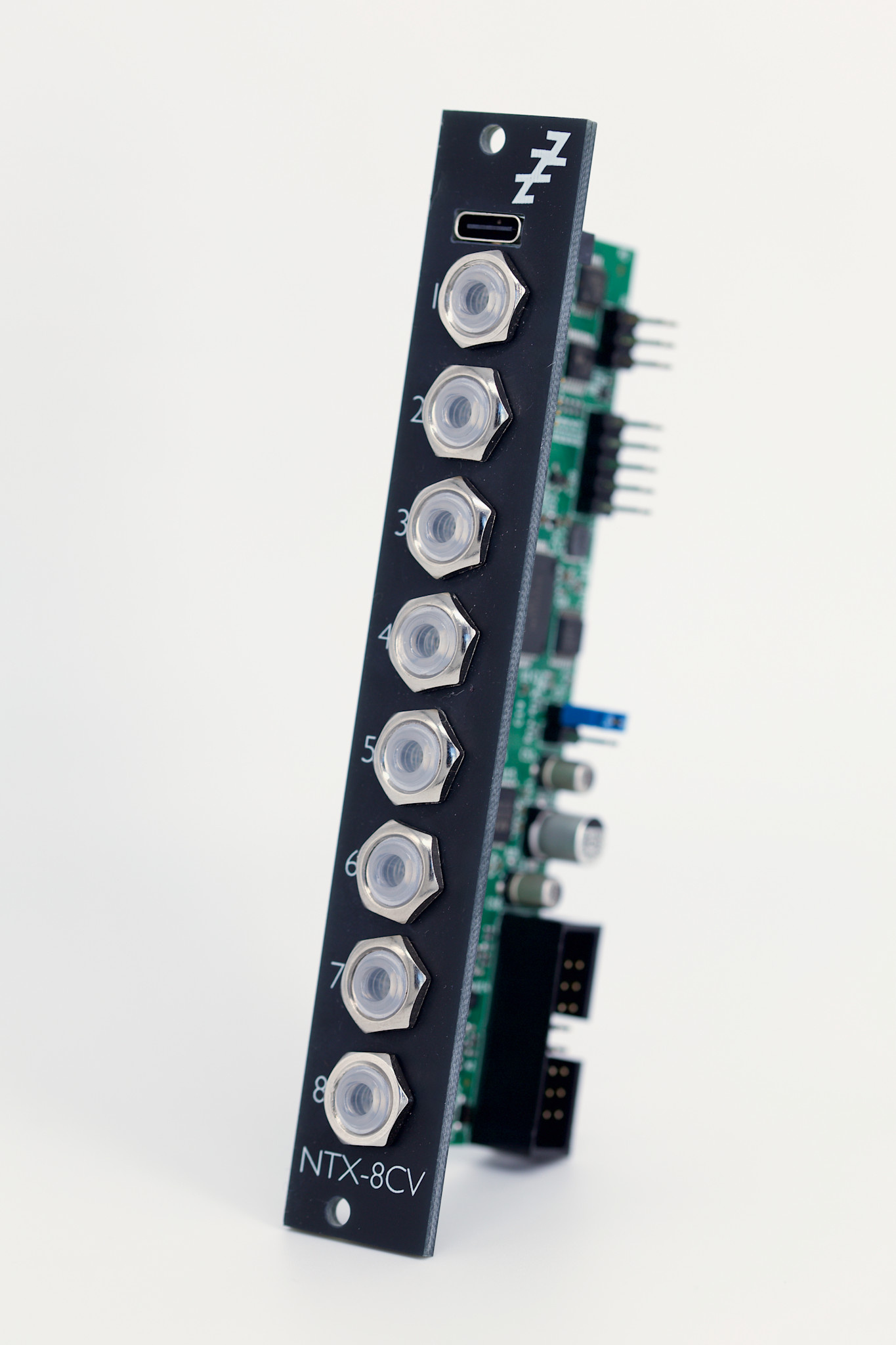

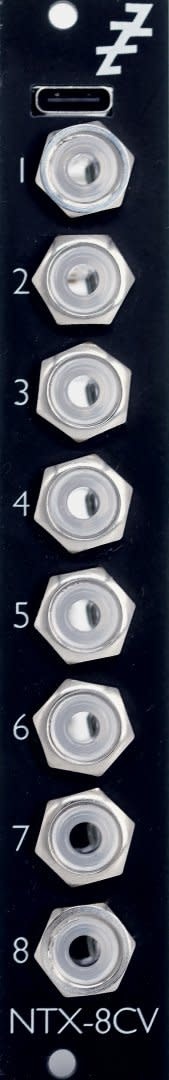

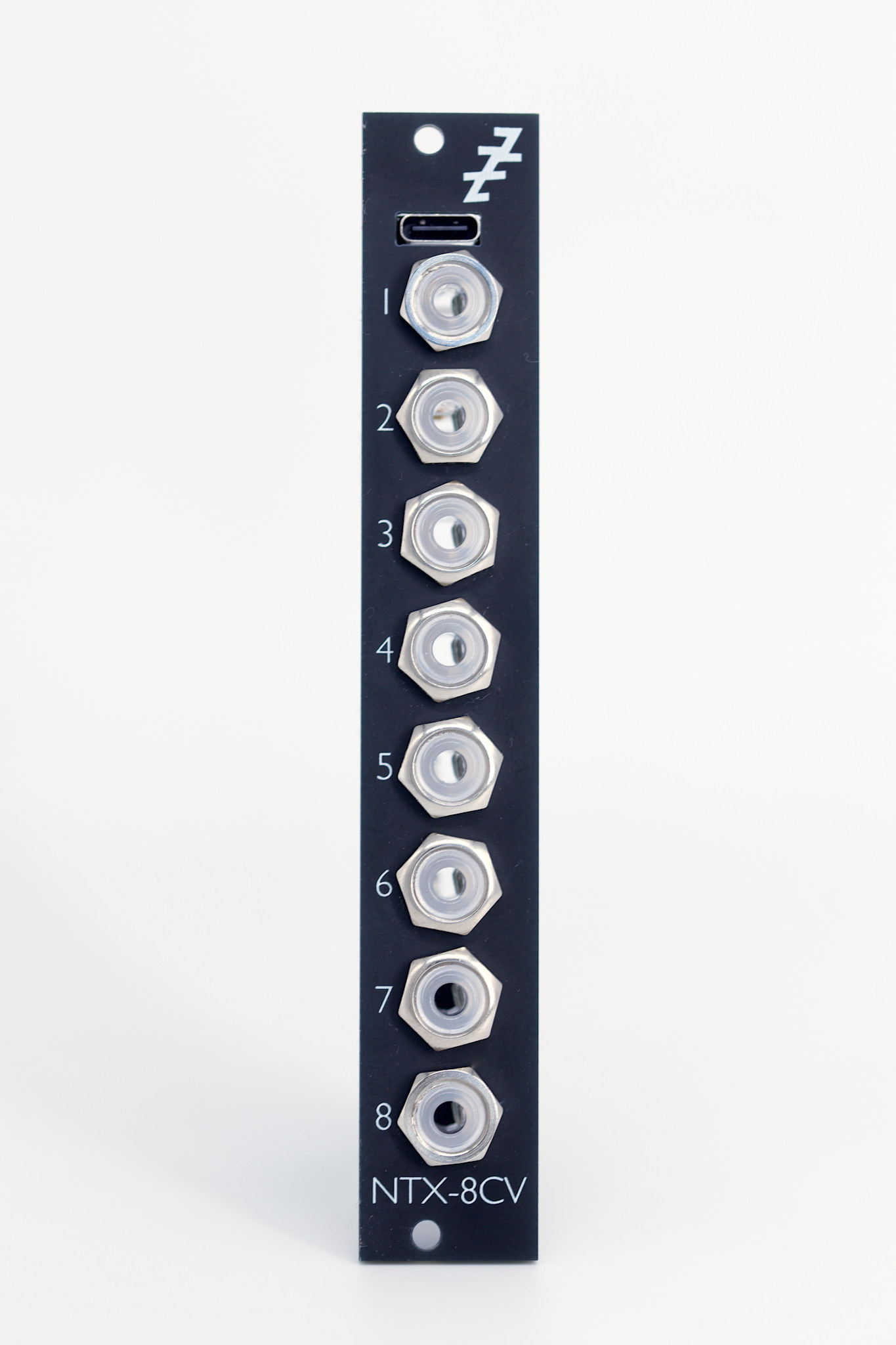

The NTX-8CV is a 4HP Eurorack module with three quite distinct purposes.

USB MIDI to CV converter

The NTX-8CV offers MIDI/CV conversion, using a design based on our best-in-class FH-2, but in a more compact form factor.

Its dual role USB port allows the NTX-8CV to operate both as a USB MIDI Class compliant device (e.g. connected to a computer or tablet) and as a USB host (so you can plug a USB MIDI controller straight in).

USB audio/CV interface

The NTX-8CV operates as a USB Audio Class compliant device, offering 8 channels of DC coupled audio or CV outputs (and so is compatible with Silent Way, CV Tools, Bitwig Studio etc.).

disting NT output expander

The NTX-8CV connects directly to a disting NT, adding 8 CV outputs. Additional NTX-8CV units can be daisy-chained for up to 64 extra CV outputs (on top of the NT's own 8).

The output ports have exactly the same technical specifications as those on the disting NT itself.


Specifications

The NTX-8CV's specifications are as follows:
  • Outputs: 8, DC coupled
  • USB: Type C, Dual Role (host or device)
  • PCB headers:
    • Input from disting NT
    • Output to further expanders

PLEASE NOTE: A USB cable is NOT included
