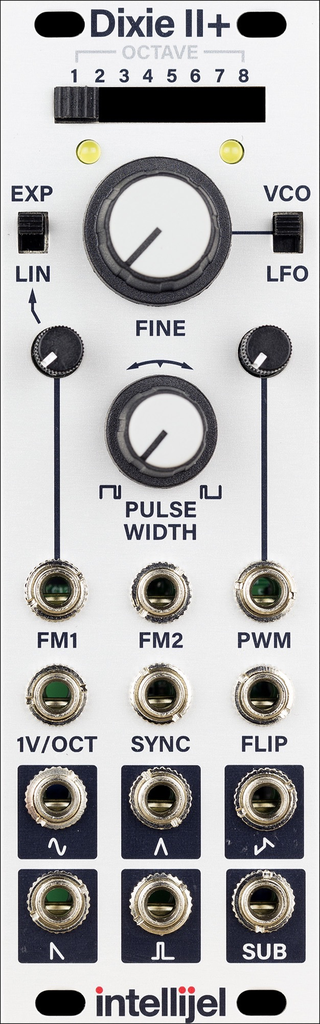

Dixie II+

Out of stock
Product number: CV1983

Full-featured triangle core VCO/LFO

  • +12V 70mA
    -12V 60mA
    +5V 0mA
    Width 8HP
    Depth 40mm


Full-featured triangle core VCO/LFO

The Dixie II+ is a larger variant of the classic Dixie II. Using the same great triangle core oscillator, it adds a number of features to make it even more versatile with only a modest increase in size. The Dixie II+ makes a great primary oscillator for a modular system, or a great companion the Rubicon.

• 8-position octave switch for quick setting of course tuning
• Fine tuning knob that turns to a coarse knob when in LFO mode
• Dual FM inputs, with FM1 attenuator and switch to select between exponential and linear mode
• Pulse width control with attenuator
• Reset to 0 V hard sync input, ideal for percussive sounds or modulation
• Flip sync circuit similar to but improved from the Dixie II
• 6 waveform outputs: sine, triangle, zigzag, saw, pulse and suboctave

In the Box
• The module itself
• Eurorack Power Cable
