Intellijel Dual VCA_1U

Not yet rated | Create your own review
$ 99.00 Total

Dual / Stereo Linear DC Coupled Voltage Controlled Amplifier

Not Available
Product number:
CV3553

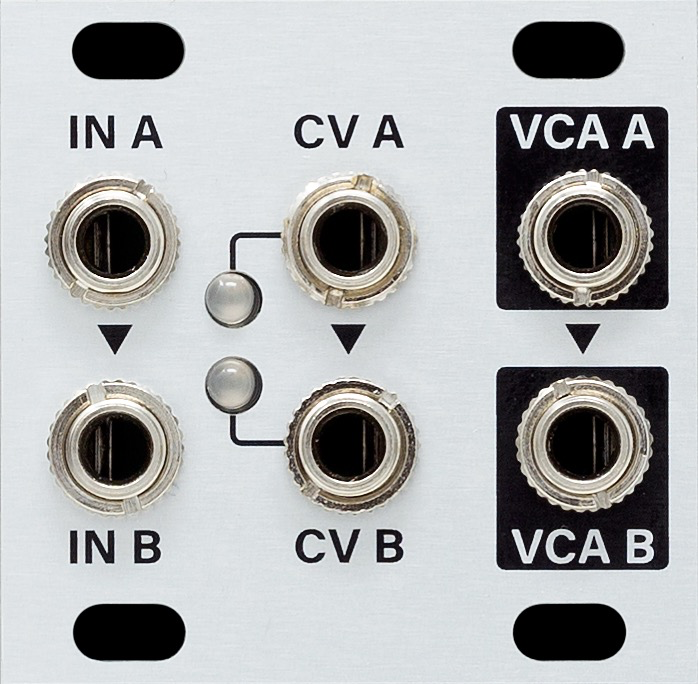

Dual / Stereo Linear Voltage Controlled Amplifier

You can never have too many VCAs! Amplify, dynamics, mix, boost, AM synthesis and much more in a super compact package. The Voltage Controlled Amplifier or “VCA” is one of the most essential and useful building blocks in a synthesis patch. The Dual VCA 1U packs two high quality, DC coupled, linear VCAs into a very compact 1U package. The two VCAs can be used completely independently or in tandem via the handy signal normalling. The DC coupling means that the VCA can be used for the amplitude control of both control voltages (CV) and audio signals.

Features
• Two high quality and precise DC coupled, linear VCAs
• IN A normalled to IN B
• CV A normalled to CV B
• OUT A normalled to sum with OUT B
• Voltage/signal doubling (use input A only and the doubled voltage will appear at OUT B when a CV of +5V applied to CV A)

In the Box
• The module itself
• Eurorack power cable

+12v: 37mA
-12v: 40mA
+5v: 0mA
Width: 8HP
Depth: 29mm
