Landscape

Noon

$770.00
Available Immediately
Product number: CV4285



Passive Drum Synth

Description

Overview✺

  • WHO❀ Noon
  • WHAT❈ An 8 channel powerless instrument which is activated and modulated using voltage from external sequencers.
  • HOW✷ Analog circuits are powered momentarily by incoming gate and control voltage signals causing them to oscillate and breath naturally. When these circuits are linked together they can grow, inform and process one another in complex rhythmic ways.
  • WHY❃ This technique increases the unstable properties of analog circuits, causing increased organic textures and movement. The simple controls are provided to ensure immediacy and access to rapidly alter sounds and movement without patching.
  • WHERE✾ The simplicity of the interface was designed with live performance in mind. The number of internal and external variables (control voltage types, linked channel behavior plus external audio input) create lots of room for studio exploration.

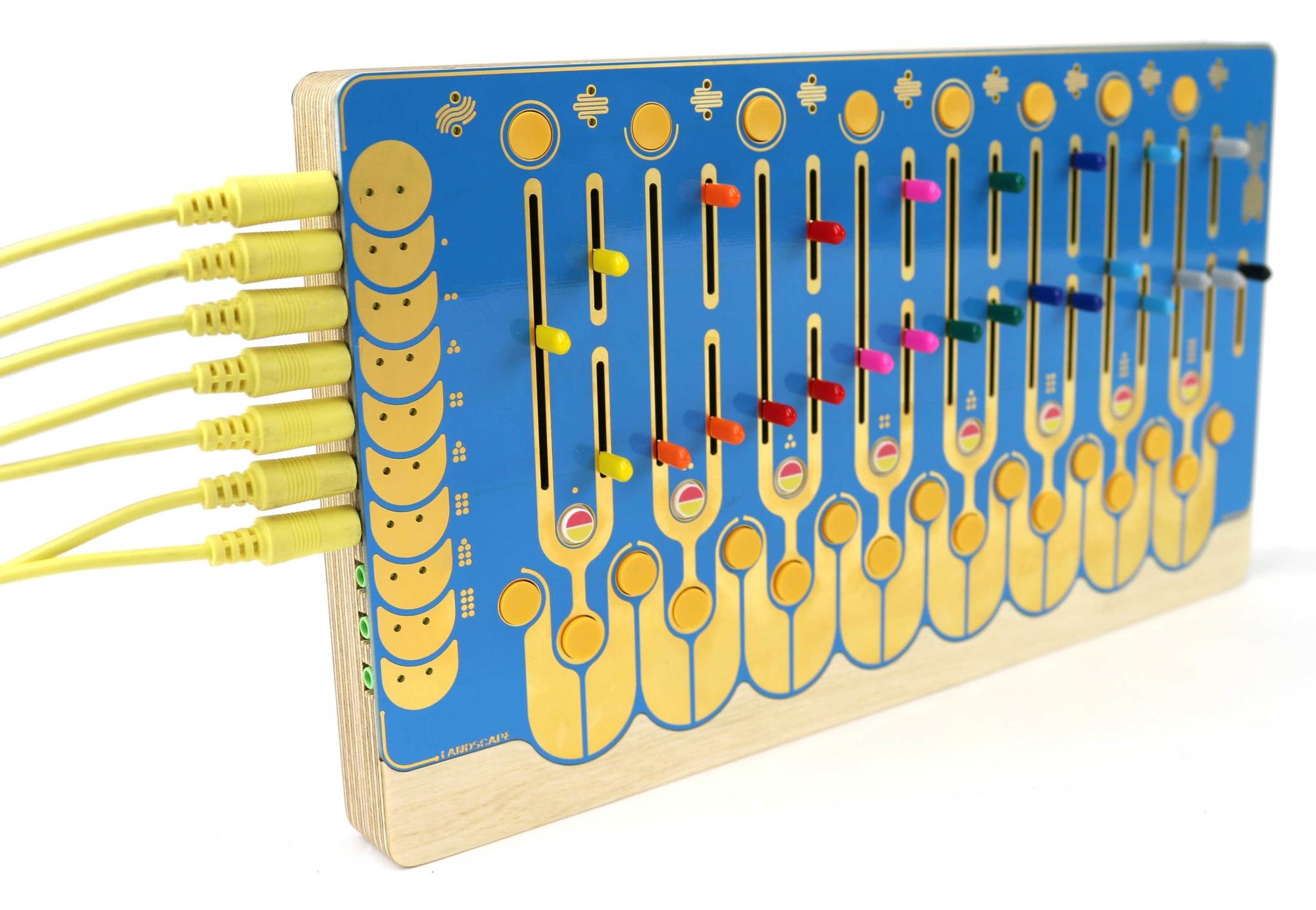

NOON is a passive analog drum/synthesizer. Each of the eight channels uses a unique analog circuit with its own characteristics. No power supply is needed. Each circuit is triggered and powered individually from incoming gates or control voltages provided by voltage sequencers or modular systems. By using this unique method, we can increase instability and magnify organic aspects of traditional analog electronic instruments. The sound of analog, at its core, is the sound of sculpted electricity. By removing the stabilizing elements of a constant power source, we can listen to the sound of electronic circuits loading and unloading, powering up and powering down, and we can increase the natural chaotic movement of electricity. The loading of circuits creates natural ways to access swing and groove or ways to deconstruct a programmed rhythm sequence to make surprisingly new ideas.

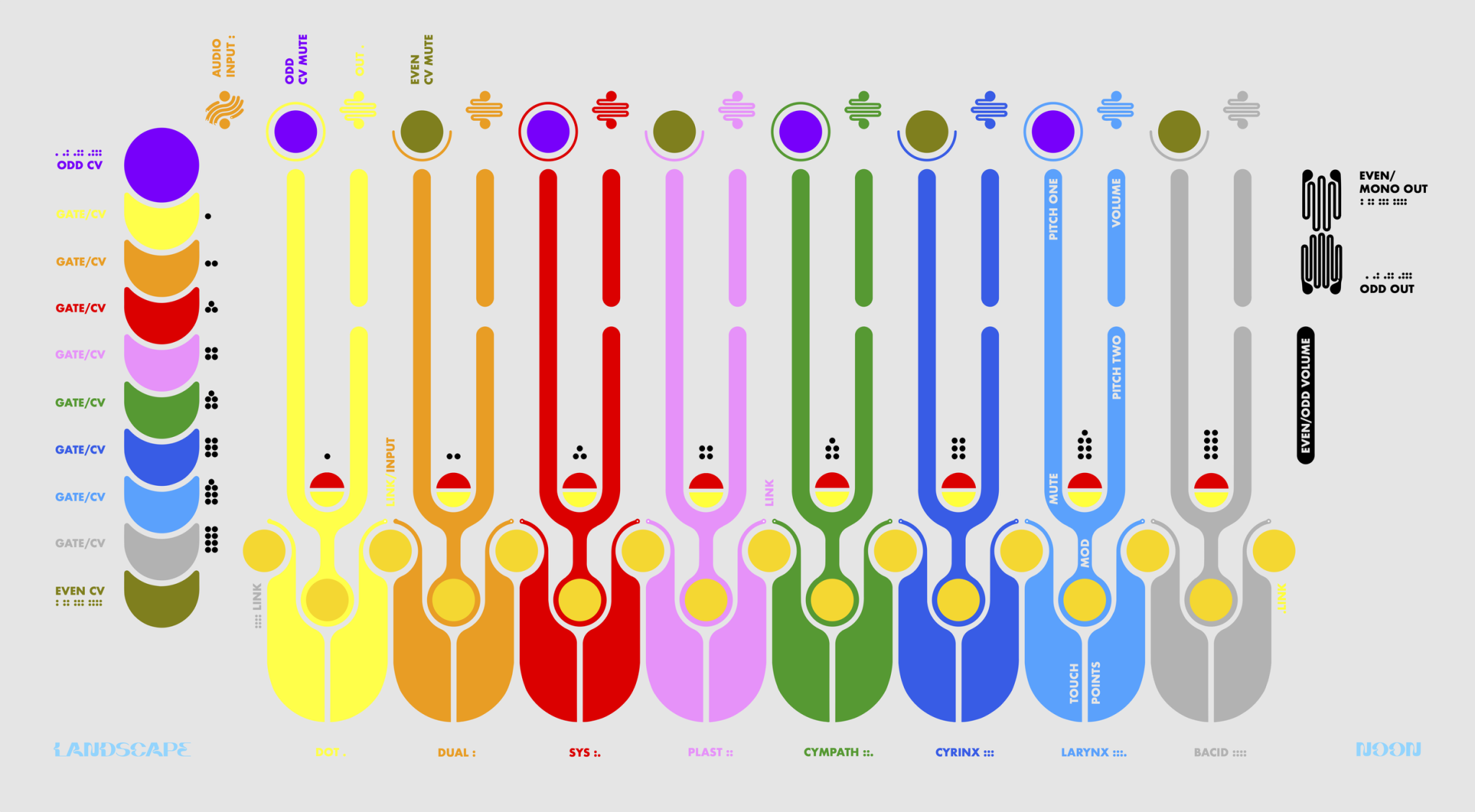

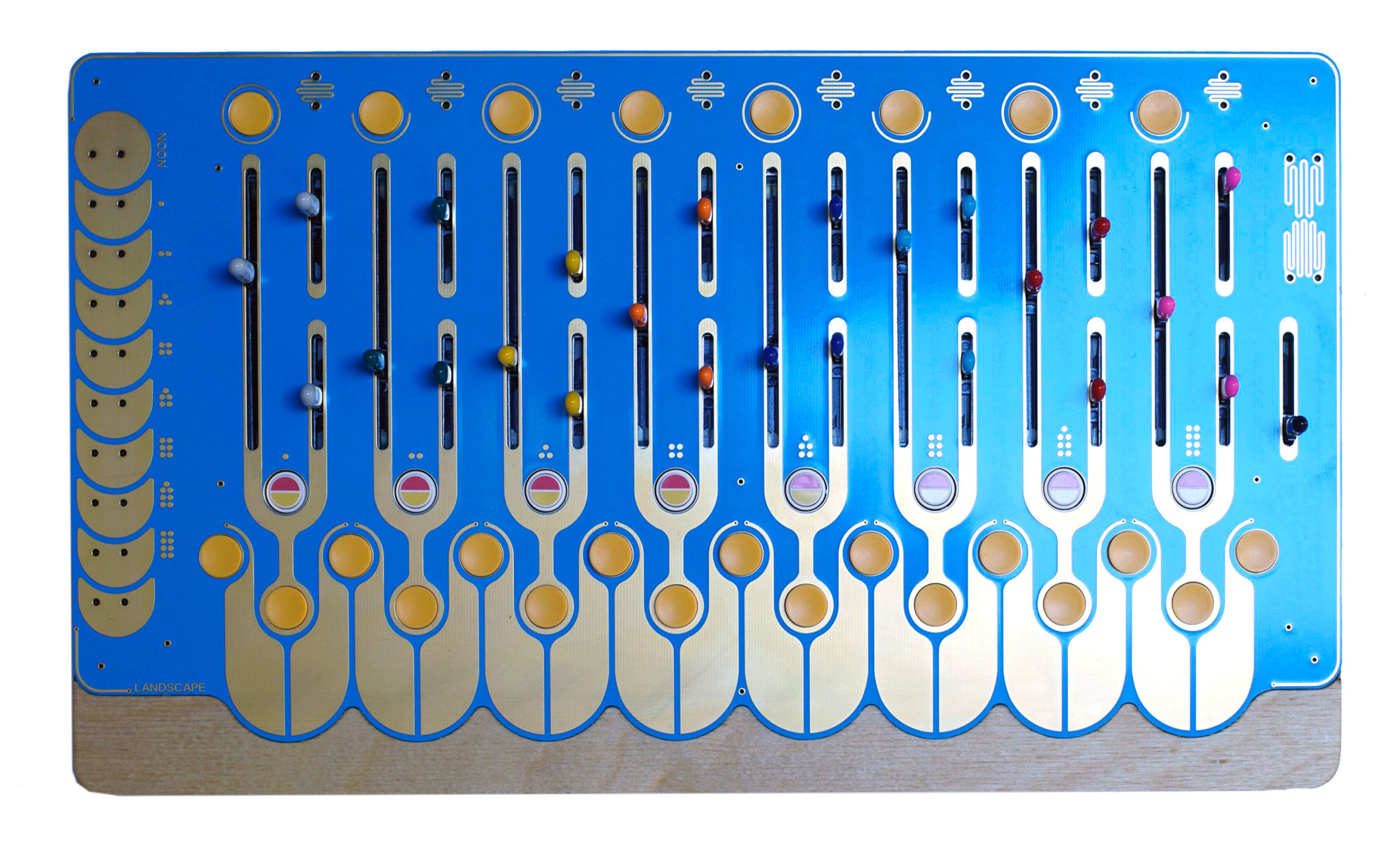

Each channel is represented by a tuning fork. Incoming voltage can be thought of as a way to “strike” each fork with momentary voltage. Between every channel there are Link buttons which allow voltage sharing between channels. Linking them provides a wide mix of results depending on incoming voltage, active or inactive channels, slider settings, gate lengths and multichannel linking. The results can be described as cross modulation, growth (creating a larger and more complex circuit), or processing (filtering, distortion). Due to the cycles of voltage and this inherent instability, a definition of what is actually occurring between channels can be hard to pin down. The eight Mod buttons, which are located at the bottom of each tuning fork, change the behavior and sound of each circuit. The eight latching CV buttons along the top allow the “☾” Even and “❍” Odd CV modulation inputs to route to even and odd channels. When incoming CV is unmuted, a channel’s behavior can change drastically and this behavior can change further when channels are linked. These CV inputs are a way to add microtonal pitch changes and/or large textural movement to voices. The Even and Odd CV inputs are summed to their respective channels to provide a rhythmic modulation reference between multiple channels. ⏚

Specifications

  • Dimensions: 32cm x 18cm x 2.5cm / 12.5” x 7” x 1”

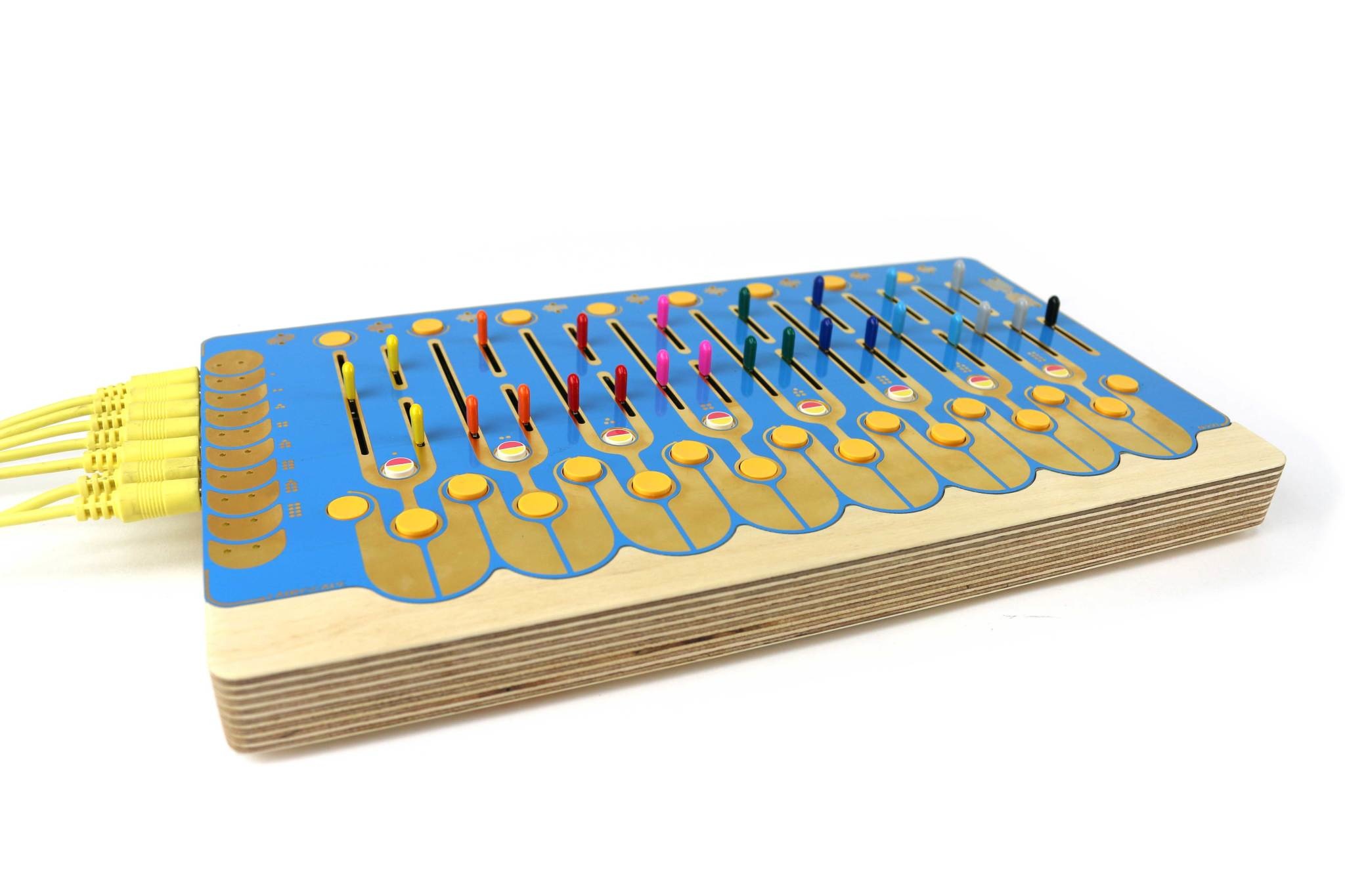

  • Materials: Gold plated PCB (2mm fiberglass) / routed Birch plywood case with clear coat / metal shaft sliders with rubber caps / concave and dual LED latching push buttons
  • Weight: 0.9 kg. / 2 lbs.

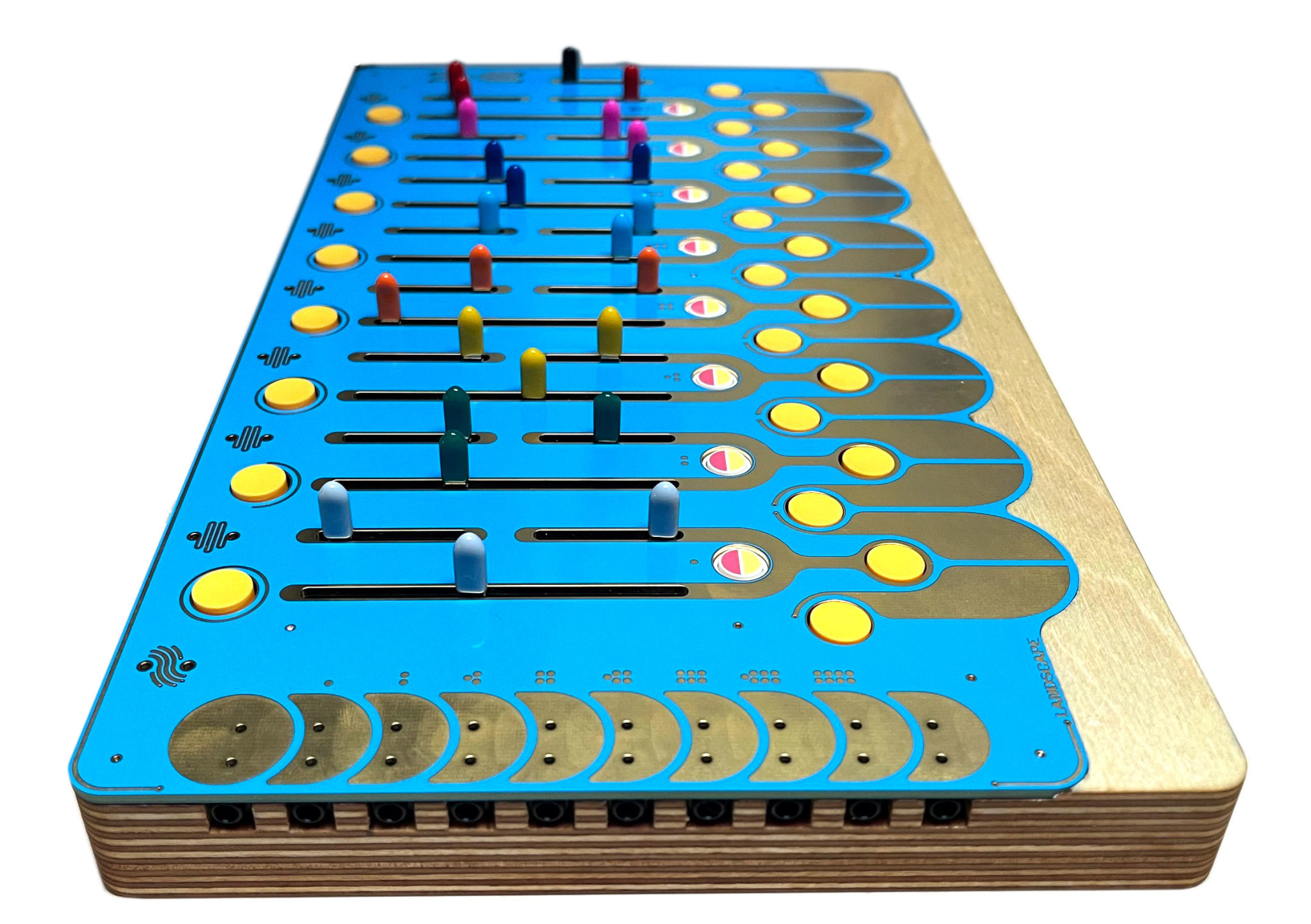

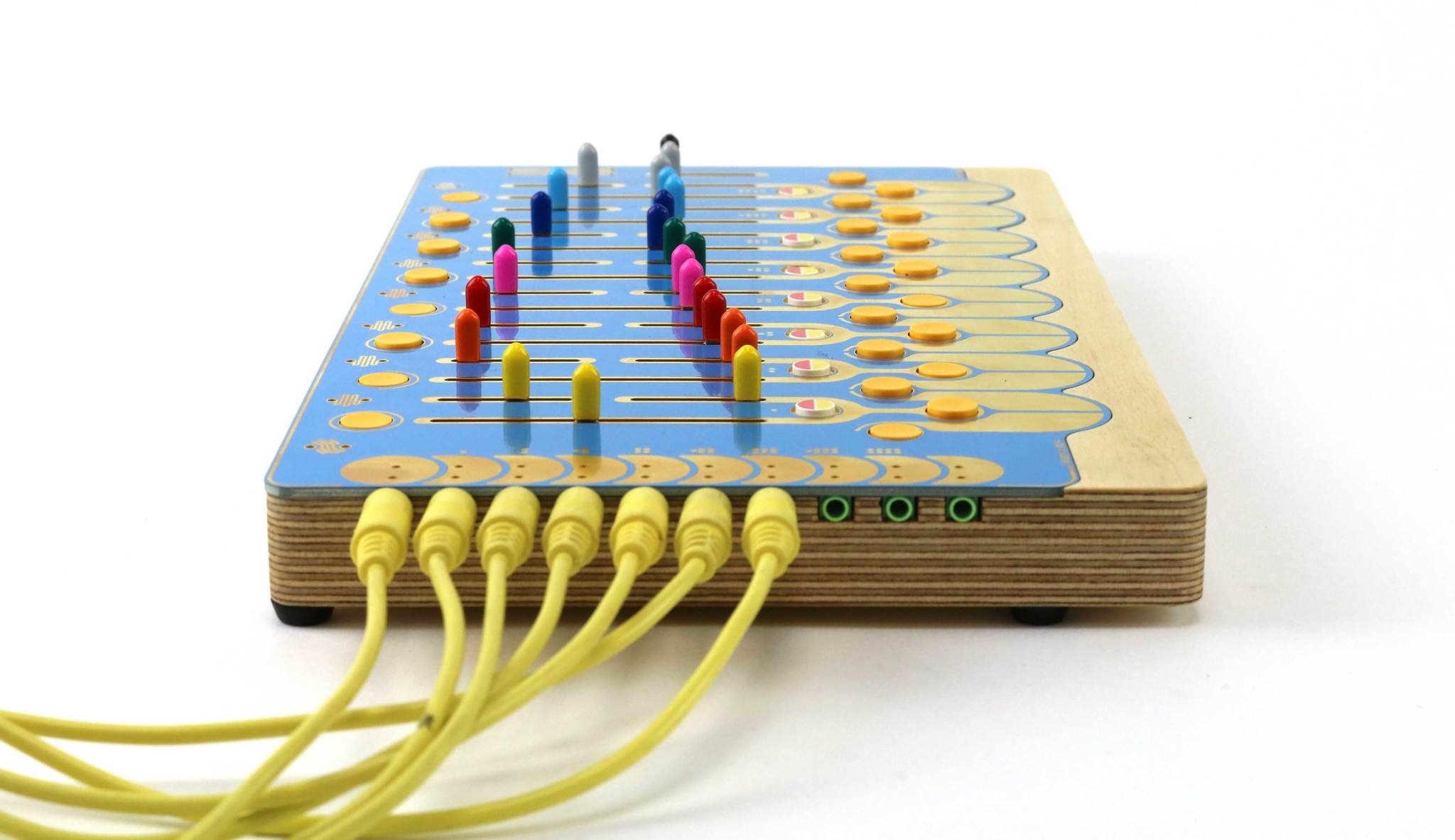

  • CV Inputs: 10 x 3.5mm jacks
  • Audio Input: 1 x 3.5mm jack
  • Audio Outputs: 10 x 3.5mm jacks
