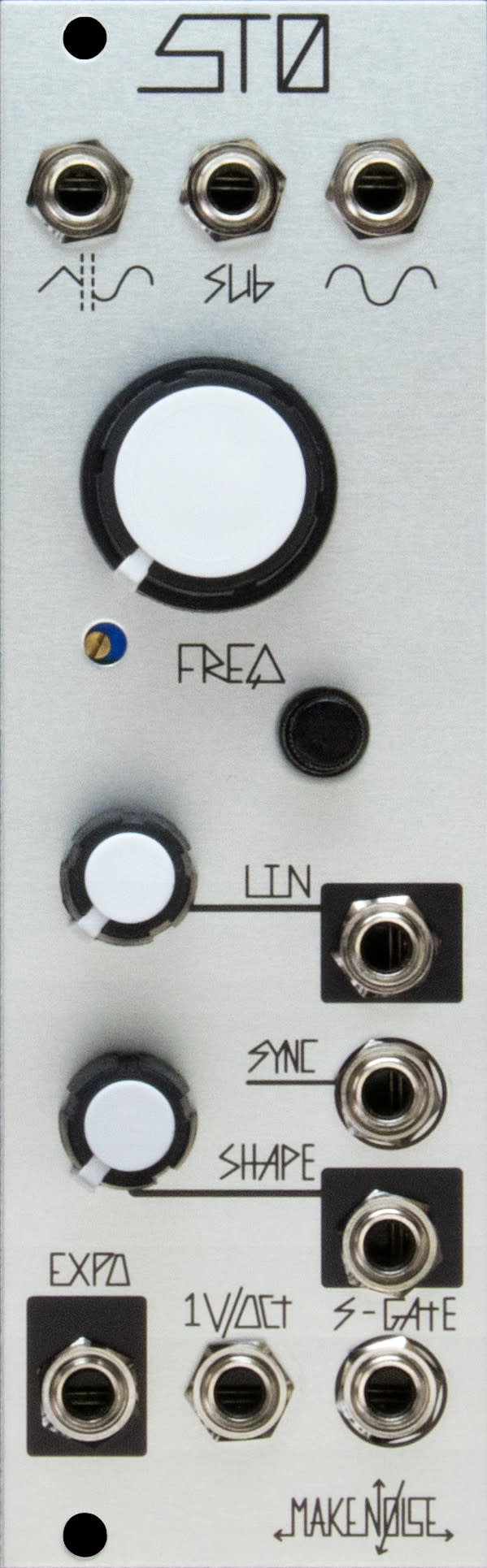

Make Noise STO

Not yet rated | Create your own review
$ 199.00 Total

Sub-Timbral Oscillator

Available Immediately
Product number:
CV0980
Quantity:
Add to cart

Sub-Timbral Oscillator

A compact Voltage Controlled Oscillator designed for generating SINE waves, Variable wave-SHAPEs, SUB-Octaves, Oscillator SYNC and Linear FM in the analog domain. The Sub-Timbral Oscillator is the more subtle and melodic friend to the DPO's complex harmonic lattice.

Features
• Triangle Core with outputs for SINE, SUB and Variable SHAPE
• Unique Variable SHAPE circuit ripples Even and Odd harmonics for subtle timbral shifts
• Linear FM input with Depth control
• EXPOnential input for deep FM, SYNC sweeps or Transposition of sequences
• SUB-Oscillator yields max bass
• S-Gate input for gating or sync of SUB-Osc. independent of other outputs
• Hard SYNC circuit which combined with Linear FM and Variable SHAPE yields harmonically rich sounds

Inputs
• 1 Volt/Octave
• Exponential In
• Linear FM In
• S-Gate
• Shape
• Sync

Outputs
• Vaiable Waveshape
• Sub-Oscillator
• Sine Wave

Controls
• Frequency
• Linear CV Attenuator
• 1V/Octave Scale Trimmer
• Fine Tune Panel Control
• Shape CV Attenuator
• Mod Bus

In the Box
• The module itself
• Eurorack Power Cable

+12v: 40mA
-12v: 30mA
+5v: 0mA
Width: 8HP
Depth: 30mm
