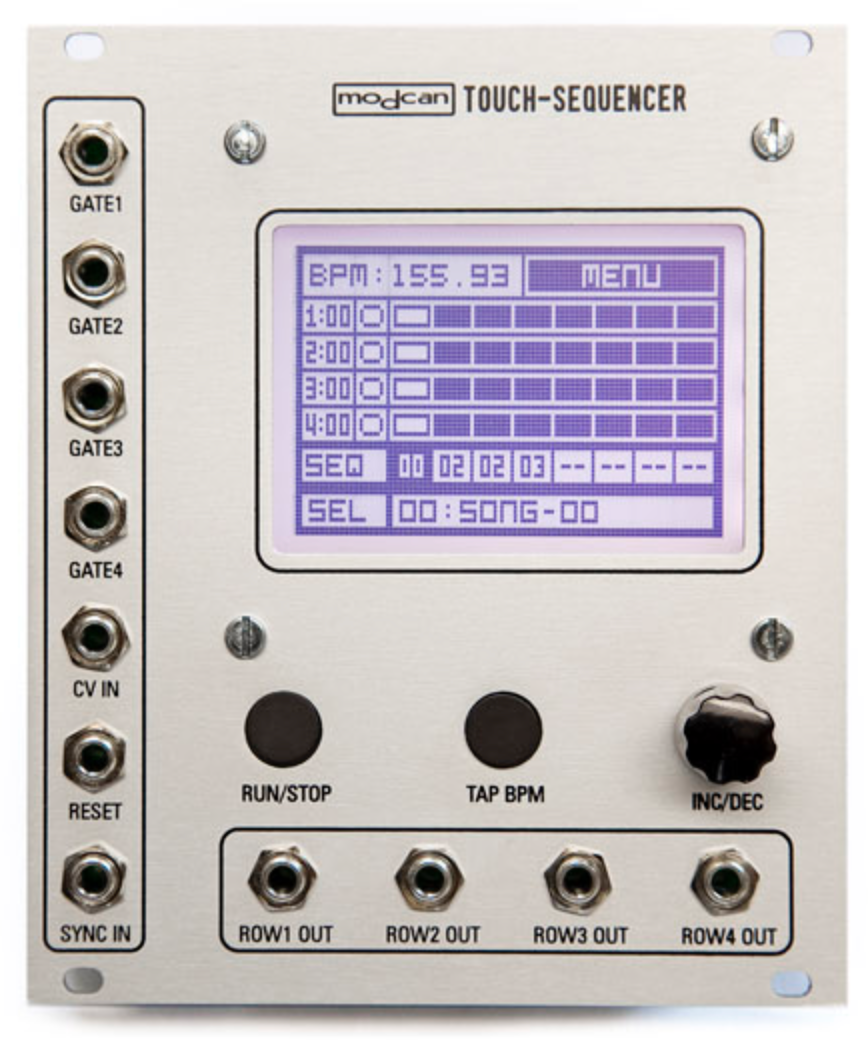

Digital four-track touch screen sequencer with memory and CV/Gate outputs

Specs:
Voltage Range for CV ROW outputs:
Quantized 0-4V = 4 Octaves
Un-Quantized 0-7V = 7 Octaves
Gate Outs 0-5V
CV input 0-10V
BPM (internal clock mode) 10-580 BPM
External 0-60000+ BPM (Audio Range)

Power Requirements:
190mA @ +12V
10mA @-12V

• Features:
• Resistive Touch screen control of all sequence parameters
• 4 rows of sequencing with up to 64 step length with chaining
• each row has own clock with variable row length
• Each of the 4 rows has separate GATE, PITCH ,NOTE Length and Slew control for a total of 16 rows of sliders.
• Memory storage for 99 Sequences and 32 Songs and all preferences
• Up to 8 sequences can be chained together into a song with 1-31 repeats per chained event
• Built in Quantizer with both pre-set and user defined scales
• Quantize scales can be designed in real-time while sequencing<
• Each row can have its own quantization scale or OFF
• 4 independent clock dividers
• 1:1 external clocking and 24ppq clocking modes
• Tap BPM
• CV modulation input can be routed to any or all 16 pitch,gate,note length and slew destinations.
• Reset for external Run/Stop control
• Random modes for each row independently and with external switching
• Performance mode for real-time switching between sequences
