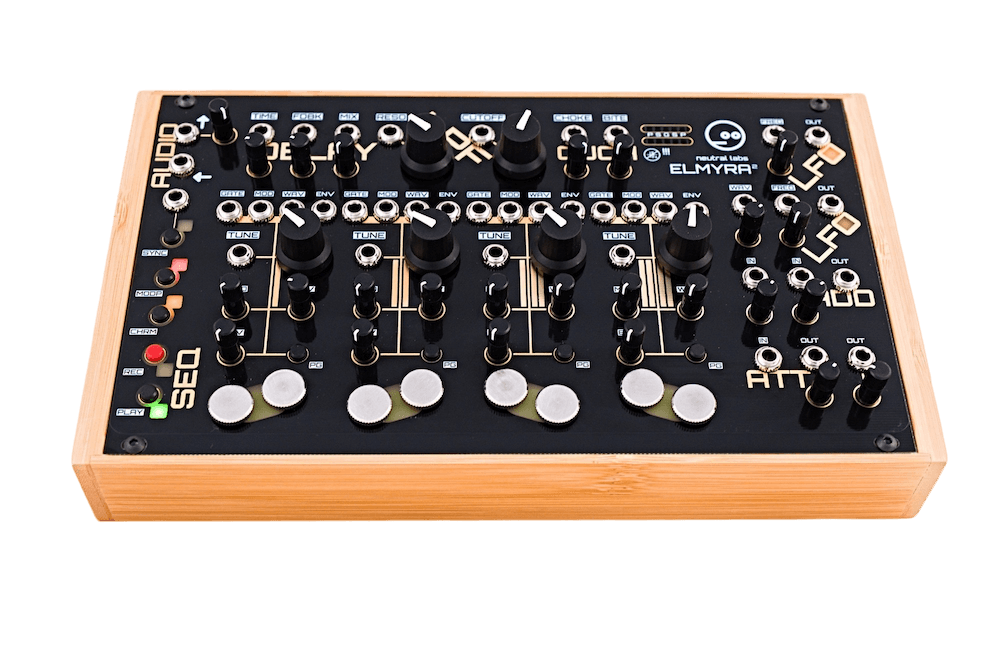

Elmyra 2 is a 4-voice digital/analog hybrid drone synthesizer and platform for microtonal sonic exploration, capable of creating anything from lush ambient soundscapes to gritty droning textures and shrieking noises, available as a 42 HP Eurorack module or semi-modular desktop synth. With 31 modulation targets, 4 polymetric sequencers, delay, additional per-voice effects, a choice of various filters, as well as onboard LFOs and utilities, it is essentially a purpose-built small modular system in itself. A set of preset cards (included) or electronic components like capacitors or diodes can be plugged into the front panel in order to change the sound character.

Feature overview (firmware v2.2.1):

• 4 independent voices activated by touch or CV
• Wavetable-based complex oscillator engine, up to 12 oscillators in total, 1V/octave compatible
• Chromatic mode makes chords and harmonic sounds possible, microtonal scales supported
• 41 patch points
• 31 modulation targets
• Touchpads with analog envelopes that can be used as modulation sources
• Filter switchable between:
  • Boomy and aggressive multimode 2-pole state variable filter (low-pass, band-pass, high-pass)
  • Creamy 4-pole low-pass ladder filter
  • High-pass and low-pass in series or parallel
  • Base-width filter as bandpass or notch
• Delay with unhealthy amounts of feedback
• Lo-fi reverb
• Analog OUCH circuit: a unique combination of destructive distortion, waveshaping and filtering
• Sonic character can be customised by using special preset cards (set of 4 included) or components like diodes that can be plugged into the front panel
• Preset cards can be used with other Neutral Labs modules
• External audio can be processed via audio input
• 10 per-voice modulations and effects:
  • Unison detune
  • Dual sub-oscillators
  • Chord mode
  • Waveshaper
  • Saturation
  • Bitmangler
  • Sample rate reduction
  • Noise
  • High-pass filter
  • Low-pass filter
• 2 complex LFOs that also work in sample&hold or sample&glide mode
• 4 sequencers with arbitrary step length per voice (up to 128), allows polymetric structures
• Delay time and LFOs can be clock-synced or unsynced (tap tempo is also possible)
• Utilities
  • Dual attenuator/buffered multiple/voltage generator
  • CV summing circuit
• Solid bamboo case (desktop version)

Note: For sustainability reasons, the desktop version does not come with a USB power supply, just a USB-A to USB-C cable. You will need a 5V supply, such as a phone charger, power bank or laptop. The desktop version has a Eurorack power header and can be placed into a Eurorack. The desktop case however has 5V USB power and no Eurorack rails, you cannot use it as a 42 HP rack without modifications.
