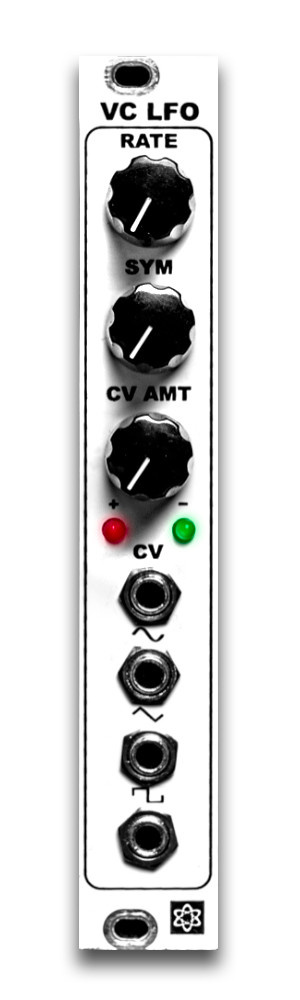

VC LFO

MST Voltage Controlled Low Frequency Oscillator is another tiny, useful module packed to the gills with features. Manual and CV control over rate with 3 discrete waveform outputs. A square wave can be used to clock modules such as our Noise, Sample & Hold module. Great for creating vibrato, tremolo or other classic modulation techniques. Great for frequency modulation, especially when connected to the MST analog VCO.

Features:

Voltage Control rate input with attenuator control

Manual rate control

Slew/Symmetry control

Positive and negative LED indicators

Square, triangle and sine wave outputs

Specifications:

Manual range: Approx 51 Second to Approx 102 Hz

Time with Max range, +5V CV: 1,450Hz

Time with Max range, -5V CV: 1 Hz

Time with Min range, +5V CV: 2 Hz

Time with Min range, -5V CV: 1.5 Hours

Skew range, all waveforms: 14% to 86%
