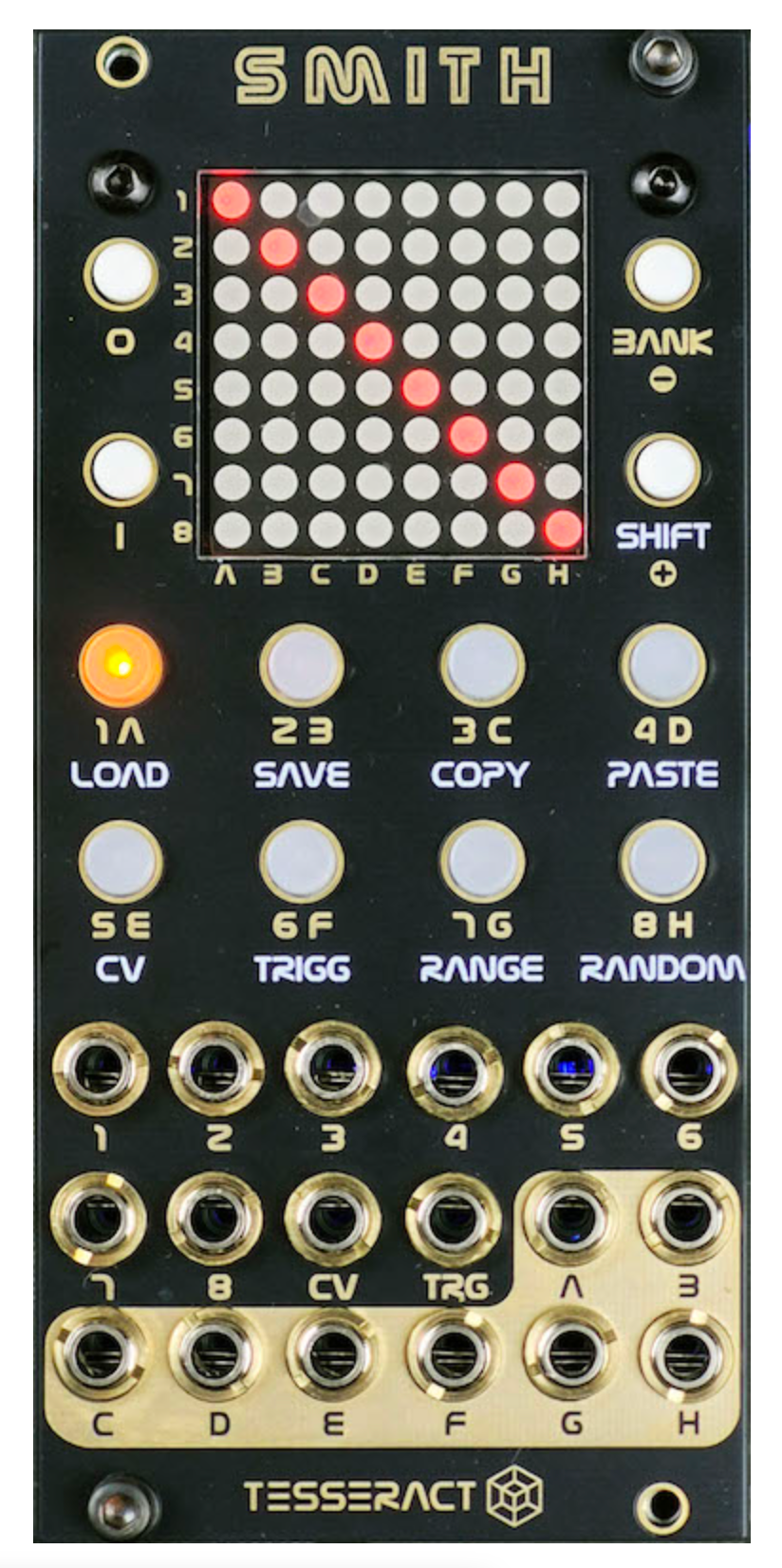

8x8 Programmable Matrix

Smith it’s an 8 inputs & 8 outputs precision buffered matrix with presets.

Each of the 8 outputs can take the signal from any of the 8 inputs, allowing over 16 million possible combinations.

This is not a mixer, the same input can be routed to many outputs, but several inputs can’t be present at the same output simultaneously.

The module works with both audio and CV signals, ins & outs have  ±10 volts range and minimum offset (1 millivolt approx.), which makes it perfect for distributing V/Oct signals too.

Features:

• 8 scenes that can be accessed through the dedicated push buttons but also by CV and trigger
• 8 banks (with 8 scenes each, 64 scenes per preset)
• 8 persistent presets (with 8 banks of 8 scenes each)
