Ashun Sound Machines

Leviasynth Desktop, PRE-ORDER

$1,799.00

Pre-Orders Accepted

Product number: CV5606

The ETA from ASM is "Shipping shortly after NAMM!" as of Jan 19th

Description

A Sound Designer's Dream Synthesizer

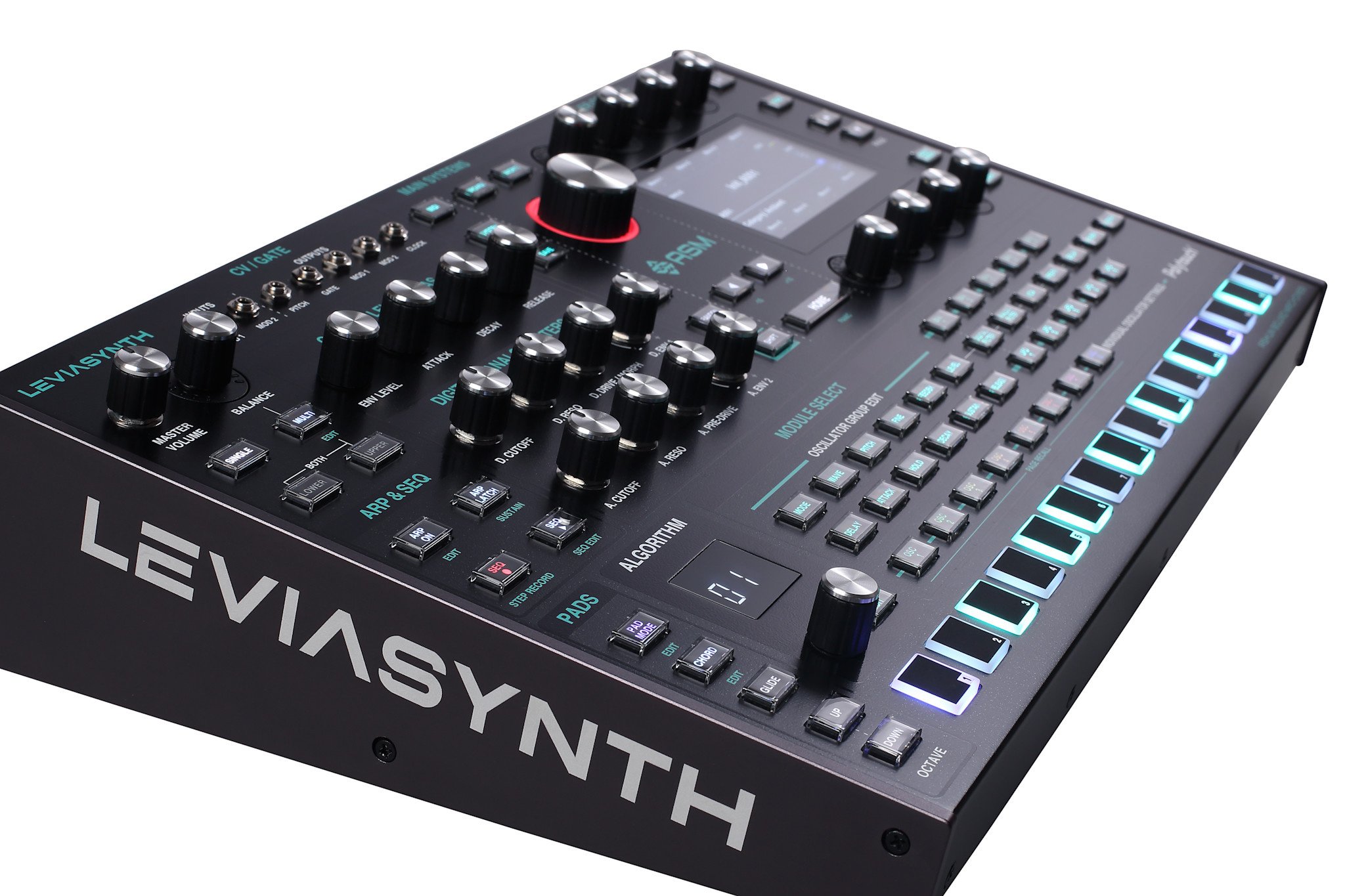

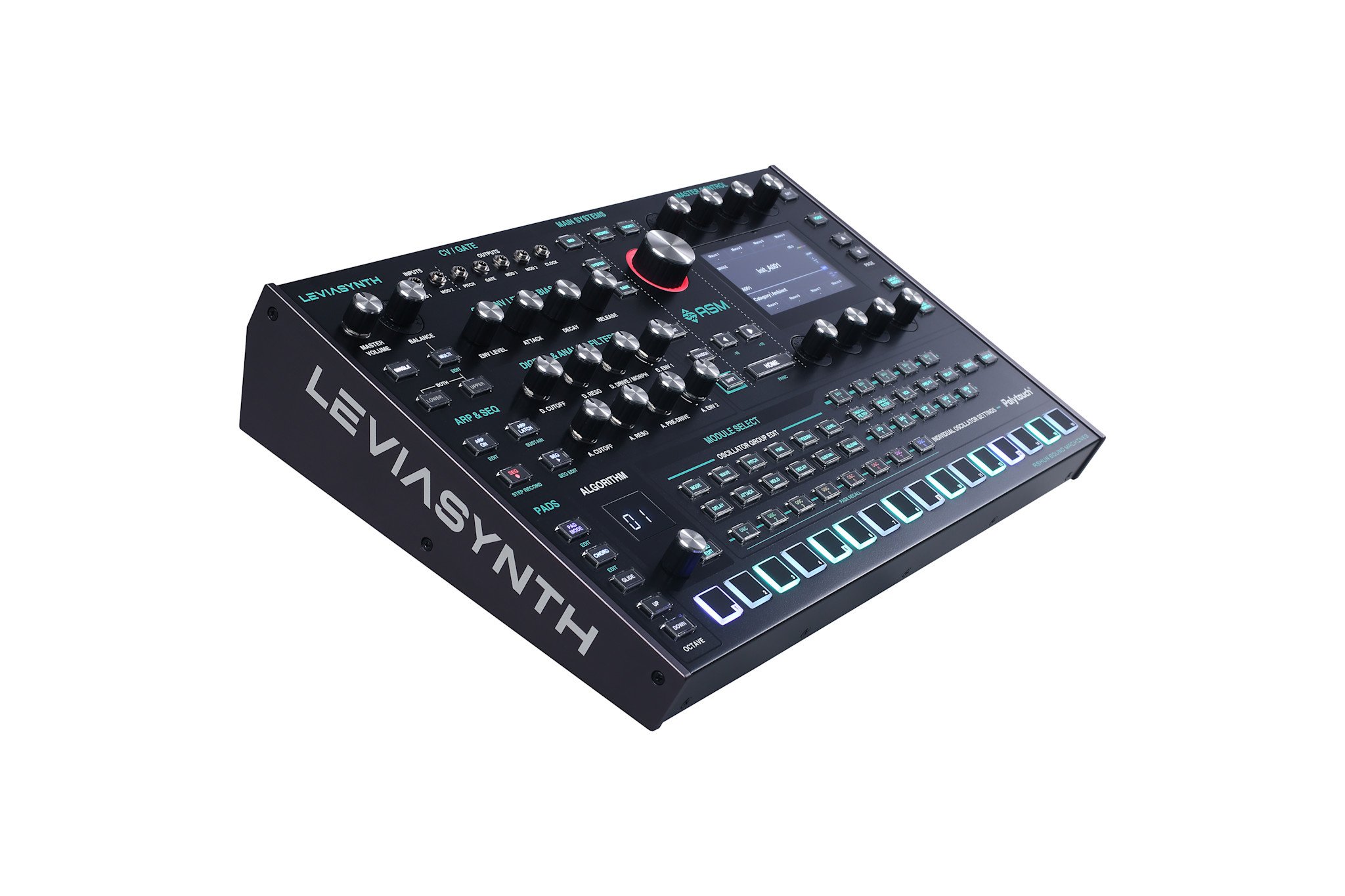

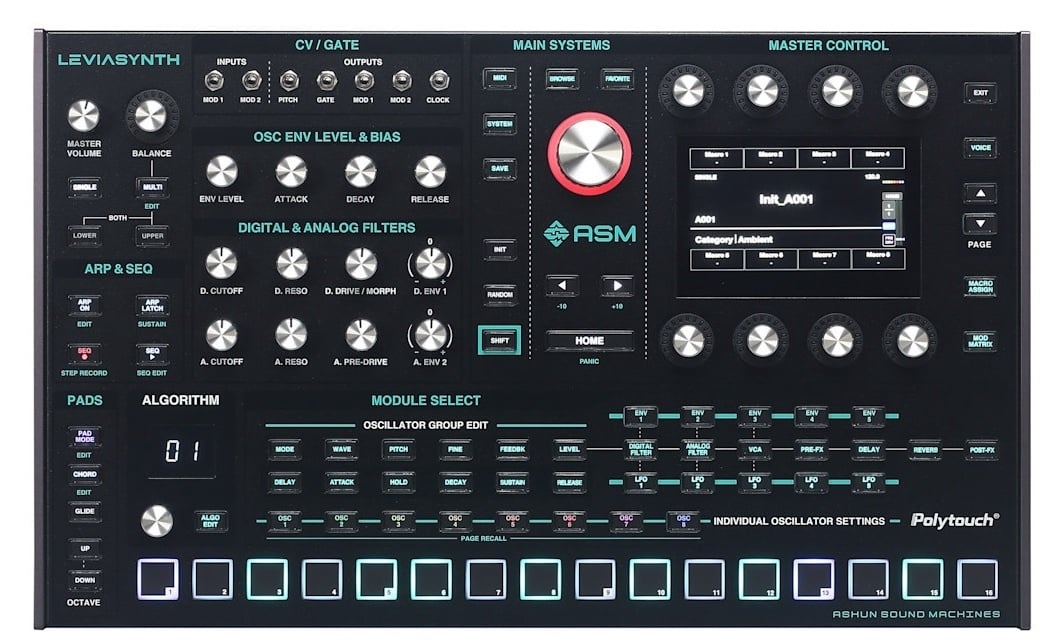

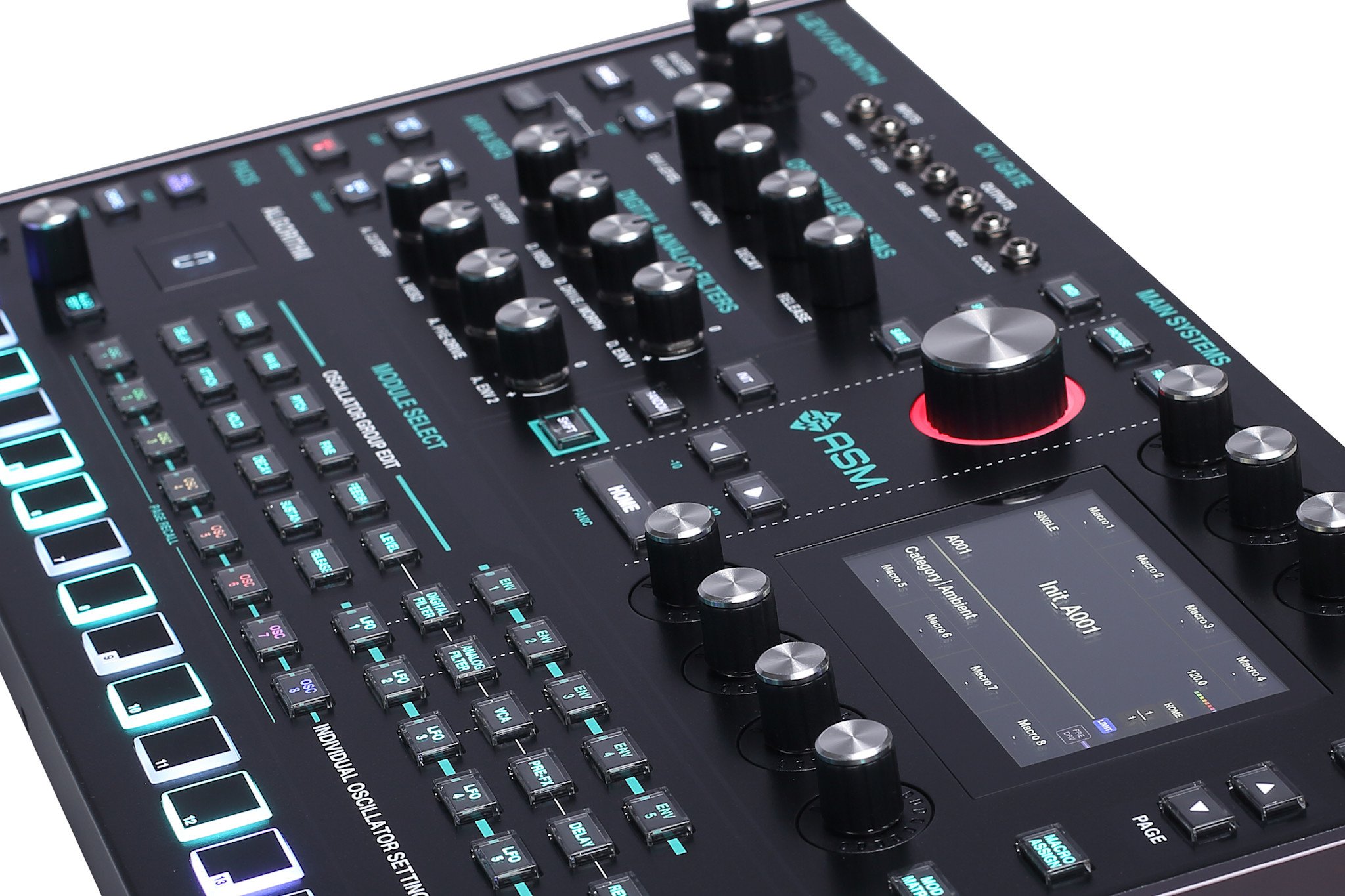

The Leviasynth Desktop is a new hybrid algorithmic synthesizer from ASM. Offering 16 voices with 8 oscillators per voice and a combination of analog and digital filters, the Leviasynth is truly a sound designer's dream synthesizer. The multi-color touch screen and intuitive user interface make patch programming a breeze. The oscillators can be arranged in groups known as algorithms, which define how they affect each other. There are 144 preset algorithms available, and one additional algorithm can also be customized per patch. In addition, algorithm morph offers a nearly unlimited number of configurations for the oscillators. There are over 300 waveforms available for each oscillator, and 7 independent oscillator modes for maximum timbral diversity. The 3-track sequencer records both note and macro automation, and the arpeggiator features a new Entropy function for advanced realtime note manipulation. The 16 Polytouch® pads offer an unsurpassed playing experience, with polyphonic aftertouch and velocity sensitivity. Leviasynth is also MPE-compatible. Single mode allows for all 16 voices to be active per patch, and Multi mode allocates the voices into two parts of 8 voices each, where layers or splits are easily set up. The free ASM Patch Manager for Mac and PC enables easy firmware updating and patch management. 512 Single mode and 256 Multi mode patches are included in the factory presets, all created by world-class sound designers. A total of 1024 patch locations for Single mode and 640 patch locations for Multi mode are available. Oscillator configurations include Phase Modulation, Frequency Modulation, Pulse Width Modulation, HTE Sync, and three types of Phase Distortion. Each of the 8 oscillators has its own volume envelope, in addition to the shared 5 envelopes and 5 LFOs, all freely routable in the powerful 32-slot modulation matrix. The digital Hydrasynth-style multimode filter and the analog low-pass filter, featuring both pre-drive saturation and self-oscillation, together with two insert effects and two master effects, make for near-infinite tone-shaping possibilities.

Specifications:

Type: Hybrid Synthesizer
Sound Engine Type: Algorithmic
Analog/Digital: Digital and Analog
Number of Pads: 16
Type of Pads: ASM Polytouch® Polyphonic Aftertouch Pads, On/Off Velocity-sensitive
Polyphony: 16 voices (Full/Layer/Split)
Number of Patches: 1024 Single mode patches, 640 Multi mode patches
Oscillators: 8 x oscillators (over 300 waveforms)
Algorithms: 144 preset, user-customizable per patch
LFOs: 5 per voice (Sine, Triangle, Saw Up, Saw Down, Square, Pulse27%, Pulse13%, S&H, Noise, Random, Step), Tempo syncable, Semitone Lock
Envelopes: 1 per oscillator plus 5 per voice, Tempo syncable, up to 4 variable trigger sources
Analog Filter: 4-pole Low Pass (24 dB/octave)
Digital Filter: 18 types (LP-BP-HP, LP-NO-HP, LP Ldr12, LPLdr24, LP Fat12, LP Fat24, LP Gate, LP MS20, HP MS20, LP 3-Ler, BP 3-Ler, HP 3-Ler, LP Stn12, BP Stn12, HP Stn12, LP 1 Pole, LP 8 Pole, Vowel)
Effects: 9 Insert Effects, 5 Delays, 4 Reverbs
Effects Types: Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor, Distortion, Delay, Reverb
Arpeggiator: 9 modes (Up, Down, Up&Down, Up/Down, Order, Random, RandOnce, Chord, Phrase), plus 9 variables (Entropy, Octave Mode/Range, Gate, Length, Swing, Ratchet, Chance, Step Offset)
Other: Mod Matrix (32 slots), Macro Controllers (8), Favorites (unlimited), Randomizer (two variable types), MPE compatibility, Microtuning

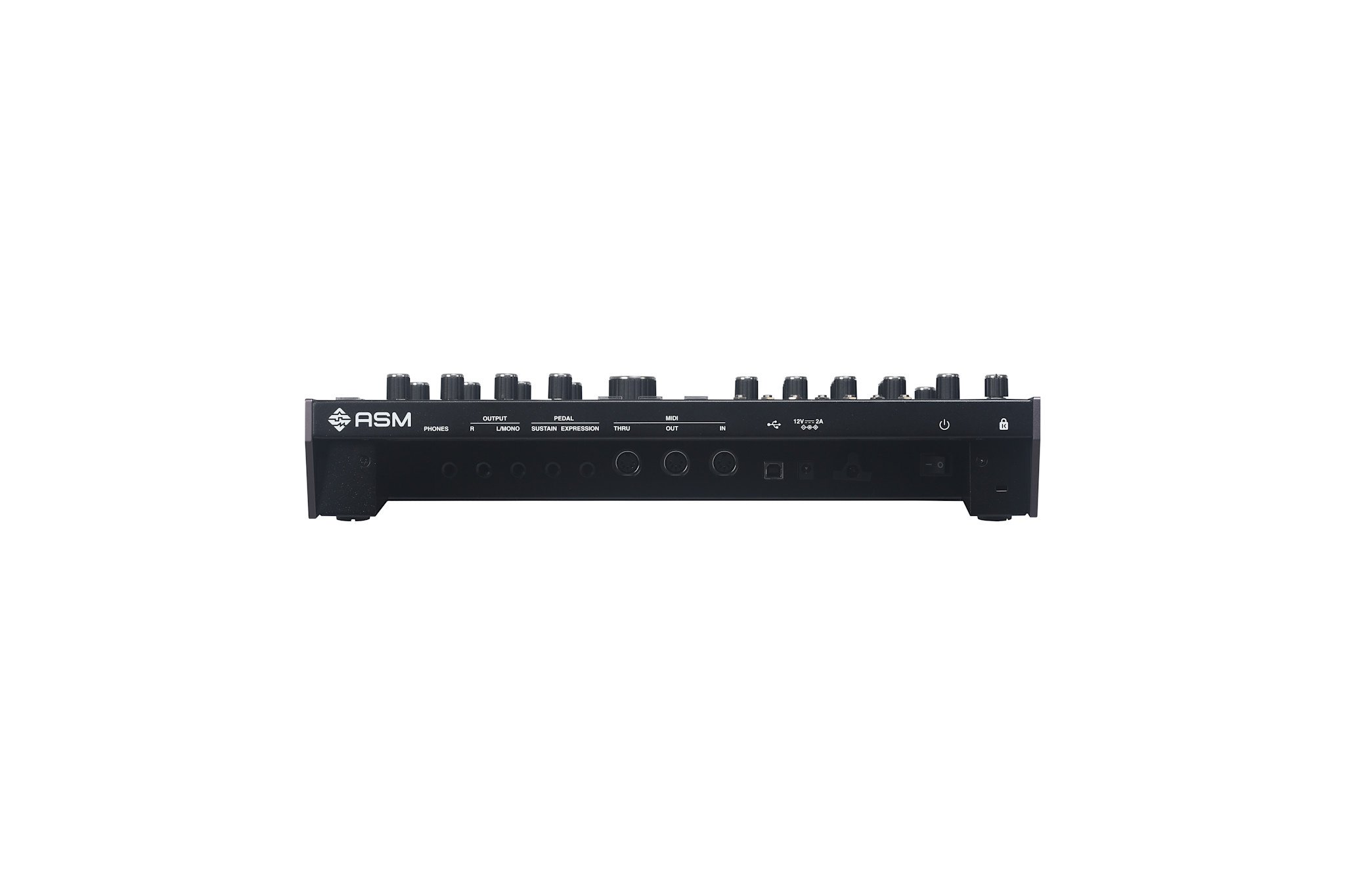

Audio Outputs: 2 x 1/4" Balanced (L/Mono, R)
Headphones: 1 x 1/4"
USB: 1 x Type B
MIDI I/O: In/Out/Thru
Pedal Inputs: 2 x 1/4" (expression, sustain)
Other I/O: 2 x 1/8" Inputs (Mod 1, Mod 2), 5 x 1/8" Outputs (CV, Gate, Mod 1, Mod 2, Clock)
Power Supply: 12V 2A DC switchable power supply
Height: 3.6" / 9.15cm
Width: 17.4" / 44.2cm
Depth: 10.51" / 26.7cm
Weight: 10.47bs / 4.75kg
