Tiptop Audio

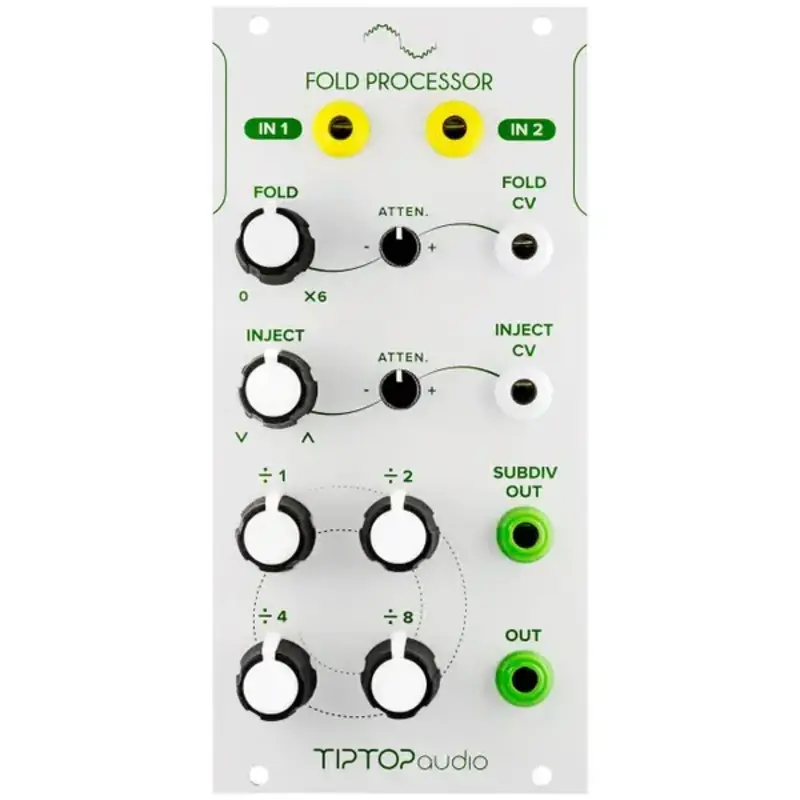

Fold Processor, USED

$140.00
Available Immediately
Product number: CV3684



Voltage Controlled Wave Multiplier & Sub-Octave Generator

  • +12V 60mA
    -12V 55mA
    +5V 0mA
    Width 12HP
    Depth 31mm

Description

Voltage Controlled Wave Multiplier & Sub-Octave Generator

The Fold Processor is a voltage controlled wave multiplier and sub-octave generator. The circuit is based on a classic diode design that adds odd harmonics by folding the incoming signal, followed by subdivided square waves.

The wave folder creates new waveforms from the standard sine, triangle, sawtooth and square waves, has a dedicated output jack and CV input with an attenuator making it very easy to create beautifully animated folding sounds. Adjustable voltage controlled Inject alters the bias point creating an even wider palette of sounds.

The subdivide generator squares the fold output generating 4 more sounds spaced one octave apart, each with its own gain knob and mixed to the Subdivide output jack. Mixing the four can create anything from discordant square wave swarms to sweet harmonic oscillator stacks, from a stable square version of the folded wave to freaky PLL like glitched slides.

The fold processor works with pure waveforms in its classic use, meaning waveforms from a VCO or a self oscillating filters, but when complex sounds like samples from ONE or drums are input, the Fold processor can be used as an analog distortion inside the modular. This is a distortion effect for modular signals similar to how guitar pedals are used for string signals.
