1010 Music

BlueBox Module

$699.00
Out of stock
Product number: CV4671



Digital Eurorack Mixer

  • +12V 320mA
    -12V 82mA
    +5V 500mA
    Width 30HP
    Depth 26mm

Description

Digital Eurorack Mixer

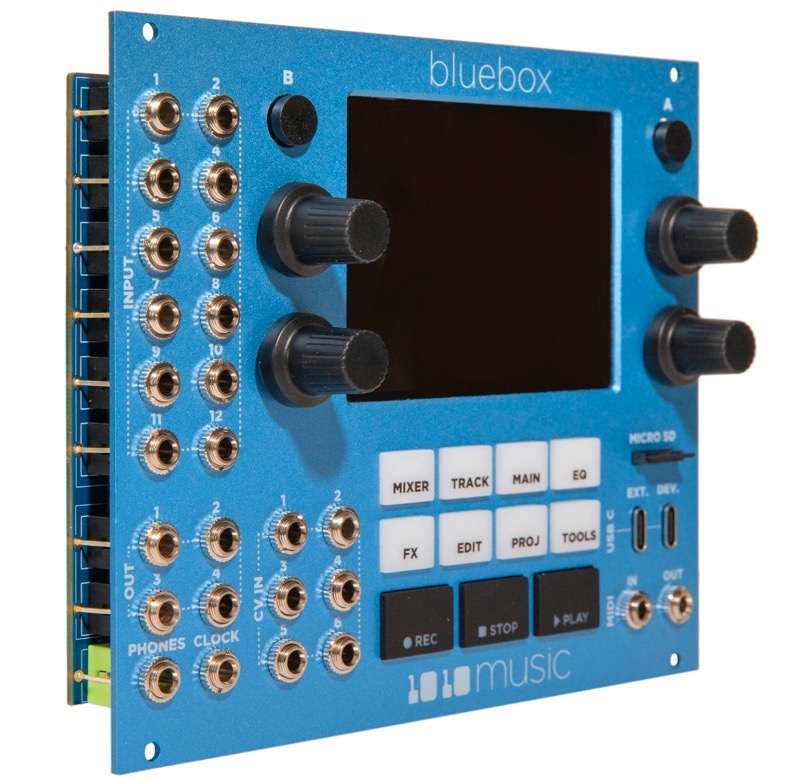

The bluebox Eurorack edition is the new Eurorack mixer with effects and multichannel recording/playback based on the award-winning bluebox desktop mixer. With the Eurorack edition’s USB-C EXT port, you can send 2 channels of audio to and from your computer. Plus, you can control up to 6 mix settings with the 6 CV inputs. Whether recording your Eurorack jams, using it to play stems as backing tracks, or a combination of both – bluebox Eurorack edition will rock your rack!

The Ultimate Mixer Meetup for all your Modules!

The bluebox Eurorack edition is the elegant way to get high-quality mixing, effects and integrated recording and playback all in one super-optimized 30 hp form factor. Like all 1010music products, it uses a touchscreen with knobs to let you quickly control volume, gain, 4 band parametric EQ, pan, reverb and delay effects, mute/solo and record/play functions for each track – all with a fast, fluid, intuitive workflow.

Connect your eurorack, sampler, drum machine, and synthesizer outputs to 12 mono, 3.5 mm inputs and map them to 12 mono tracks or 6 stereo tracks – all with independent control for recording and playback. Connect your computer to the USB C port to send and receive two channels of audio.

The bluebox Eurorack edition is the ultimate in compact mixing, effects, recording, and playback for Eurorack. Smack it in your rack and hit the road with a self-contained, electronic music powerhouse!

Top Features

  • Mix 12 mono/6 stereo tracks of live or prerecorded sound.
  • Independently route each track to any combination of outputs:
    • 4 mono / 2 stereo outputs
    • Stereo headphone output
  • 6 CV inputs for modulation and control – clock output
  • TRS MIDI input and output
  • USB-C for external MIDI controllers and MIDI sync/clock
  • USB-C for 2 channel audio
  • microSD to record/play hours of multi-track/stereo music as 48k, 24 bit WAVs and for firmware updates
  • Ability to playback pre-recorded tracks while recording new ones
  • Master control of the same mixer parameter across multiple tracks for faster mixes
  • Touchscreen gestures and knobs to quickly and easily tweak parameters
  • Four band EQ per track with Cut/Shelf/Parametric settings for each band
  • Great Reverb and Delay effects with independent sends for each track
  • A built-in global compressor to maximize loudness and glue your mix together
  • Save and recall Project settings including all parameters for tracks, outputs, EQ and effects
  • PLEASE NOTE: This module requires two power ribbon connections
