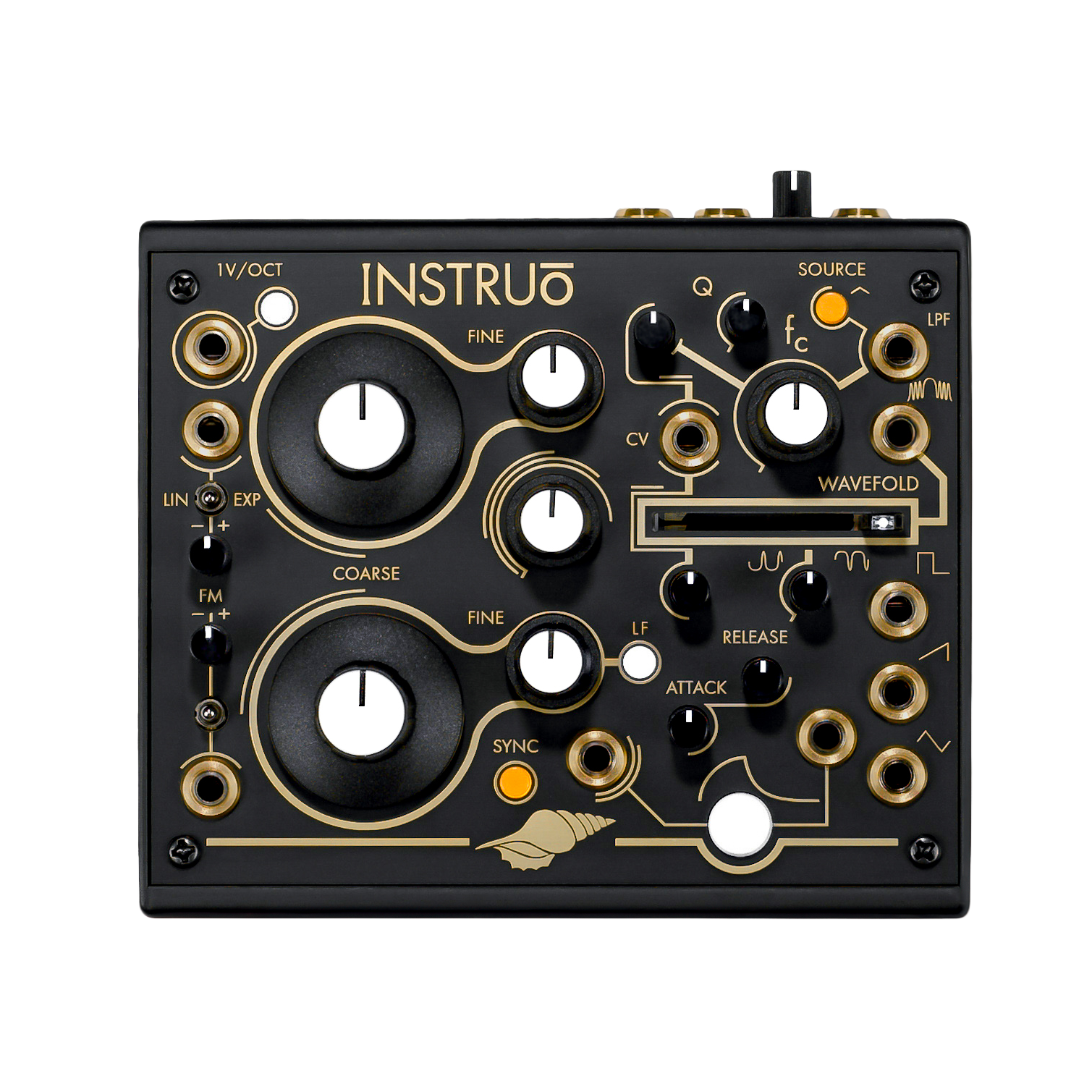

Hybrid Desktop Synthesizer

Seashell is a compact semi-modular synthesiser system, pairing hands-on hardware with expansive control and configuration through dedicated software. Seashell offers seamless integration of Instruō hardware into existing workflows for professional sound design, music production, and live performance.

Hardware Features

• Two sawtooth core analogue VCOs
• Analogue voltage controlled wavefolder
• Resonant voltage controlled Low-Pass Filter
• Internal waveform routing to Filter and Wavefolder inputs
• Parallel modular level outputs
• Internal analogue cross FM modulation bus
• CV inputs for self patching and external modulation

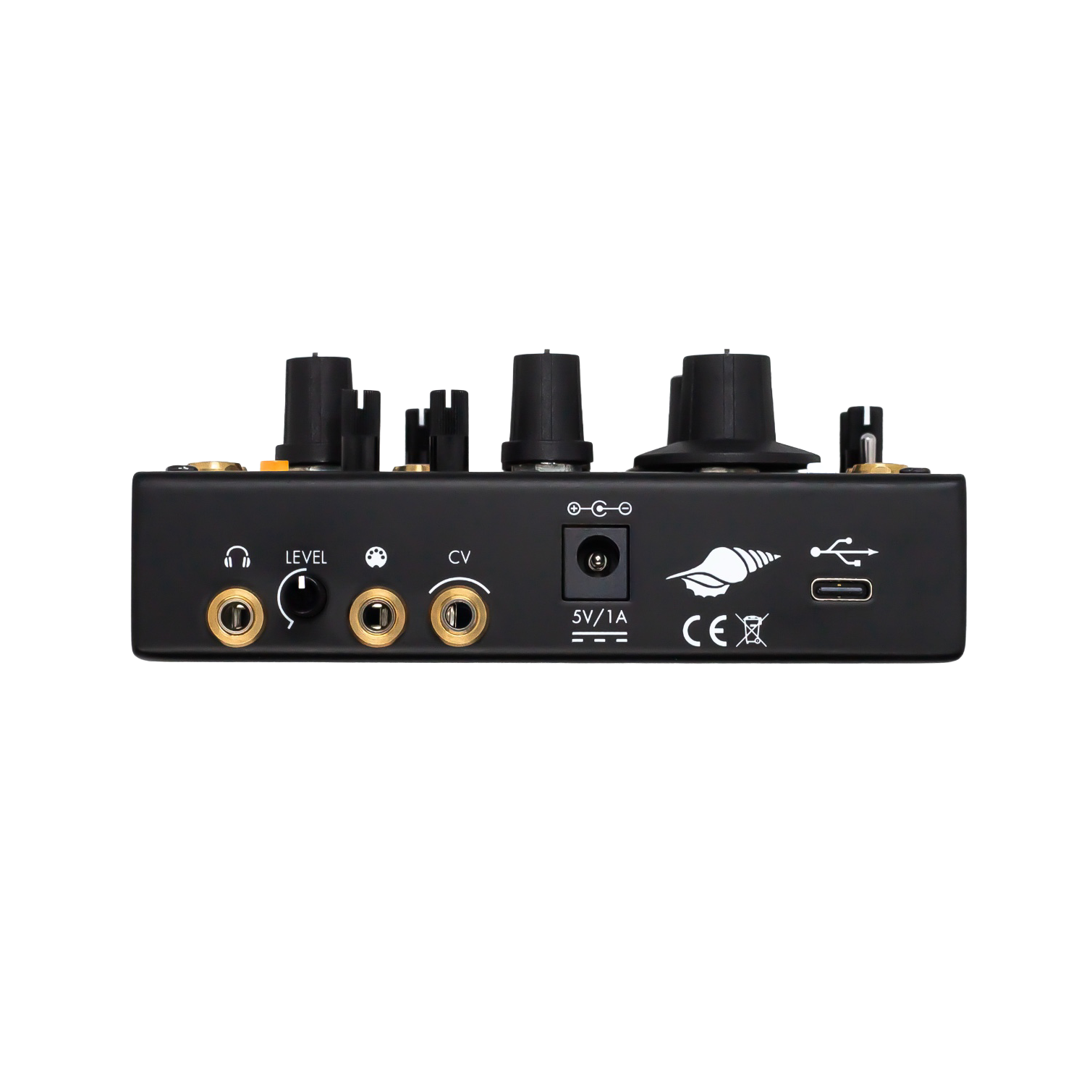

• Stereo Line/Headphone output driver
• On-board DSP effects
• TRS MIDI input
• User-definable external CV input and output
• USB (type C) connectivity for audio/MIDI integration to DAW

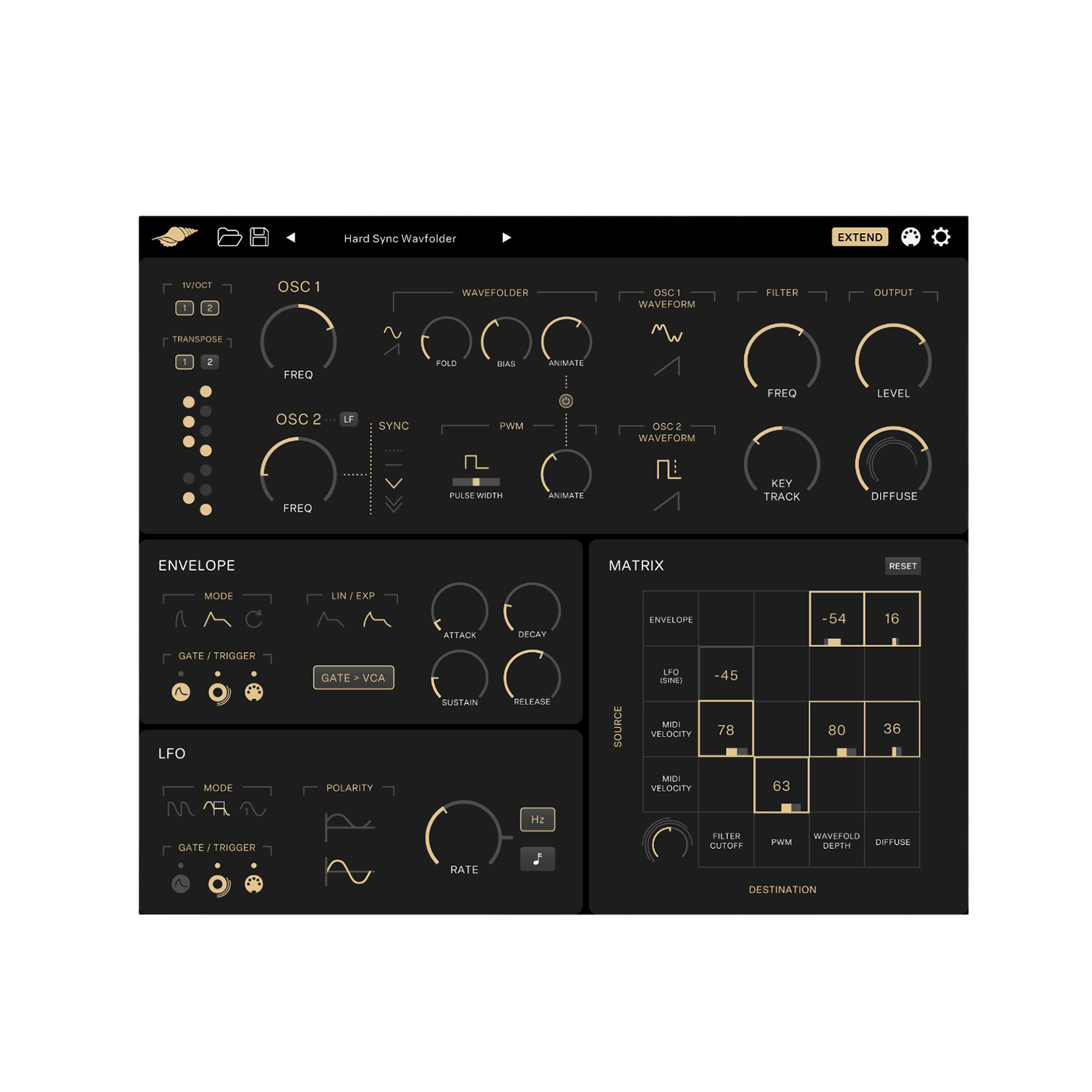

Software Controllable Features

• VST3/Software control interface expansion
• High resolution (14Bit) digital control over analogue circuitry
• Customisable scale transposition engine
• Total recall of digital controlled analogue parameters
• Internal LFO modulation sources
• Multi-function envelope generator
• Stereo diffusion effect
• 4x4 modulation matrix mixer with hardware macro control
• MIDI learn functionality

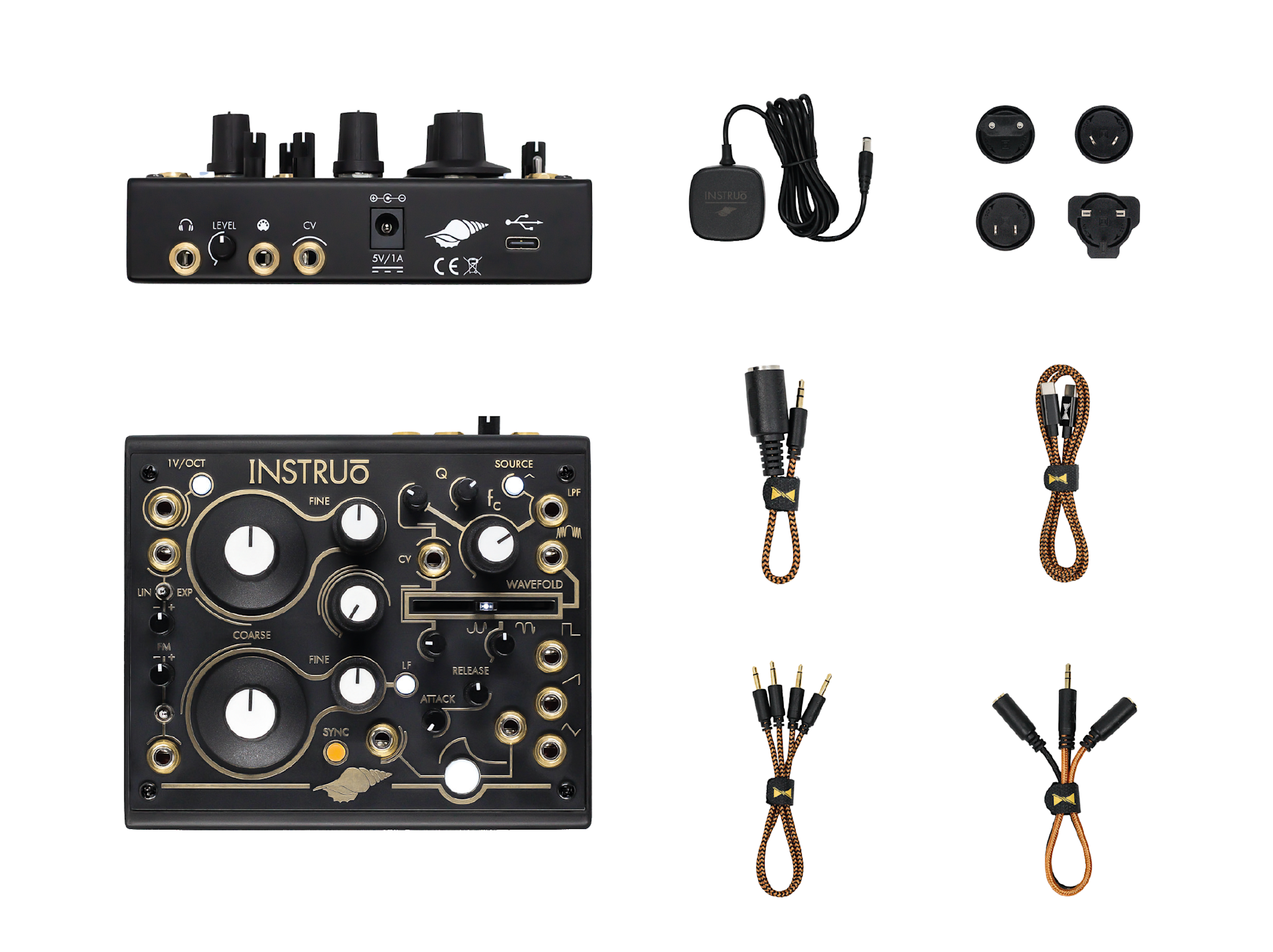

Included

• Multi-region power supply
• USB (type C) Cable
• 3.5mm TRS MIDI to 5pin DIN MIDI cable
• 2 * 3.5mm TS patch cables
• 3.5mm TRS audio to 2 * ¼” TS audio sockets
