Korg

NTS-2 Oscilloscope Kit

$199.00
Available Immediately
Product number: CV4563



Multifunctional Utility Kit

Description

The modern musician's multi-tool

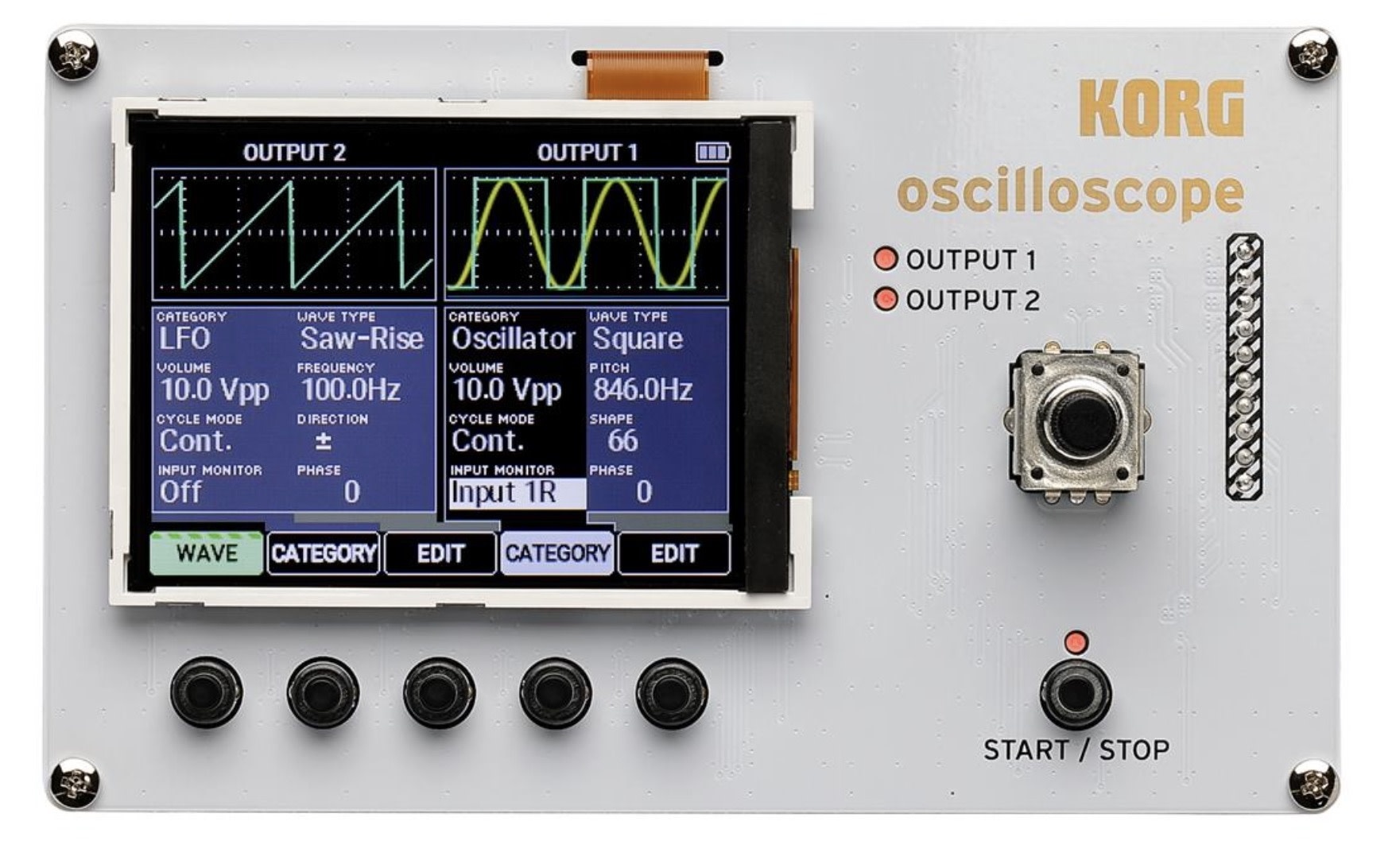

The Nu:Tekt NTS-2 oscilloscope kit is a DIY multifunctional tool for musicians. Building on a 4-channel oscilloscope - monitoring control voltage (CV) and audio signals alike - NTS-2 also packs a flexible waveform generator, a spectrum analyzer, and tuner functionality into a build-it-yourself device which fits in the palm of your hand! Originally released in a bundle with the critically acclaimed “PATCH & TWEAK with KORG”, the NTS-2 is now available  as a stand-alone kit. The NTS-2 is perfect for musicians and creators of all backgrounds and levels of experience navigating their musical journey, providing solid tools and precise references to cultivate your craft.



4 CHANNEL OSCILLOSCOPE

With its dual stereo inputs, you can study up to four signals at once, comparing and overlapping them with ease. A variety of display modes let you see your data in color, a huge advantage over the old oscilloscopes you’ve seen in science fiction movies! Its user interface is clear and quick, thanks to its dedicated menu buttons and clickable encoder knob, and its 240 x 320 pixel 2.8” color LCD is a joy to watch. NTS-2 even has a  powerful Lissajous mode - opening the  door to creativity and making it possible to visualize widely available oscilloscope art, for extra fun with your device.



FFT / SPECTRUM ANALYZER

To further dive into analyzing any signal, the NTS-2 also comes with a dedicated FFT (Fast Fourier Transform) mode with a real-time Spectrum Analyzer. These handy tools have always been out of reach for the synth musician because they either required expensive hardware or a nearby computer. Now you can carry them in your pocket!



DUAL WAVEFORM GENERATOR:

But the NTS-2 is much more than just an oscilloscope. The flexible Wave Generator mode has 2 oscillators with dedicated outputs, so you can test your synth rig or just get creative! Each oscillator can create a variety of waveforms – sine, square, triangle, sawtooth, pulse, and noise – whose shape and phase can be adjusted to suit many applications.

These sounds can be used in the audio range or as control voltage sources, and they can be set to cycle continuously or act as one-shot impulses; that means you can turn them into LFOs, envelopes, triggers, and control voltage generators, as well as sound sources. Attaching the NTS-2 to any patchable synthesizer instantly expands its power in useful ways, making it an analog synth player’s dream tool.



TUNER

And of course, coming from KORG, this multi-functional utility kit wouldn’t be complete without a precise and easy-to-use Tuner with multiple display modes! Being able to receive and monitor up to 4 input signals at the same time, the NTS-2 is an analog synth player’s dream tool.



Connectivity and ease of use

The NTS-2 offers plenty of ways to connect to your studio, despite its small footprint. Besides its 4-channel input and dual waveform output features, its dual stereo THRU/OUT ports let you leave it wired into your system. It’s much easier to understand what you’re doing if you can see the signals and use them at the same time, rather than constantly plugging and unplugging cables. This handy function lets you maintain your signal flow at all times – even when the NTS-2 has been powered off. Speaking of power, the NTS-2 maximizes portability and flexibility by using either batteries or a USB-C power supply, depending on your needs.



Important Notice:

  • The NTS-2 oscilloscope kit is a stand-alone kit and does not include the “PATCH & TWEAK with KORG” book, nor the exclusive side panels and stickers that were included in the bundle (you can learn more about the “NTS-2 + PATCH & TWEAK with KORG” Bundle here). If you are looking for the NTS-2 Book Bundle, see the Korg NTS-2 Oscilloscope Kit + Patch & Tweak w/ Korg product here
