+12V | 30mA |
---|---|
-12V | 25mA |
+5V | 0mA |
Width | 8HP |
Depth | 14mm |

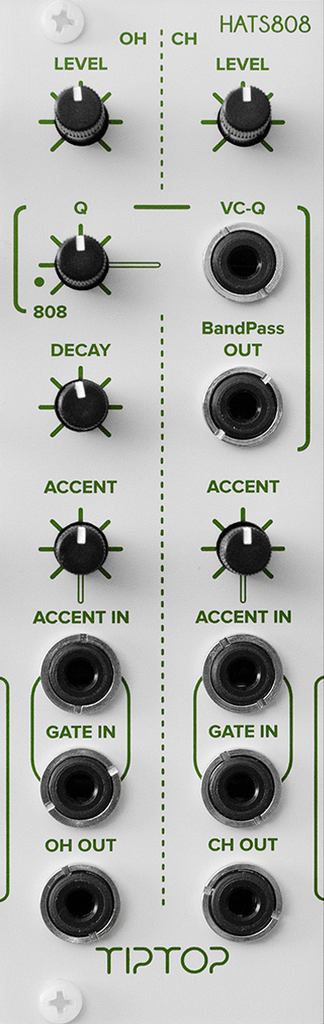

808 HiHats Clone
The HATS808 is the TR-808's real analog closed and open high hat circuits adapted for use in the eurorack modular synthesizer format and tested to sound just like they did back in the 80's. The original "choke" circuitry that makes it sound so dynamic and tight is fully implemented.
Inputs
• Gate In
• Accent In
Outputs
• Open Hat Out
• Closed Hat Out
• Bandpass Out
Controls
• Q
• VC-Q
• 808
• Tone
• Decay
• Accent
In the Box
• The module itself
• Eurorack Power Cable
