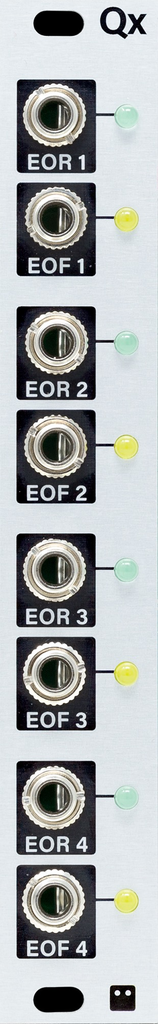

Intellijel Qx

Not yet rated | Create your own review
$ 69.00 Total

Quadrax EOR/EOF Expander

Not Available
Product number:
CV3550

Quadrax EOR/EOF Expander

Open up the gates! Expand the functionality of the Quadrax with eight additional gate/trigger outputs. The Qx expander adds an EOR (End Of Rise) and an EOF (End Of Fall) trigger/gate output to each of Quadrax’s four channels, enabling Quadrax’s envelopes, cycles, bursts and LFOs to trigger external modules. The definition of EOR and EOF vary depending on which mode is assigned to the corresponding Quadrax channel. Please see the manual for a more detailed explanation.

**Requires the Quadrax to function

In the Box
• The module itself
• Eurorack power cable

+12v: 8mA
-12v: 0mA
+5v: 0mA
Width: 4HP
Depth: 22mm
