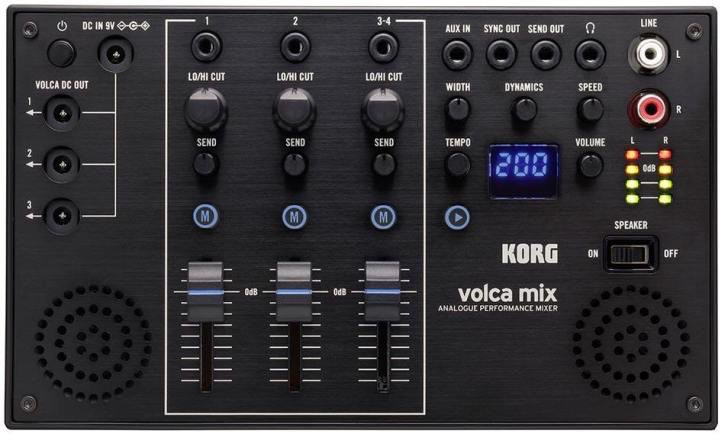

Analogue Performance Mixer

Volca mix is the long-awaited mixer for the volca series. The volca mix is a four-channel analogue performance mixer that lets you construct a live setup combining multiple Volca units. Volume faders are easy to control, plus crisp-sounding LO/HI CUT filters, and a master chain that radically transforms the sound. In addition to the sync function found on all volcas, there are also DC output connectors that can supply power for up to three volca units. Numerous functions to facilitate your on-stage volca performances have been packed into a high-quality aluminum-paneled body, reminiscent of a high-end DJ mixer. The volca mix will unlock the maximum potential of the volca series.

The output section provides RCA stereo line outputs to ensure stable connection. There's a master volume with LED VU meter for adjusting the output level, as well as a headphone output that can be used simultaneously with the line output, providing a reliable monitoring environment on stage. Speakers are also built-in for excellent portability. The stereo speakers are placed at both sides of the front, and while compact, deliver SPL levels that are even greater than the built-in speakers on previous volca units.

Features
• Four channel analogue mixer
• Lo/Hi Cut, Send Level, Mute, Volume (Available to boost +6 dB gain)
• Four channels analogue mix bus, monaural mix send bus, stereo AUX In/Return bus
• Analog Stereo Width Expander (Width), Analog Dynamic Range Compressor (Dynamics, Speed)
• Play, Tempo Sync Controls
• Mixer In x 3 (1/8" [3.5 mm] stereo mini jack, 0dBu)
• AUX In (1/8" [3.5 mm] stereo mini jack, 0dBu)
• Send Out (1/8" [3.5 mm] stereo mini jack, 0dBu)
• Sync Out (1/8" [3.5 mm] stereo mini jack, Output Level: 5 V)Audio Output:
• LINE OUT (L/R, RCA pin jack, Max 11.1 dBu) Headphone (1/8" [3.5 mm] stereo mini jack)
• Built-in stereo speakers, On/Off
• AC adapter (DC 9 V) 300 mA

Physical Specifications
• Dimensions: 193 mm x 115 mm x 45 mm/7.60" x 4.53" x 1.77" (including knobs)

In the Box
• The mixer itself
• AC adapter, DC-DC cable x 3, Audio cable x 3
