MDLR

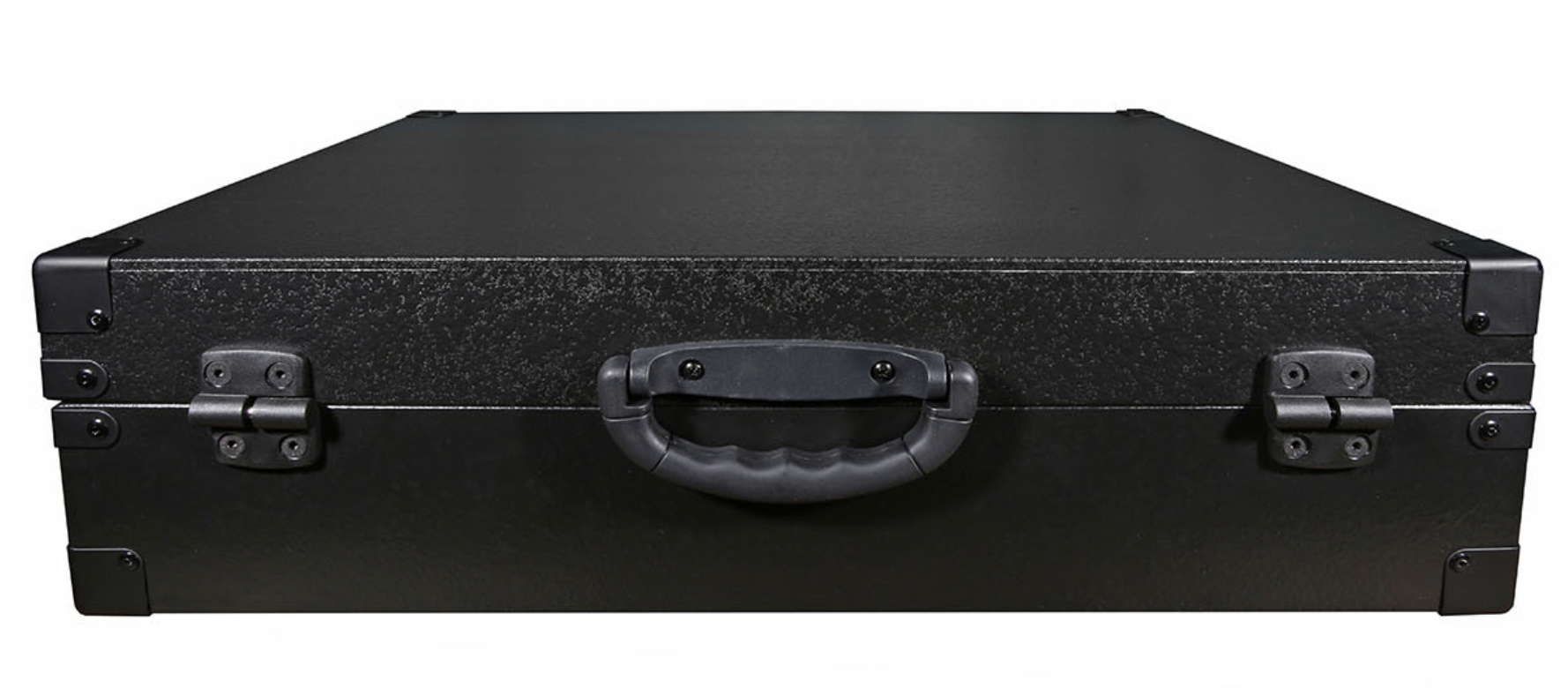

12U/126HP Square Series Eurorack Case, USED

$1,200.00

Available Immediately

Product number: CV5751

Hybrid (Studio/Travel) Eurorack Case

Rows	4-row
Width	126HP
Total Usable HP	504HP
Power	4000mA @+12V, 2500mA @-12V, 1500mA @+5V; 86 connectors
Lid	Yes, patchable while closed
Internal Depth	75mm
External Dimensions	33" × 26" × 12"
Screws	M3, 30x included
Screw Fixation	Threaded strip
Scalable	No

Description

This professional handmade 12U / 126HP Square Series Eurorack modular synthesizer case is the perfect solution for those artists who like to have a big case in their studio, but also can take the case with them for a rehearsal or a gig when needed. The new Square Series case is what MDLR calls a “hybrid” between a studio case and a portable solution.

Technical specifications:

Flush-mounted rails allow the modules to be mounted flush with the side
The lid allows carrying the case fully patched
Lid can be attached to the case when performing, providing an excellent play height
4 x 3U rows of 126HP rails with M3 threaded inserts
126HP:Total of 504HP module space
1 x MDLR PWR 85W powered busboard (40 power headers)
- Total output:
- +12V 4A
- -12V 2.5A
- 5V 1.5A
1x MDLRCASE extension board (14 extra power headers)
2 x MDLRCASE Passive busboard (40 power headers)
1x side-mounted power switch + power inlet
1x 1.8m power cord
1 x Meanwell power adapter included
High-quality Penn Elcom components
Super-comfortable Luxe carrying handle
Anti-slip rubber feet
Completely assembled, wired, tested, and ready to play!

Weight 14.5 kg

Dimensions 33" × 26" × 12"
