Pittsburgh Modular

Structure EP-208

Out of stock
Product number: CV2033

Serious 208HP Powered Portable Case

  • Rows 2-row
    Width 104HP
    Total Usable HP 208HP
    Power 4A @+12V, 3A @-12V, 2A @+5V; 30 connectors
    Lid Yes, not patchable while closed
    Internal Depth 70mm-108mm
    External Dimensions 22" x 12.25" x 5.5" (22" x 12.25" x 9.25" with lid)
    Screws 4-40, 80x (black) Included
    Screw Fixation Sliding nuts
    Scalable No

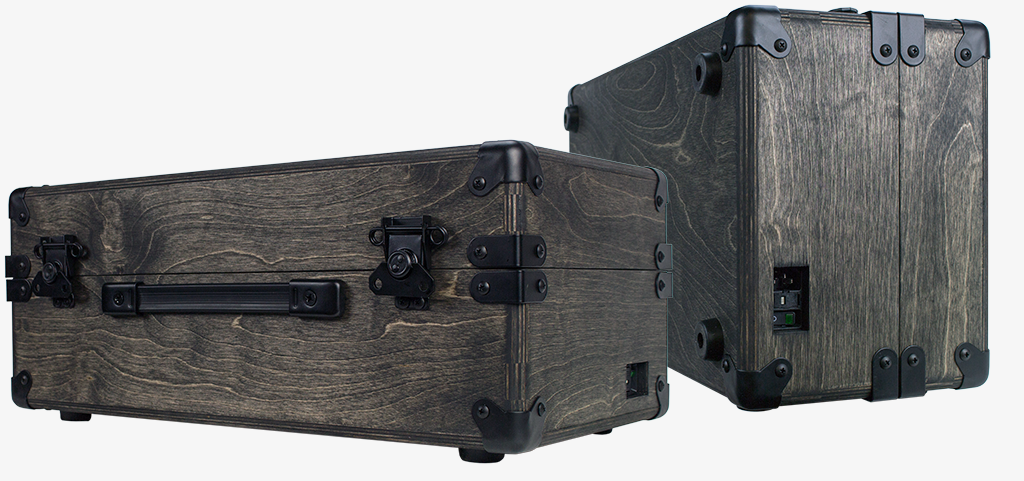

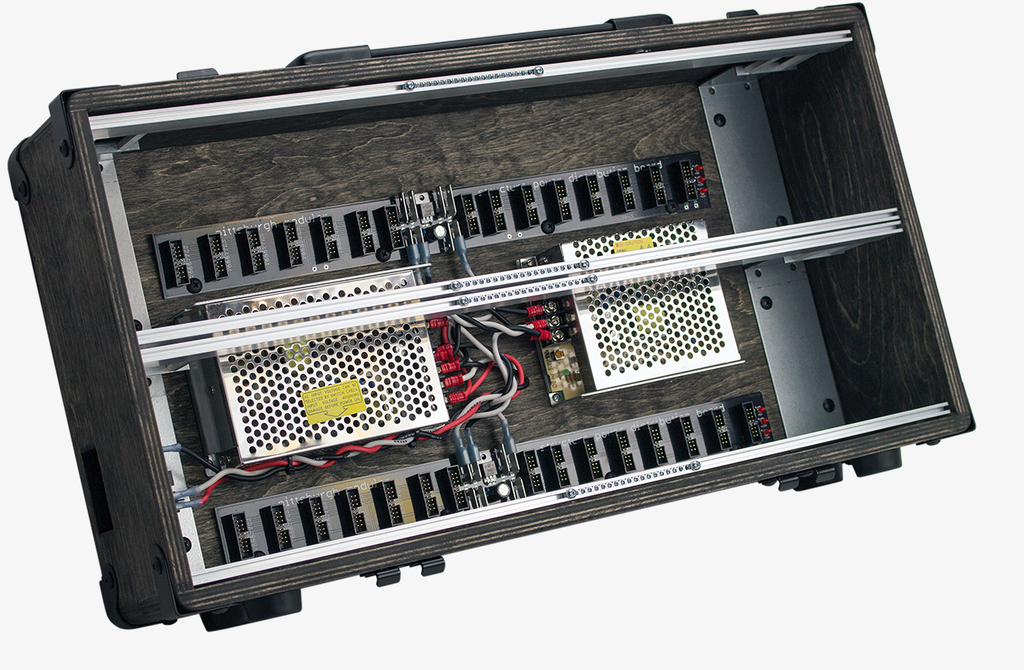

A serious double row, 208hp powered eurorack travel case with lid. Includes a heavy duty, internal power supply designed to exceed the needs of the most demanding analog and digital eurorack systems.

• 4 amps of Clean +12
• 3 amps of Clean -12
• 2 amps of Clean +5v
• 30 Keyed Eurorack Power Headers
• Fused Power Protection

• Hardwood and Steel Construction
• Two 104hp Rows for 208hp
• Removable Lid, Lid Fits Over Fully Patched System (No need to remove patch cables)
• 20 Smooth Sliding Square Nuts Per Rail (Holds up to 40 modules)
• Includes 80 Black (Size 4-40 1/4") Module Mounting Screws
• Beautifully Hand-Stained Hardwood. Matching Black Steel Hardware Set

• External Depth with lid:9 1/4”
• External Depth without Lid: 5 1/2”
• External Height: 12 1/4”, External Width: 22”
• Internal Depth Above Power Supply: 2 3/4”
• Internal Depth Above Bus Board: 3 3/4”
• Internal Depth Above Nothing: 4 1/4”
• Empty Weight: 18 lbs
