Pittsburgh Modular

Structure EP-360

$1,199.00
Out of stock
Product number: CV2034



Huge Pro Case w/ Lid

  • Rows 3-row
    Width 120HP
    Total Usable HP 360HP
    Power 6A @+12V, 6A @-12V, 5A @+5V; 45 connectors
    Lid Yes, not patchable while closed
    Internal Depth 70mm-108mm
    External Dimensions 25.5" x 17" x 5.5" (25.5" x 17" x 9.25" with lid)
    Screws 4-40, 150 (black) Included
    Screw Fixation Sliding nuts
    Scalable No

Description

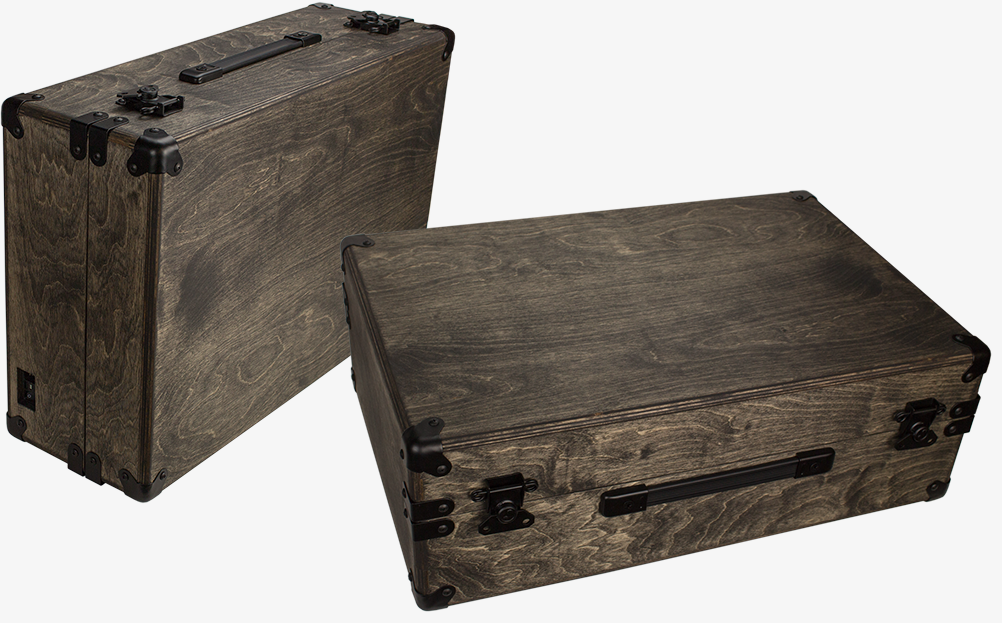

STRUCTURE EP-360

A huge case to house a monster synth. Triple Row, 360hp powered eurorack travel case with lid. Includes a heavy duty, internal power supply designed to exceed the needs of the most demanding analog and digital eurorack systems.

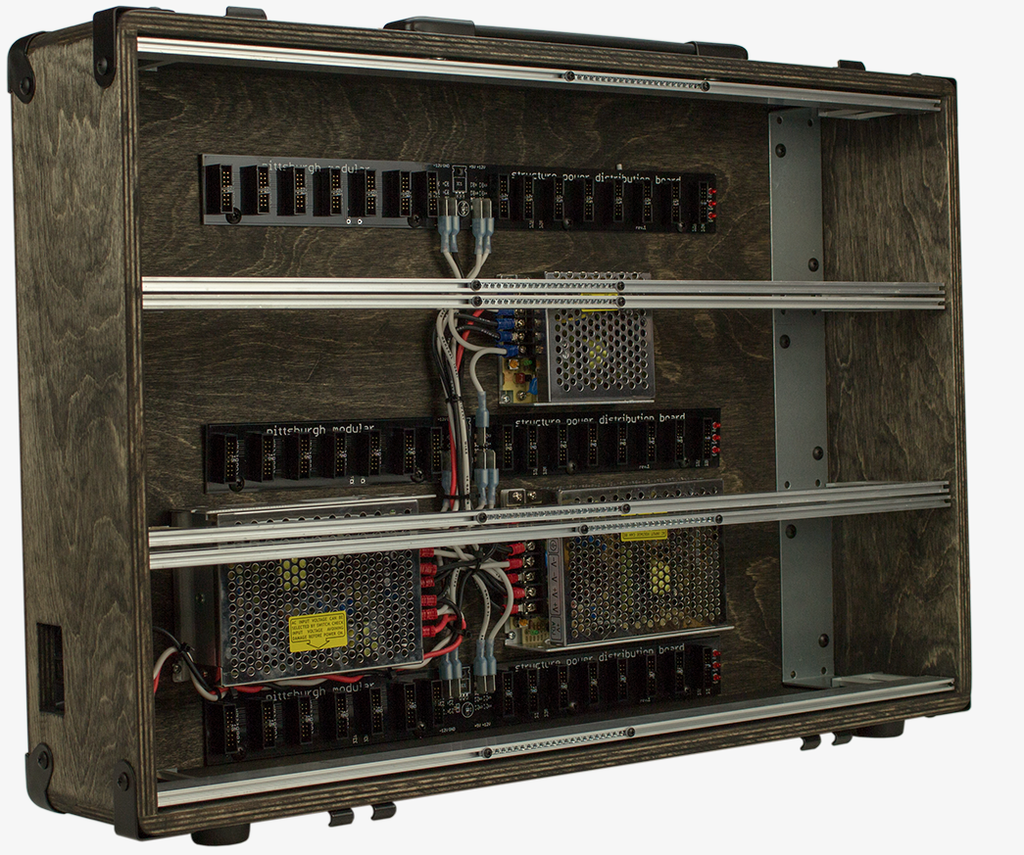

Power
• 6 amps of Clean +12
• 6 amps of Clean -12
• 5 amps of Clean +5v
• 45 Keyed Eurorack Power Headers
• Fused Power Protection

Enclosure
• Hardwood and Steel Construction
• Three 120hp Rows, 360hp
• Removable Lid, Lid Fits Over Fully Patched System (No need to remove patch cables)
• 24 Smooth Sliding Square Nuts Per Rail (Holds up to 72 modules)
• Includes 150 Black (Size 4-40 1/4") Module Mounting Screws
• Beautifully Hand-Stained Hardwood. Matching Black Steel Hardware Set

Dimensions
• External Depth with lid:9 1/4”
• External Depth without Lid: 5 1/2”
• External Height: 17”, External Width: 25 1/2”
• Internal Depth Above Power Supply: 2 3/4”
• Internal Depth Above Bus Board: 3 3/4”
• Internal Depth Above Nothing: 4 1/4”
• Empty Weight: 27 lbs
