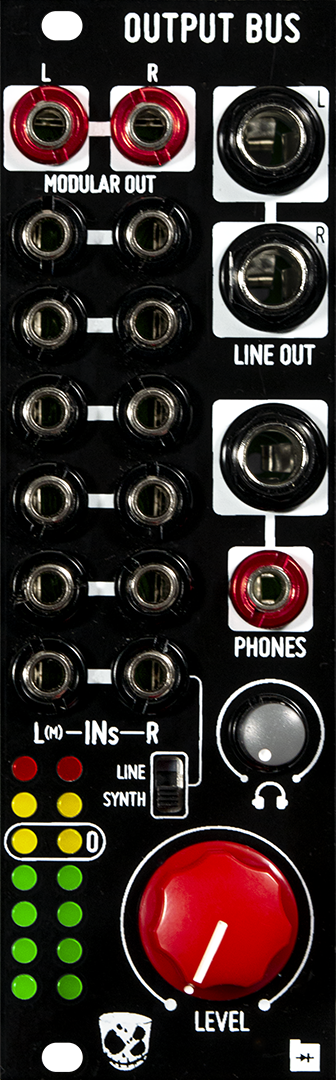

Output Bus

Available Immediately
Product number: CV4779

Ultimate Output Module

  • +12V 70mA
    -12V 68mA
    +5V 0mA
    Width 8HP
    Depth 30mm


Ultimate Output Module

Inspired by pro audio and studio summing units the Output Bus allows for summing style mixing, external gear integration, soft clip limiting, flexible output types, headphone monitoring and level visualization.

The module works great mixing all your other mixers in your setup, to return mono or stereo FX into the master bus and for bringing in external stereo line level gear with ease. All of this in just 8HP while also being able to visualize your final levels, output appropriate signals on the right cable type and monitor in headphones.


  • 6x stereo inputs
  • Line/synth selector in input six
  • Modular level 3.5mm output
  • 1/4" output
  • 3.5mm and 1/4" headphones outputs
  • LED VU-meter
  • Soft clipping circuit at main output
