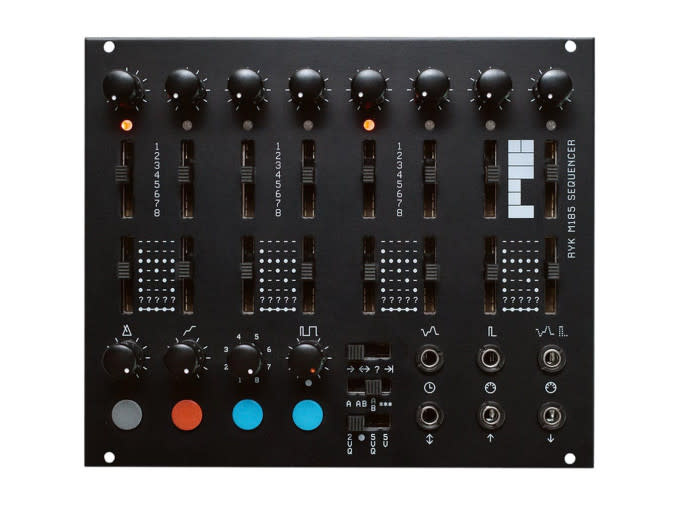

Intuitive & Playable Eurorack Sequencer

It appeals as a hands-on performance orientated module for easy creation of complex melodic sequences.

It is the original multi-step-per-stage sequencer that inspired the Metropolis and Metropolix modules.

• Features an expansion header for chaining two M185s for 16 stage sequences
• Lots more quantisation scales
• Live X0X style Gate Pattern programming

OVERVIEW

• 8 unique gate modes for creative rhythmic possibilities
• A/B split mode for two separate sequences, like having two sequencers in one box
• 2 channels of CV/GATE and MIDI I/O
• 15 Quantize scales OR pure analogue microtonal CV output

INPUTS & OUTPUTS

• 2 channels of CV and Gate outputs
• Expansion header to connect two M185s for 16 stage sequences
• Reset input [ shared with MIDI input ]
• Sync output [ shared with CH2 gate ]
• Bidirectional Clock I/O
• MIDI input for MIDI clock in, MIDI note transpose
• MIDI output for MIDI clock out, MIDI note output

STAGE DETAILS

• 8 stages, each with individual 1-8 step repeats per stage
• 8 gate modes per stage [ Off, Once, All, 1/2, 1/3, 1/4, Probability or Programmable, and Long ]
• Programmable gate patterns for 'on the fly' X0X style programming of gate triggers

EVEN MORE DETAILS !

• AB serial split sequence mode with 1-8 sequence repeats for AAABAAAB sequence structures
• AB parallel split mode, for two separate simultaneous sequences that play at the same time
• Root note offset and reset trigger options from sequence B to A
• 2.5V / 5V voltage range selectable
• MIDI note output including programmable velocity
• MIDI to CV converter mode [wow]
• Programmable glide per stage
• Easy user upgradable firmware using MIDI sysex files
