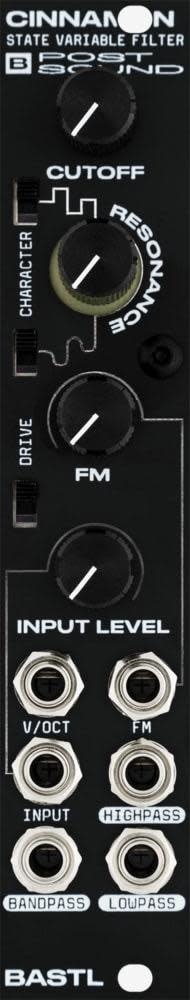

State Variable Filter
+12V | 30mA |
---|---|
-12V | 30mA |
+5V | 0mA |
Width | 5HP |
Depth | 35mm |
State Variable Filter
Cinnamon is a very unique sounding filter. The presence of drive and character switches makes it a multi-flavoured spice for your sound !
Features
• voltage controlled cutoff frequency
• CV input with attenuator
• volt per octave CV input
• audio input with gain control
• drive switch to overdrive the input of the filter • low pass output (12db/oct - 2-pole)
• band pass output (6db/oct - 1-pole)
• high pass output (12db/oct - 2-pole)
• resonance control
• character switches to change the resonance response (character switches might break V/Oct tracking)
• with maxed resonance works as an oscillator (0°,90° and 180° phased sinewave at LP,BP and HP outputs)
• character switches change the waveform when self-oscillating and might also break the V/Oct tracking
In the Box
• The module itself
• Eurorack Power Cable
